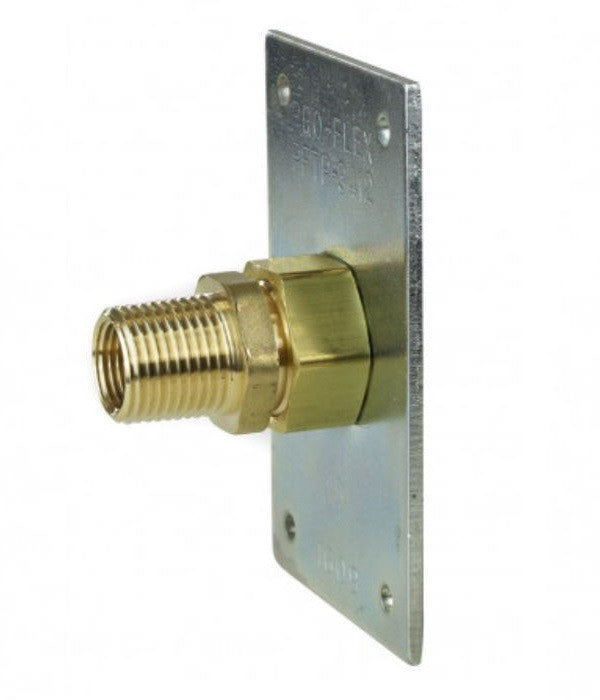

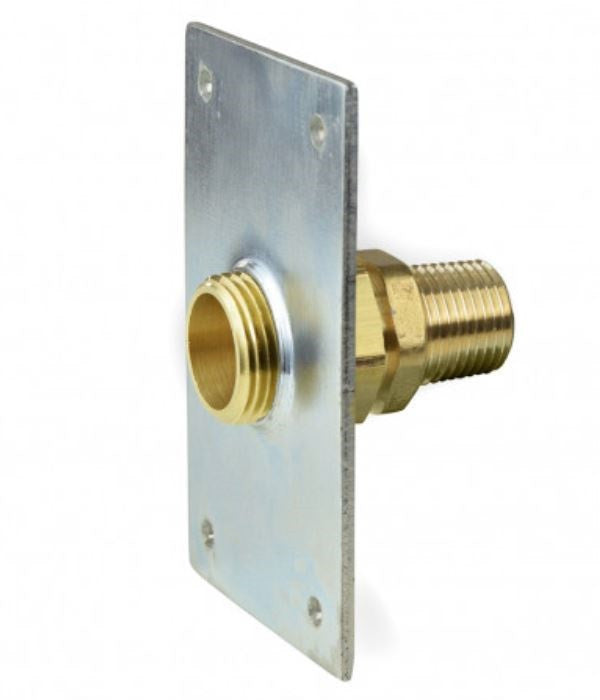

Pro Flex PFST-12 1/2in Termination Plate CSST Male Adapter

Pro Flex PFST-12 1/2in Termination Plate CSST Male Adapter

$17.41 USD
$17.41 USD
Sale Sold out

Pro-Flex PFST-12 1/2in Termination Plate 1/2MIP 3/8FIP CSST Male Adapter Fitting

This plate facilitates termination of a 1/2" CSST gas line and provides means of transition to 1/2" female threaded (FIP) gas valve, fitting or appliance connector. Inner 3/8" FIP connection in the fitting also allows connecting 3/8" MIP pipe nipple or fitting.

Technical Specifications:

  • Connections: 1/2" MIP male threaded (3/8" FIP female threaded inside) x 1/2" CSST
  • Plate dimensions: 2.5" x 4"
  • Fitting materials: C36000 brass body, 304 st. steel retainer & slide rings, silicone O-ring, proprietary high-temperature gasket
  • Plate material: 1018 low-carbon steel
  • Max. operating pressure: 5 psi
  • CSA listed
