Pro Flex PFST-34 Termination Plate w/ 3/4" MIP (1/2" FIP) x 3/4" CSST Male Adapter Fitting

Pro Flex PFST-34 Termination Plate w/ 3/4" MIP (1/2" FIP) x 3/4" CSST Male Adapter Fitting

$21.96 USD
$21.96 USD
Sale Sold out
ProFlex Termination Plate w/ 3/4" MIP 1/2" FIP x 3/4" CSST Male Adapter Fitting

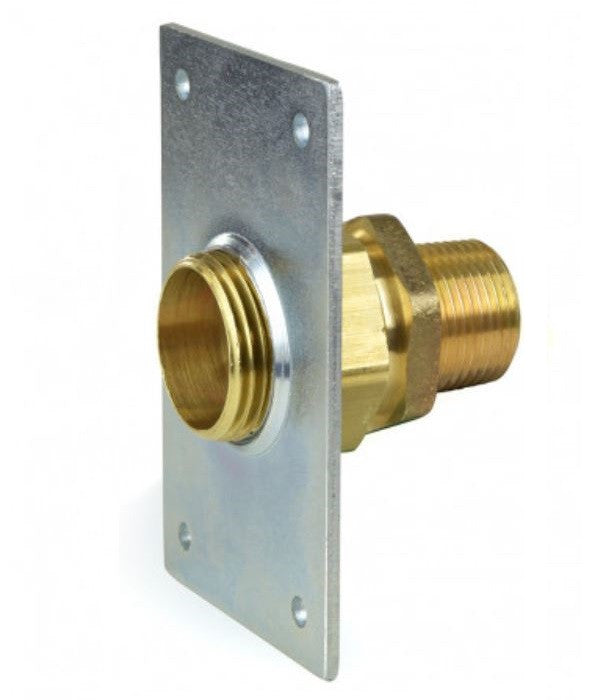

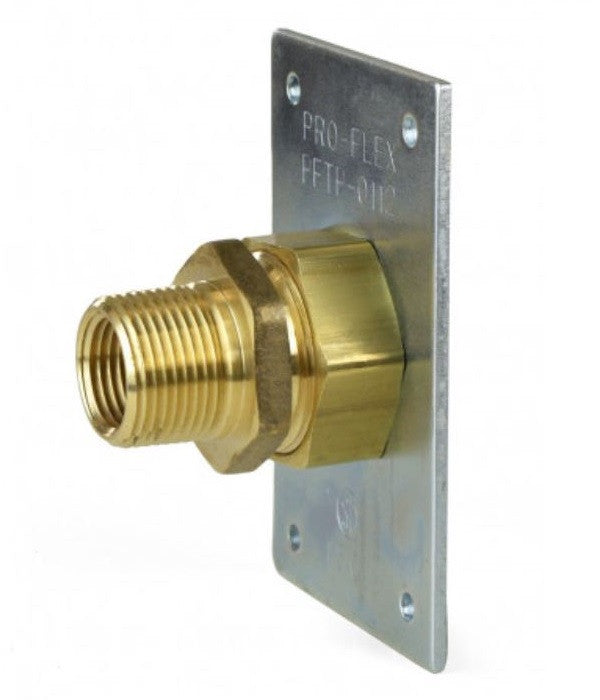

This plate facilitates termination of a 3/4" CSST gas line and provides means of transition to 3/4" female threaded (FIP) gas valve, fitting or appliance connector. Inner 1/2" FIP connection in the fitting also allows connecting 3/8" MIP pipe nipple or fitting.

Technical Specifications:

  • Connections: 3/4" MIP male threaded (1/2" FIP female threaded inside) x 3/4" CSST
  • Plate dimensions: 2.5" x 4"
  • Fitting materials: C36000 brass body, 304 st. steel retainer & slide rings, silicone O-ring, proprietary high-temperature gasket
  • Plate material: 1018 low-carbon steel
  • Max. operating pressure: 5 psi
  • CSA listed
