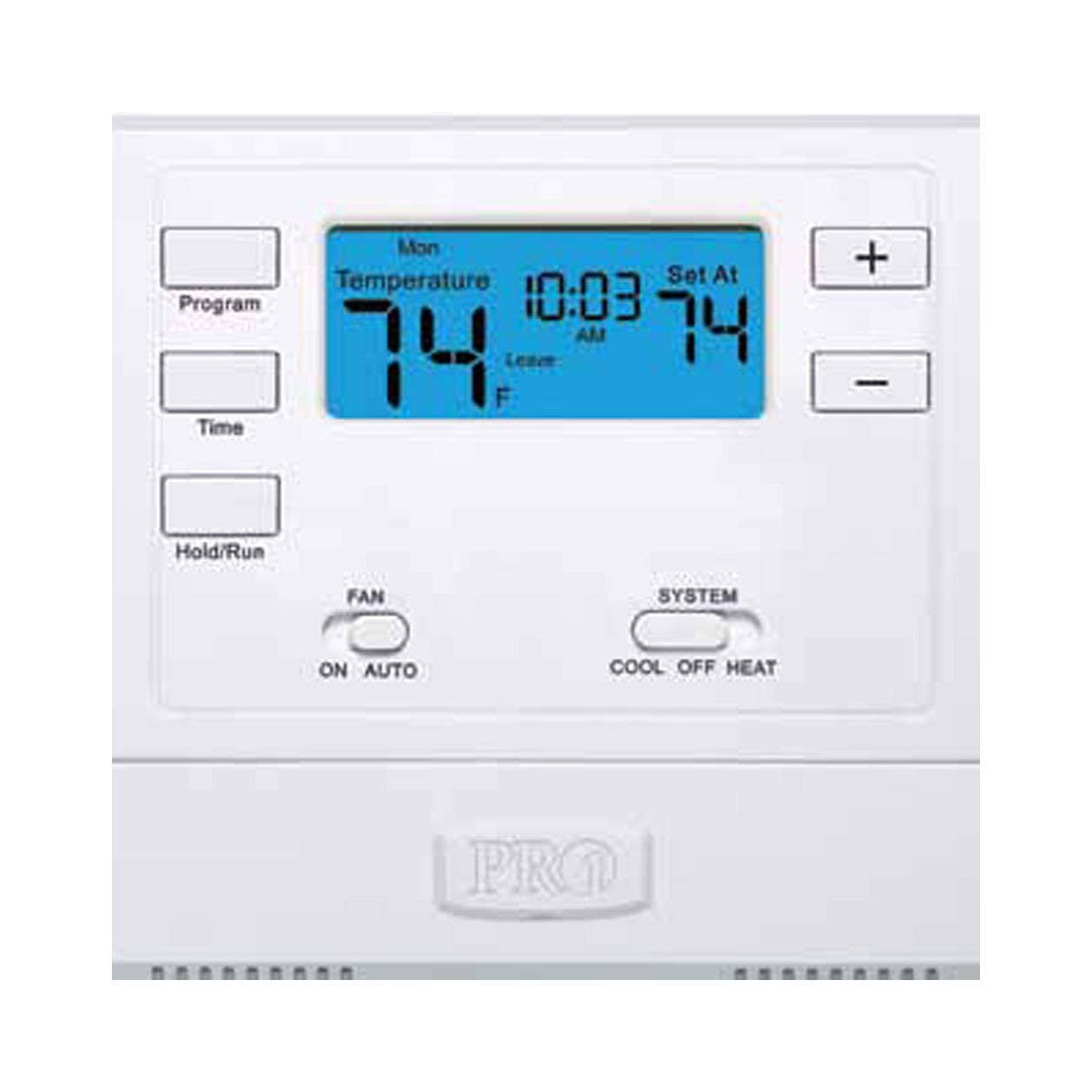

Pro1 IAQ T715 Programmable 2H/2C Thermostat

T715 5/1/1/ Day Digital Programmable, Multi-Stage Thermostat (2H/2C)

Features:

• 5/1/1 programmable
• Easy menu driven programming
• Intuitive wake, leave, return, sleep programming icons
• 4 sq. inch display
• Blue backlight
• Glow in the dark light button
• Easy access battery compartment
• Electric or Gas configurable
• Separate B & O terminals
• Separate heating and cooling swing (cycle rate) adjustments including 2nd stage adjustments
• Filter change indicator (selectable on or off)
• Room temperature calibration adjustment
• 5 minute compressor delay protection (selectable on or off)
• Simple private label badge system
• Easy wire color coded terminal blocks
• Universal sub-base
• Mounts on wall or junction box
• Battery or 24v power
• 5 year warranty

Specifications

• User Interface: Push Button
• Mount: Horizontal Junction Box
• Power Method: Battery Hardwired
• Voltage: 24v
• Stages: 2 Heat/2 Cool
• Programmability: Programmable 5-1-1 Day
• Application: Multi Stage (Heat/Cool)
• Display Range: 41°F to 95°F
• Control Temp Range (F): 44°F to 90°F
• Operating Humidity: 90% non-condensing
• Wireless: No
• Humidity Control: No
