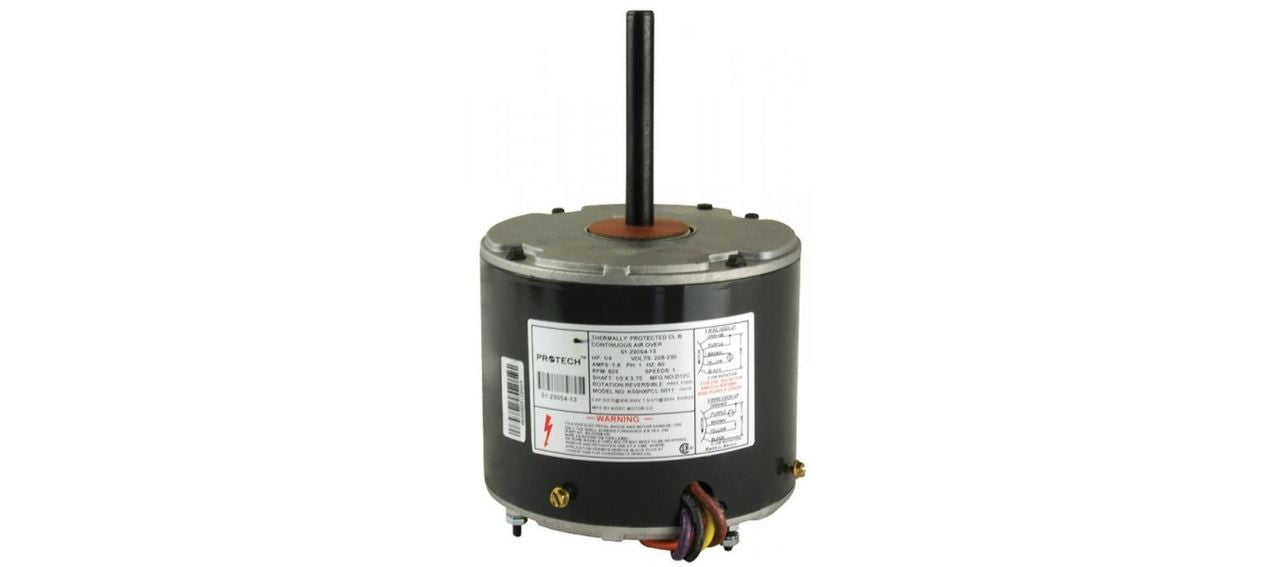

PROTECH Condenser Motor 1/4 hp 208-230/1/60 825RPM 1SPD

1/4 HP 208-230/1/60 (825 RPM/1-Speed) Rheem Direct Drive Reversible Condenser Fan Motor 51-23054-13

The PROTECH series of quality HVAC motors are designed to fit a variety of common aftermarket applications. Additionally, they are approved as OEM replacements for many Rheem, Ruud, and WeatherKing models.


Product Technical Data:

• HP: 1/4
• No. of Speeds: 1
• High Speed (RPM): 825
• Input Voltage (V): 208
• Input Voltage (V): 230
• No. of Phases: 1
• Frequency (Hz): 60
• Rotation Direction (OSE): Reversible
• Run Capacitor (uF/V): 5/370
• FLA at 230V (A): 1.80
• Shaft Diameter (in.): 1/2
• Motor Body Diameter (in.): 5-5/8
• Keyed/Flat Shaft Length (in.): 3-1/4
• Overall Shaft Length (in.): 3-3/4
• Motor Body Length (in.): 4-1/2
• Overall Motor Length (in.): 8-1/4
• Mounting: Shell-band
• Mounting: Thru-bolt
• Mounting: Shell-screw
• Frame Size: 48
• Bearing Type: Sleeve
• Application: Condenser
• Drive Type: Direct Drive

Replaces:

• 8101-475
• 8101-606
• 8101-473
• 8101-554
• 8101-574
