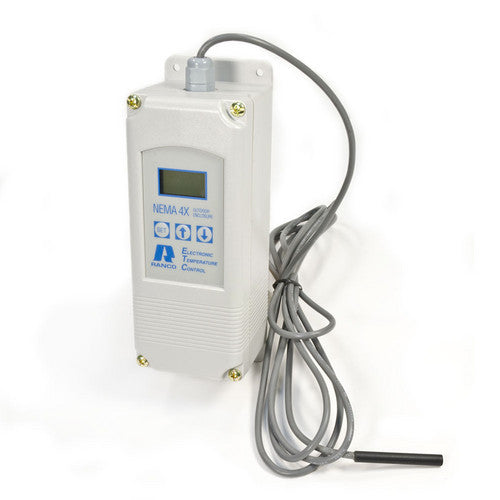

RANCO ETC-141000-000 Digital Temperature Control NEW

The Ranco ETC is a micorprocessor based temperature controller suitable for switching 120Volts at up to 16Amps for heating or cooling applications making it suitable for a wide range of applications. This is a great universal controller for any application where switching 120Volts or temperatures outside that of a normal home thermostat is required. The sensor with an 8' foot cable and instructions are included with the unit.

The Ranco ETC-141000 is identical to the Ranco ETC-111000 except that this unit is rated NEMA 4.

Specifications:

• Temperature Setpoint Range: -30° to 220°F
• Differential range: 1° to 30°F
• Input Voltage: 120VAC, 208, 240VAC
• Pilot duty: 125VA at 120/208/240VAC
• Sensor: Thermistor, 2" long x 1/4"dia with 8' cable (included)
• Control Ambient Temperatures
  • Operating: -20° to 140°
  • Storage: -40° to 176°
• Ambient humidity: 0 to 95% RH, non-condensing
• Enclosure: NEMA 4

• Dimensions: 7.84" high x 2.7" wide x 2.48" deep
• Agency Approvals: UL listed, file E94419, Guide XAPX, CSA certified, file LR68340, class 4813 02


  Relay Output Ratings - NO (NC)	120V	208/240V
  Full load amps	15 (5.8) A	8 (2.9 A)
  Locked rotor amps	96 (34.8) A	48 (17.4) A
  Resistive amps	15 (5.8) A	8 (2.9) A
  Horsepower	1 (1/4) HP	1 (1/4) HP
