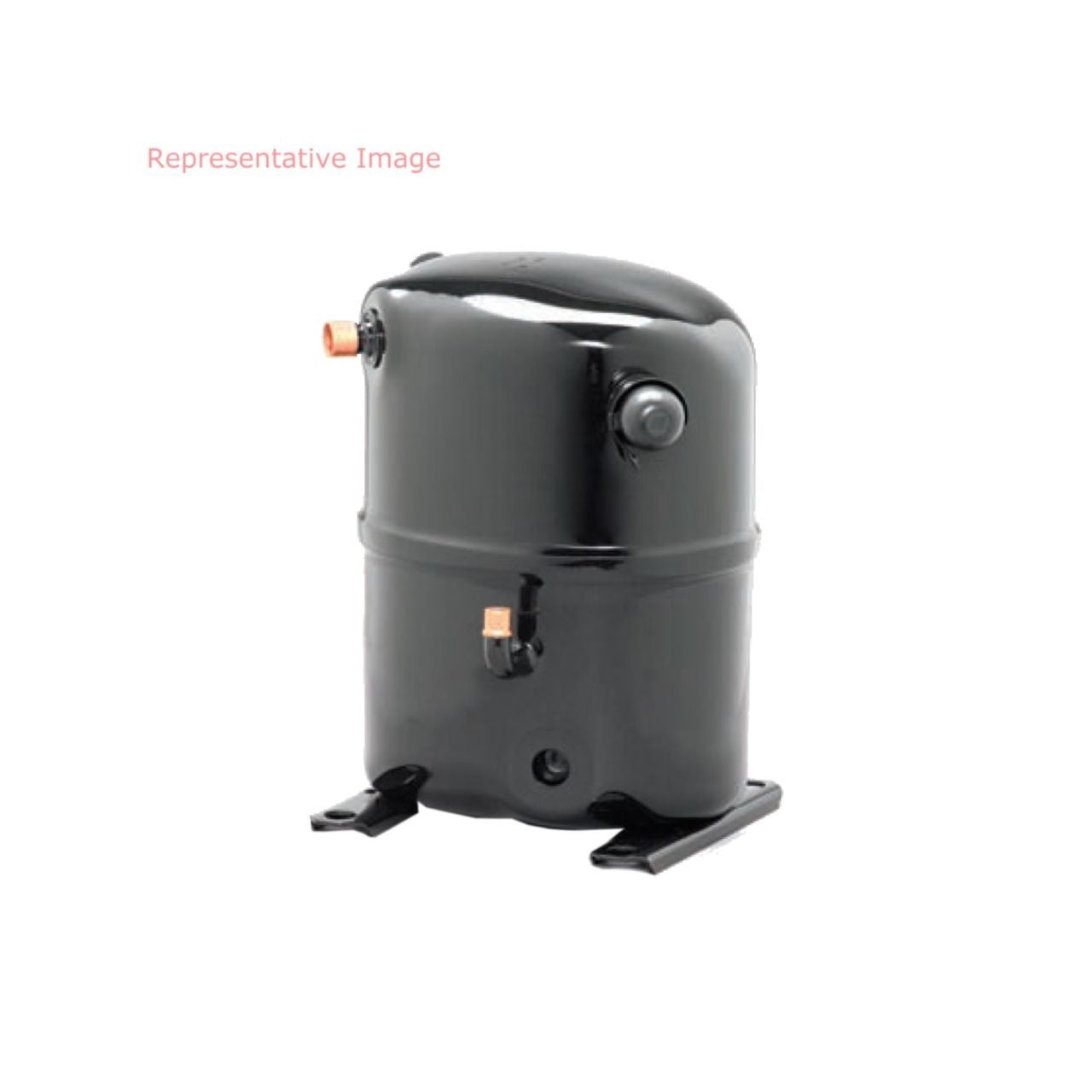

Reciprocating Compressor 39,500 BTUH R22 208-230/1
Reciprocating Compressor 39,500 BTUH R22 208-230/1
R22/R407C Copelaweld Hermetic Compressors with POE Oil
Description:
- 1 through 5 ton models available
- Precharged with POE oil
- Use internal line break overloads for motor protection
- BTU/h ratings are based on 45°F evaporating temperature, 130°F condensing temperature, 65°F return gas temperature and 95°F liquid temperature
- 7 1/2" x 7 1/2" square mounting
- Mounting hardware included
BTU/h Capacity @ 45°F Evap.: 41,900; Conn.: Molded Plug; Discharge Conn.: 1/2"; Suction Conn.: 3/4"; Tons: 3 1/2; Volts: 208/230-1
This compressor includes a molded plug wiring harness in the box. It does not need to be ordered separately.
| Capacity (BTU/HR): | 41900 |
|---|---|
| Type: | Reciprocating |
| Refrigerant: | R-22 |
| Input Voltage (V): | 208 |
| Input Voltage (V): | 230 |
| No. of Phases: | 1 |
| Freq. (Hz.): | 60 |
| Run Capacitor (uF/V): | 40/440 |
| Start Kit: | SK-C3 |
| Kick Start: | 42-KS1 |
| Start Relay P/N: | 42-25105-03 |
| Start Capacitor (uF/V): | 189-277/330 |
| Start Capacitor Part Number: | 43-17075-05> |
| Rated Load Current (A): | 20.4 |
| Max. Continuous Current (A): | 28.5 |
| Locked Rotor Current (A): | 102 |
| Crankcase Heater Included?: | Yes |
| Crankcase Heater Part Number: | 44-17402-32 (PTC), 44-17402-05 (Belly Band) |
| Soundwrap (Brinmar): | 68-25217-10 |
| Refrigerant Oil: | POE (85-32CST) |
| Suction Line Location: | 4 |
| Suction Line Height (in.): | 12-5/8 |
| Suction Line Configuration: | Stub Out |
| Suction Line Size (in.): | 3/4 |
| Discharge Line Location: | 3 |
| Discharge Line Height (in.): | 6-1/4 |
| Discharge Line Configuration: | Up |
| Discharge Line Size (in.): | 1/2 |
| Overall Compressor Height (in.): | 15 |
| Mounting Base Dimensions (in. x in.): | 7-1/2 x 7-1/2 |
Capacity (BTU/HR): 41900 Type: Reciprocating Refrigerant: R-22 Input Voltage (V): 208 Input Voltage (V): 230 No. of Phases: 1 Freq. (Hz.): 60 Run Capacitor (uF/V): 40/440 Start Kit: SK-C3 Kick Start: 42-KS1 Start Relay P/N: 42-25105-03 Start Capacitor (uF/V): 189-277/330 Start Capacitor Part Number: 43-17075-05 Rated Load Current (A): 20.4 Max. Continuous Current (A): 28.5 Locked Rotor Current (A): 102 Crankcase Heater Included?: Yes Crankcase Heater Part Number: 44-17402-32 (PTC), 44-17402-05 (Belly Band) Soundwrap (Brinmar): 68-25217-10 Refrigerant Oil: POE (85-32CST) Suction Line Location: 4 Suction Line Height (in.): 12-5/8 Suction Line Configuration: Stub Out Suction Line Size (in.): 3/4 Discharge Line Location: 3 Discharge Line Height (in.): 6-1/4 Discharge Line Configuration: Up Discharge Line Size (in.): 1/2 Overall Compressor Height (in.): 15 Mounting Base Dimensions (in. x in.): 7-1/2 x 7-1/2
| Model: | Part: | Page: |
|---|---|---|
| RPKA | 55-22972-11S | Compressor Group (3) |
| FADC | 55-22972-22 | Compressor Group, Accessories |
| RADD | 55-22972-22 | Compressor Group, Accessories |
| RAKA | 55-22972-22 | Compressor Group 036-042 |
| SAKA | 55-22972-22 | Compressor Group 036-042 |
| 10AJB | 55-22972-22 | Compressor Group |
| 10AJB | 55-22972-22 | Compressor Group |
| FADC | 55-22972-44S | Compressor Group, Accessories |
| RAKA | 55-22972-44S | Compressor Group 048-060 |
Replaces:
55-21365-11
55-21471-15S
55-22972-44S
55-17294-04
8000-604
M-4000-2
8000-550
55-21471-13
8000-5595
55-20892-70S
55-20892-71
8000-447
55-20892-70
55-17297-03
55-18051-01
55-21471-15
55-22972-22
55-20892-06
55-20738-05
55-20892-70P
55-22972-11
55-19930-04
55-20881-06
55-20892-26
55-20484-01
55-22972-44P
55-21365-13
55-17297-09
55-22972-11S
55-22972-44
55-21285-01
55-18051-01
55-20892-70P
55-21365-13
55-21365-11
55-17297-09
55-22972-44
55-22972-44P
55-21471-15S
55-17297-03
8000-447
55-20892-70S
8000-604
55-20881-06
55-22972-11
M-4000-2
55-19930-04
55-21471-15
55-20738-05
8000-5595
55-22972-22
55-17294-04
8000-550
55-21471-13
55-20892-71
55-21285-01
55-20892-06
55-20892-26
55-22972-44S
55-20892-70
55-20484-01
