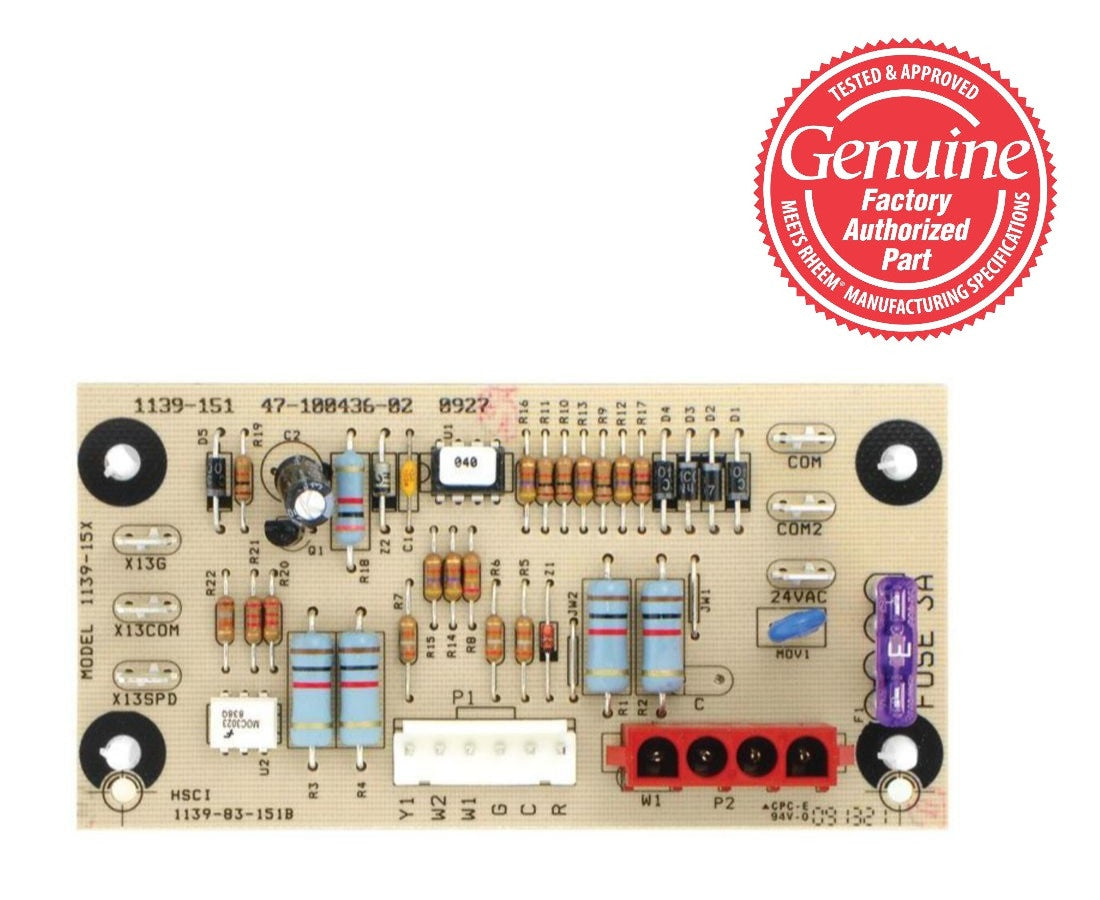

Rheem 47-100436-02 Control Board UTEC 1139-151

Rheem 47-100436-02 Control Board

Notes »

• Uses 3A replacement fuse 44-101986-01.
• This Control Board is the replacement for 47-102077-02, despite its smaller physical size.
• This Control Board is the replacement for 47-102077-05, but some of the electrical connection descriptions on the new control board are not the same as the descriptions called out on the old board. Use the following equivalency information for correlating the electrical connection descriptions between the old and new board : XFMR-R =24 VAC; XFMR-C=COM2; COM=COM



Where Used »

AHBA, RBHP, RF1T, RHBL, AHBL, RHLA, RHLL, SHLL, RHLP, AHLL, EH1P, RHML, EH1T, RH1T, RH2T

Replacement History »

• 47-102077-05
• 47-102077-02
