Condenser Motor - 1/3 hp 208-230/1/60 (1075 rpm/1 speed)

Condenser Motor - 1/3 hp 208-230/1/60 (1075 rpm/1 speed)

$192.00 USD
$192.00 USD
Sale Sold out

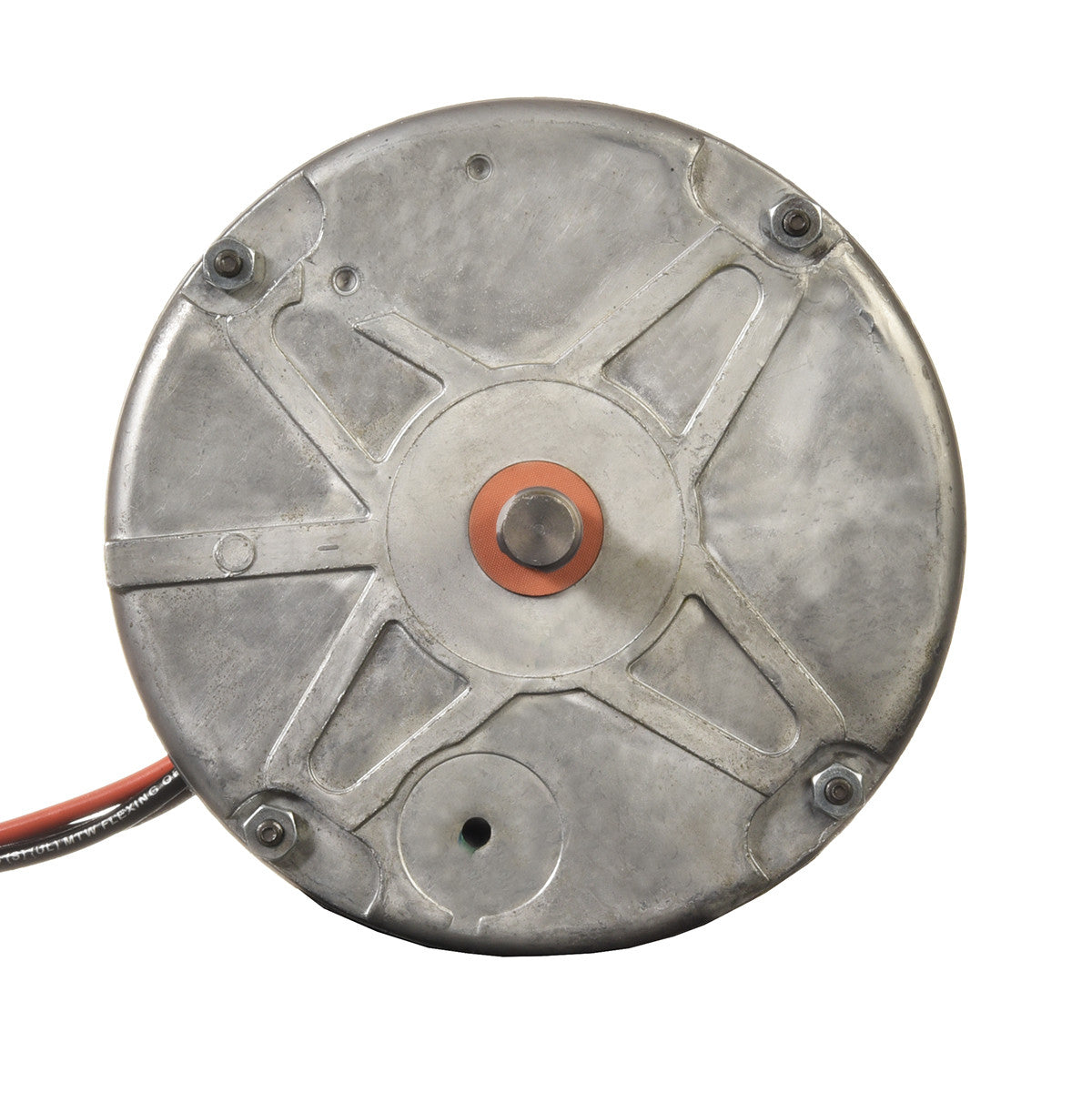

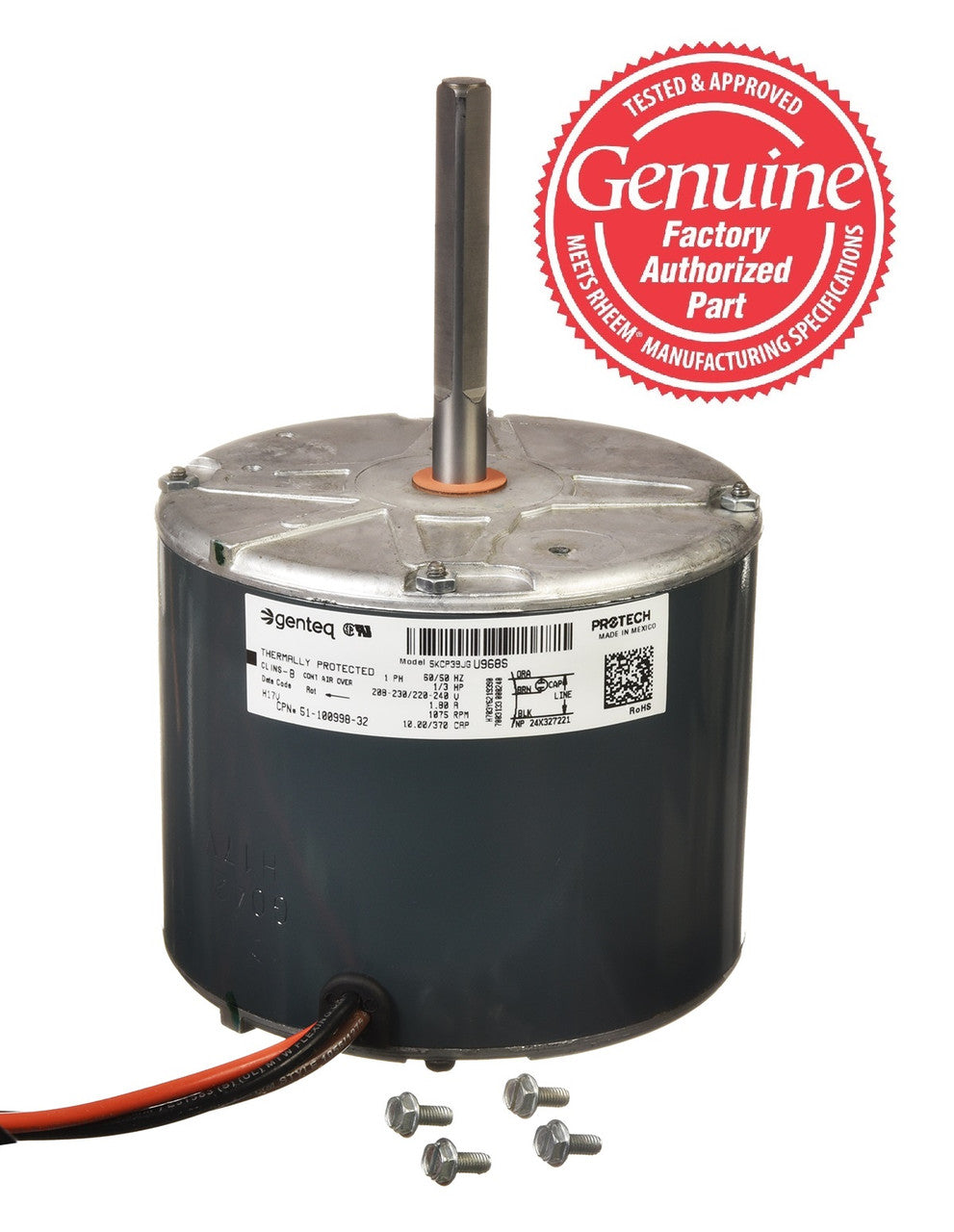

Rheem 51-100998-32 Condenser Motor - 1/3 hp 208-230/1/60 (1075 rpm/1 speed)

HP: 1/3
No. of Speeds: 1
High Speed (RPM): 1075
Input Voltage (V): 208
Input Voltage (V): 230
No. of Phases: 1
Frequency (Hz): 60
Rotation Direction (OSE): CCW
Run Capacitor (uF/V): 10/370
FLA at 208V (A): 1.80
LRA at 208V (A): 4.00
FLA at 220V (A): 1.80
LRA at 220V (A): 4.00
FLA at 230V (A): 1.80
LRA at 230V (A): 4.00
Shaft Diameter (in.): 1/2
Motor Body Diameter (in.): 5-39/64
Keyed/Flat Shaft Length (in.): 2-3/4
Overall Shaft Length (in.): 3-21/32
Motor Body Length (in.): 4-3/4
Overall Motor Length (in.): 8-3/8
Mounting: Shell-band
Mounting: End-boss
Frame Size: 48
Bearing Type: Ball
Application: Condenser
Drive Type: Direct Drive

Model: Part: Page:
RAWD 51-100998-13 Fan Group 065-091
RAWE 51-100998-13 Fan Group
RAWL 51-100998-13 Fan Group 078-240
RJNA 51-100998-13 Fan Group
RJNL-A 51-100998-13 Fan Group
RJNL-C 51-100998-13 Fan Group 036-072
RJPL-A 51-100998-13 Fan Group
RJPL-C 51-100998-13 Fan Group 036-060
RKKL-B 51-100998-13 Electrical Group 072, Fan Group 072
RKKN-B 51-100998-13 Electrical Group 072, Fan Group 072
RKNA 51-100998-13 Electrical Group, Fan Group
RKNL-A 51-100998-13 Fan Group
RKNL-C 51-100998-13 Fan Group 036-060
RKNN-A 51-100998-13 Fan Group
RKNN-C 51-100998-13 Fan Group 036-060
RKPL-A 51-100998-13
