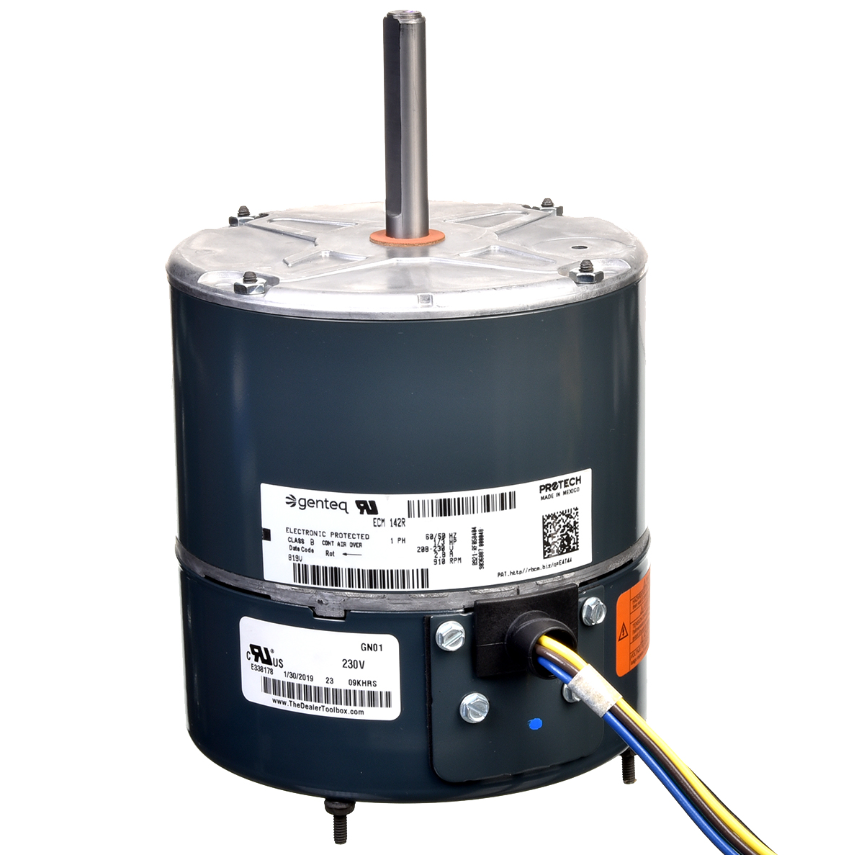

Rheem 51-102728-23 1/3HP 208/230/1 Motor - ECM (Outdoor)
Rheem 51-102728-23 1/3HP 208/230/1 Motor - ECM (Outdoor)
No reviews
Regular price
$356.65 USD
Regular price
Sale price
$356.65 USD
Unit price
/
per
- Variable speed operation
- Brings the benefits of ECM to high voltage applications without the need of a step-down transformer partnered with a standard voltage ECM
- Ball bearings
- OEM genuine factory authorized part
- 1/3 HP
- 1 Phase
- 208/230V
| Motor Type: | ECM - Not Programmable |
|---|---|
| HP: | 1/3 |
| No. of Speeds: | Variable |
| Input Voltage (V): | 208 |
| Input Voltage (V): | 230 |
| No. of Phases: | 1 |
| Frequency (Hz): | 50 |
| Frequency (Hz): | 60 |
| Rotation Direction (OSE): | CCW |
| FLA at 208V (A): | 2.8 |
| FLA at 230V (A): | 2.8 |
| Shaft Diameter (in.): | 1/2 |
| Motor Body Diameter (in.): | 5-5/8 |
| Keyed/Flat Shaft Length (in.): | 2-1/4 |
| Overall Shaft Length (in.): | 2-5/8 |
| Motor Body Length (in.): | 6 |
| Overall Motor Length (in.): | 9-1/16 |
| Mounting: | Shell-band |
| Mounting: | Thru-bolt |
| Frame Size: | 39 |
| Bearing Type: | Ball |
| Application: | Condenser |
| Drive Type: | Direct Drive |
| Model: | Part: | Page: |
|---|---|---|
| RAPM | 51-102728-11 | |
| RPQL | 51-102728-11 | |
| 15PJL | 51-102728-11 | |
| RHP15410A | 51-102728-11 |
