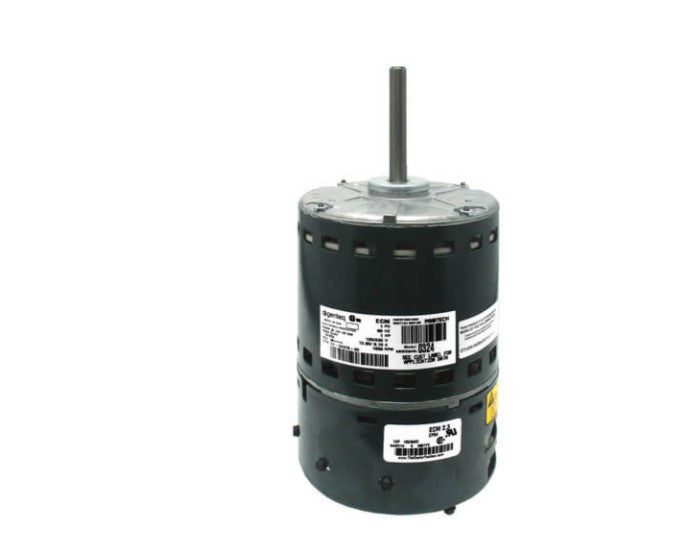

Rheem 51-104304-00 Motor 1/2 Hp (ECM) Eon 5.0
Rheem 51-104304-00 Motor 1/2 Hp (ECM) Eon 5.0
No reviews
Regular price
$444.97 USD
Regular price
Sale price
$444.97 USD
Unit price
/
per
The ECM Eon Blower Motor is commonly used in applications in residential HVAC furnaces and air handlers, commercial variable air volume systems, and fan filter units. Eon is a lighter, more compact variable speed ECM that is backward compatible with the existing ECM 2.3 motor and fits easily into existing systems.
- Lighter, more compact for easier installation
- ECM Toolbox based programming software
- BlakBox enabled
- OEM genuine factory authorized part
| Motor Type: | ECM (Eon) |
|---|---|
| HP: | 1/2 |
| No. of Speeds: | Variable |
| Input Voltage (V): | 120 |
| Input Voltage (V): | 230 |
| No. of Phases: | 1 |
| Frequency (Hz): | 50 |
| Frequency (Hz): | 60 |
| Shaft Diameter (in.): | 1/2 |
| Motor Body Diameter (in.): | 5-5/8 |
| Keyed/Flat Shaft Length (in.): | 3-13/16 |
| Overall Shaft Length (in.): | 4-1/4 |
| Motor Body Length (in.): | 6 |
| Overall Motor Length (in.): | 10-11/32 |
| Mounting: | Shell-band |
| Frame Size: | 48 |
| Bearing Type: | Ball |
| Application: | Blower |
| Drive Type: | Direct Drive |
| Replaces: | |
|---|---|
| 51-24259-80 | |
| 51-24259-00 | |
| 51-24374-00 |
