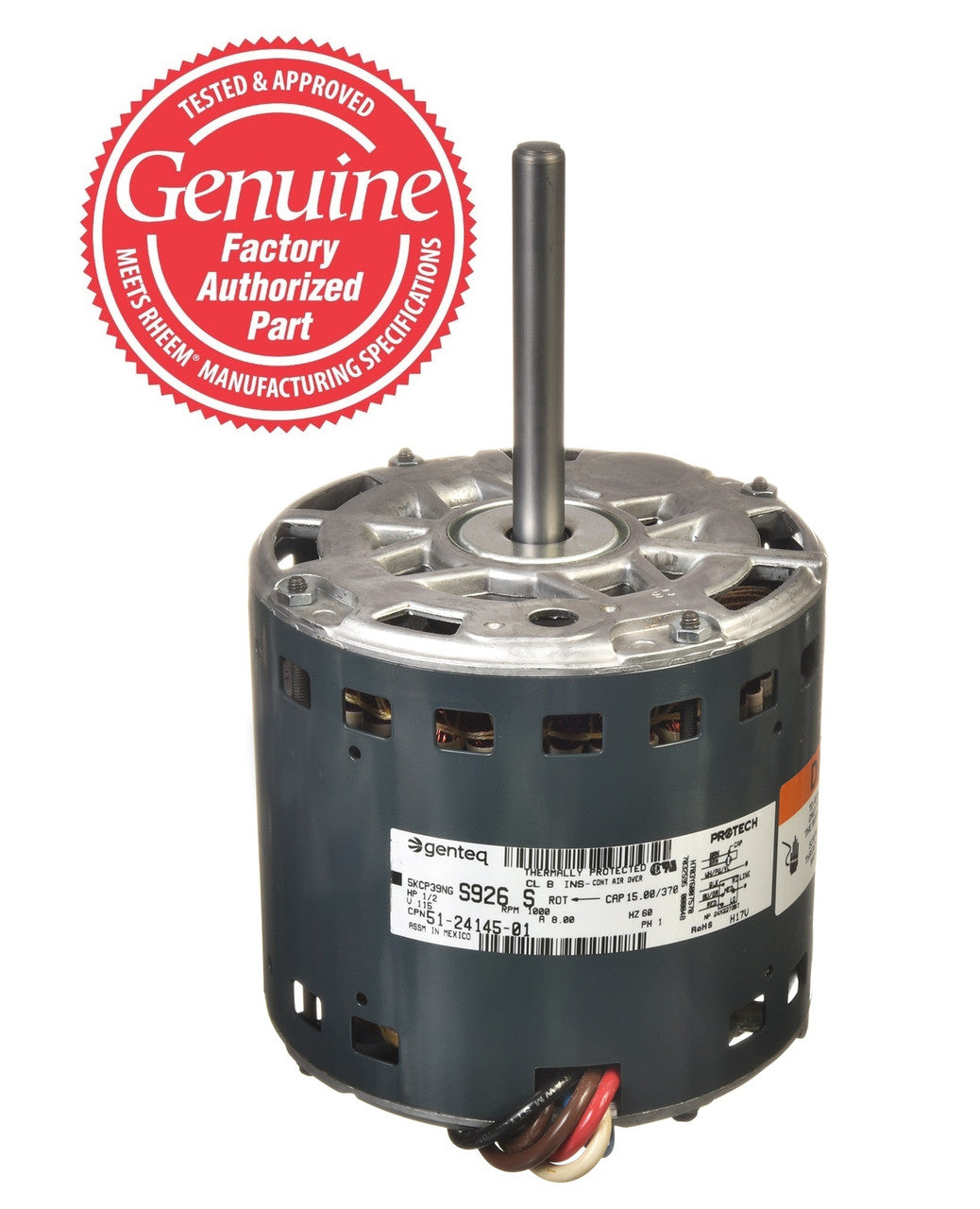

Rheem 51-24145-01 Blower Motor - 1/2 hp 120/1/60 (1075 rpm/3 speeds)

Rheem 51-24145-01 Blower Motor - 1/2 hp 120/1/60 (1075 rpm/3 speeds)

$421.17 USD
$421.17 USD
Sale Sold out
HP: 1/2
No. of Speeds: 3
High Speed (RPM): 1075
Input Voltage (V): 120
No. of Phases: 1
Frequency (Hz): 60
Rotation Direction (OSE): CCW
Run Capacitor (uF/V): 15/370
FLA at 120V (A): 8.00
LRA at 120V (A): 13.70
Shaft Diameter (in.): 1/2
Motor Body Diameter (in.): 5-5/8
Keyed/Flat Shaft Length (in.): 3
Overall Shaft Length (in.): 3-3/4
Motor Body Length (in.): 5-1/4
Overall Motor Length (in.): 9-1/16
Mounting: Shell-band
Mounting: Shell-screw
Frame Size: 48
Bearing Type: Sleeve
Application: Blower
Drive Type: Direct Drive


Used With:

RGRJ 51-24145-01
RGTJ 51-24145-01
90RJ 51-24145-01
90RS 51-24145-01
90TJ 51-24145-01
90TS 51-24145-01
RGRS 51-24145-01
RGTS 51-24145-01
