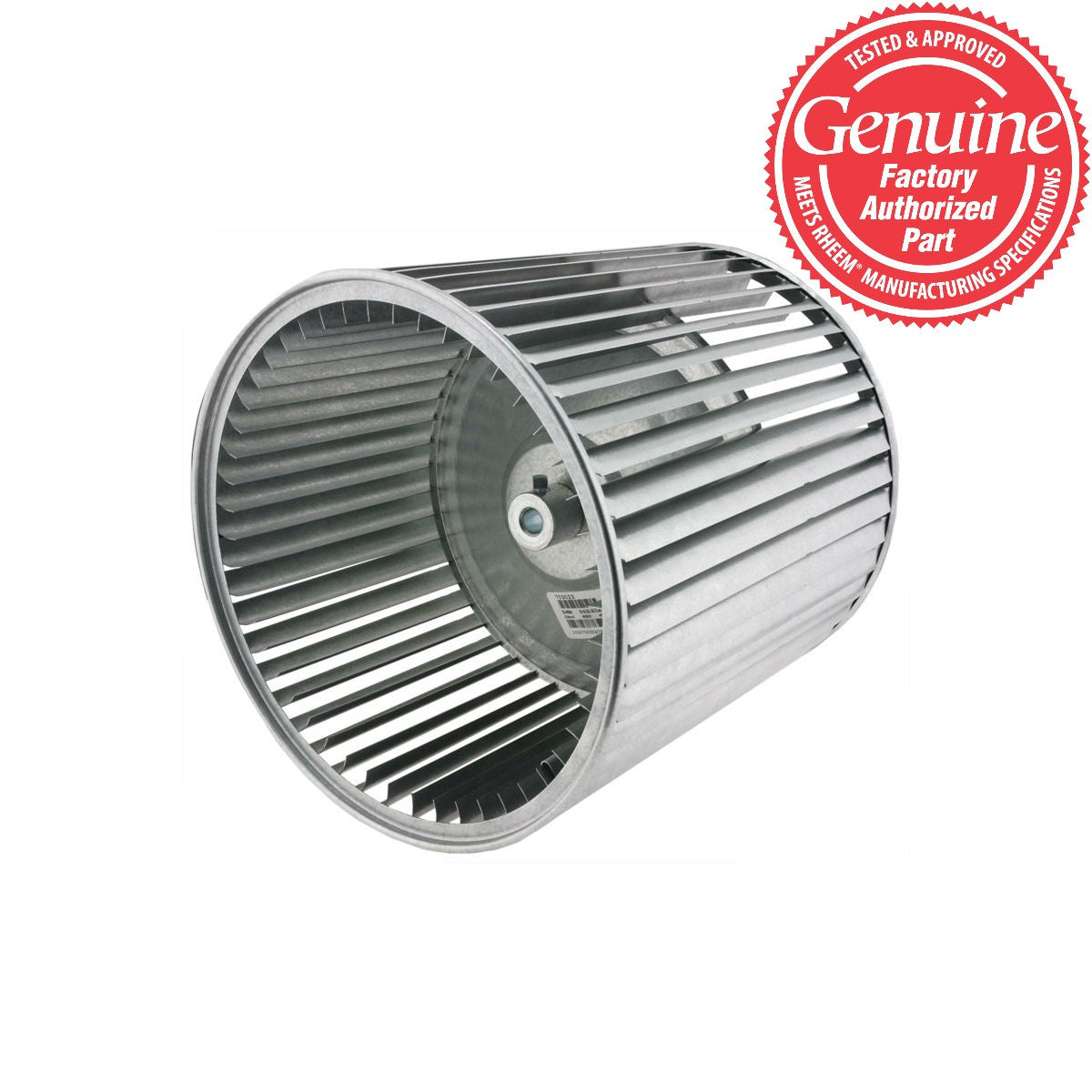

Rheem 703023 Blower Wheel 10 x 10 x 1/2"

10X10X1/2" CW Blower Wheel 703023 Rheem Ruud

Replaces:
703013
Technical Data

• Overall Diameter Dim. D (in.): 10-5/8
• Overall Width Dim. W (in.): 10-11/16
• Nominal Size (in.): 10 x 10
• No. of Blades: 48
• Nominal Hub Bore Shaft Size Dim. E (in.): 1/2
• No. Set Screws: 1
• Outside Edge of Disc to Outside End of Hub Dim. A (in.): 2
• Hub Length Dim. B (in.): 1-1/8
• Disc Setback - Outside Edge of Disc to End of Wheel Opposite Hub Dim. C (in.): 4-11/32
• Keyway (in.): None
• Rotation Direction (Facing Hub): CW
• Disc Shape (Hub side): Convex

Used on:

RHKA4821, RHKL3821, RHKL4821, RHLA4821, RHLL3821, RHLL4821, SHLL6021, RHSA4221, RHSA4821/24, RHSL4221, RHSL4821/24, SHSL6021, AHLA4821, AHLL4821, AHSA4221, AHSA4821, AHSA4824, AHSL4221, AHSL4821, AHSL4824
