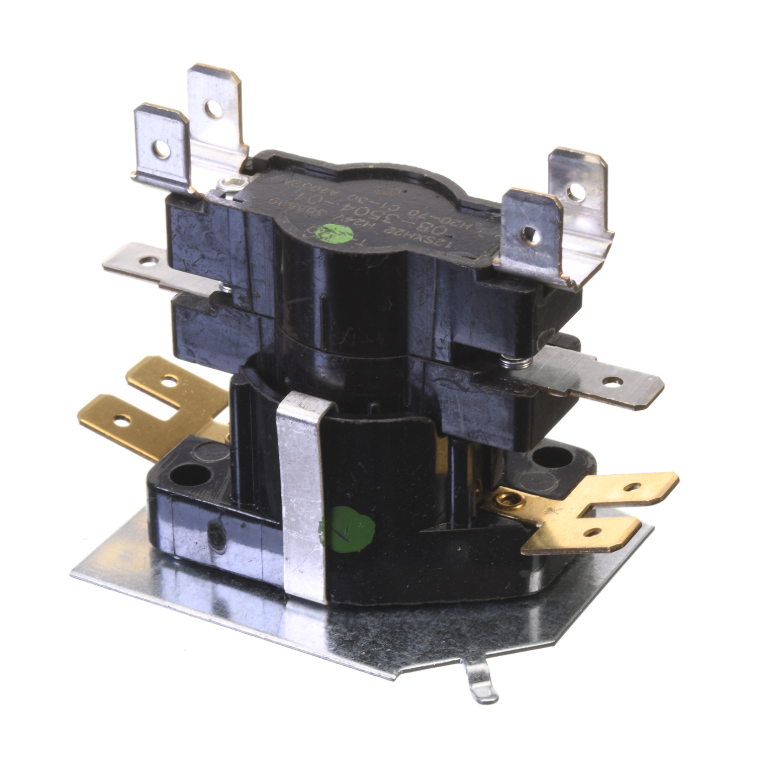

Rheem PD425119 Sequencing Relay
Rheem PD425119 Sequencing Relay
No reviews
Regular price
$23.58 USD
Regular price
Sale price
$23.58 USD
Unit price
/
per
Rheem PD425119 Sequencing Relay
| Mounting: | Flush Mount Plate w/Mounting Hole & Tab |
|---|---|
| Heater Wattage/ Power Consumption: | 24 VAC/.10A -.18A steady state/.35 - 1.0 amps peak for 0.8 sec. |
| Heater Voltage (V): | 24 |
| Contact Configuration: | DPST - NO |
| No. of Poles: | 2 |
| On Timing - Pole 1 (seconds): | 20-70 |
| On Timing - Pole 2 (seconds): | 20-70 |
| Off Timing - Pole 1 (seconds): | 1-30 |
| Off Timing - Pole 2 (seconds): | 1-30 |
| Connections: | 1/4 in. Quick Connects |
| Motor FLA at 120V (A): | Pole 1: 14 Pole 2: 14 |
| Motor LRA at 120V (A): | Pole 1: 72 Pole 2: 72 |
| Pilot Duty Rating at 120V (VA): | Pole 1: 125 Pole 2: 125 |
| Resistive Rating at 120V (A): | Pole 1: 25 Pole 2: 25 |
| Motor FLA at 230V (A): | Pole 1: 7 Pole 2: 7 |
| Motor LRA at 230V (A): | Pole 1: 42 Pole 2: 42 |
| Pilot Duty Rating at 230V (VA): | Pole 1: 125 Pole 2: 125 |
| Resistive Rating at 230V (A): | Pole 1: 25 Pole 2: 25 |
| Motor FLA at 460V (A): | Pole 1: 4 Pole 2: 4 |
| Motor LRA at 460V (A): | Pole 1: 24 Pole 2: 24 |
| Pilot Duty Rating at 460V (VA): | Pole 1: 125 Pole 2: 125 |
| Resistive Rating at 460V (A): | Pole 1: 12.5 Pole 2: 12.5 |
