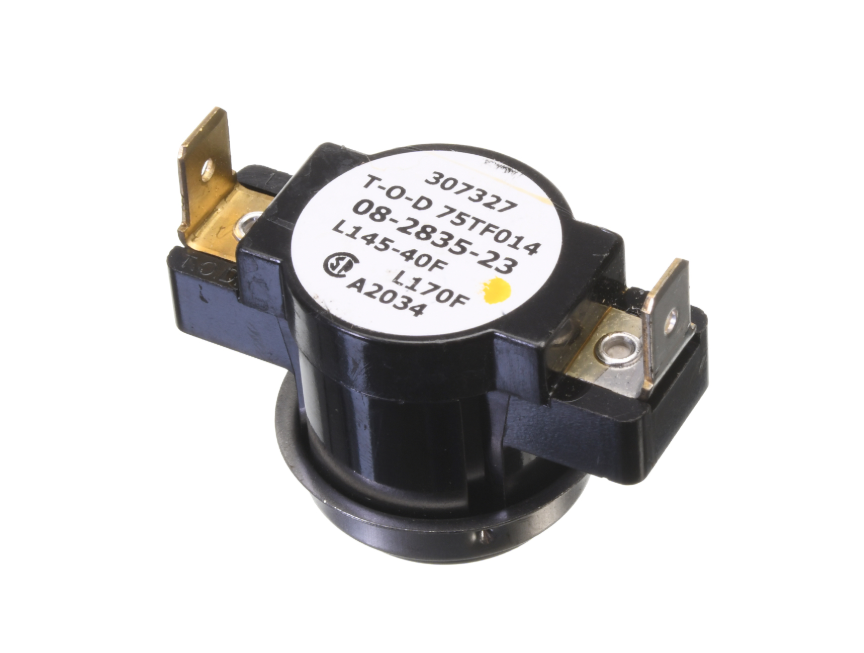

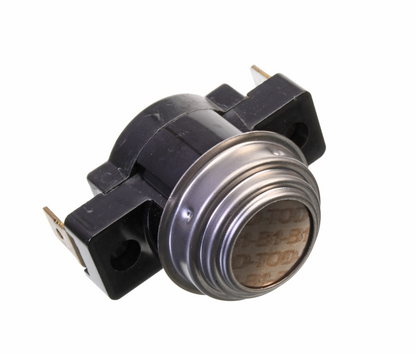

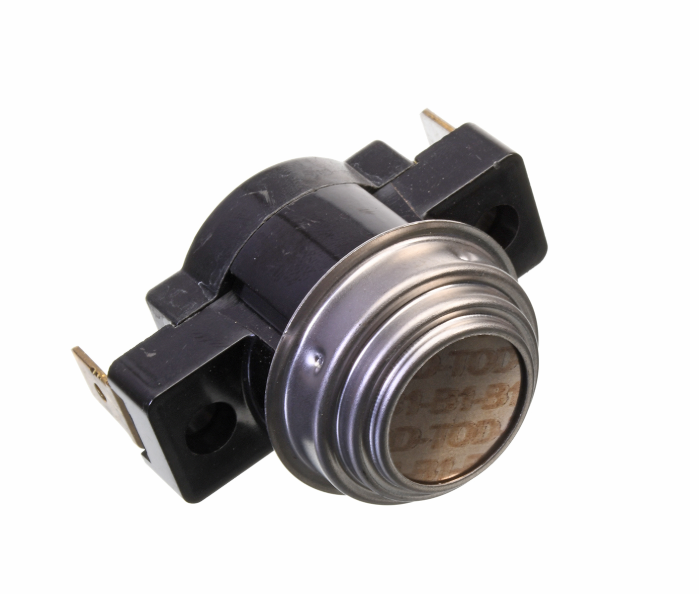

Rheem PD476634 Limit Switch – Non-Resettable

Rheem PD476634 Limit Switch – Non-Resettable

TOD Switch Series:75TF

Category:General Purpose

Reset Mode:Non-Resettable

No. of Poles:1

Switch Type:SPST

Contact Orientation:Normally Closed

Maximum Voltage Rating (VAC):120 / 230

Maximum Current Rating (A):25

Open Temperature (F):145 (170 One-Shot)

Tolerance Open Temperature (F):+/-5 (+/-8)

Close Temperature (F):105

Tolerance Close Temperature (F):+/-9

Minimum Manual Reset Temperature (F):(-31 Auto)

Nominal Temperature Difference (F):40

Disc Face:Exposed

Mounting:Flangeless airstream

Mounting Insertion Depth - Maximum (in.):3/8

Connections:1/4 in. Quick Connects
