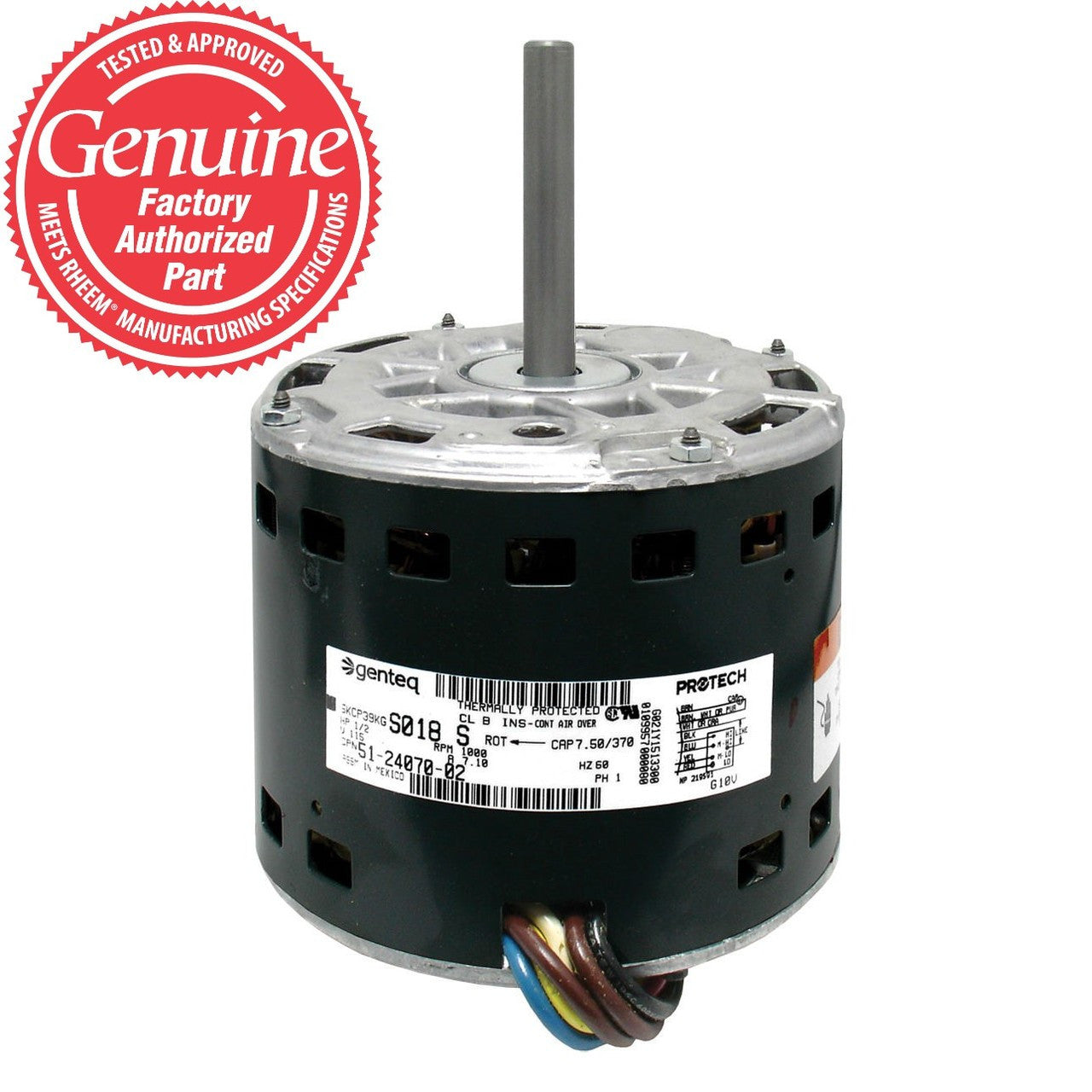

Rheem Protech 51-24070-02 Blower Motor 1/2 HP 1075 RPM 4 SPD

Rheem/Ruud/Protech 51-24070-02

Specifications

• HP: 1/2
• No. of Speeds: 4
• High Speed (RPM): 1075
• Input Voltage (V): 120
• No. of Phases: 1
• Frequency (Hz): 60
• Rotation Direction (OSE): CCW
• Run Capacitor (uF/V): 7.5/370
• FLA at 120V (A): 7.10
• LRA at 120v (A): 12.40
• Shaft Diameter (in.): 1/2
• Motor Body DIameter (in.): 5-5/8
• Keyed/Flat Shaft Length (in.): 3
• Overall Shaft Length (in.): 3-1/2
• Motor Body Length (in.): 4-3/4
• Overall Motor Length (in.): 8-5/16
• Mounting: Shell Band
• Mounting: Shell-Screw
• Frame Size: 48
• Bearing Type: Sleeve
• Application: Blower
• Drive Type: Direct Drive

Used in the Following Models

RGDG 05, 06, 07, 10EAM, SGDG, RGLH, RGLK, RGLN, RGLQ, RGPH, RGPK, RGPN, RGPQ, RGVH, UGDG, UGLH, UGLK, UGLN, UGLQ, UGPH, UGPK, UGPN, UGPQ, UGVH

Model:Part:Page:

RGDG51-24070-02Blower Group

SGDG51-24070-02Blower Group

RGLH51-24070-02Blower Group

RGLK51-24070-02Blower Group

RGLN51-24070-02Blower Group

RGLQ51-24070-02Blower Group

RGPH51-24070-02Blower Group

RGPK51-24070-02Blower Group

RGPN51-24070-02Electrical Group, Blower Group

RGPQ51-24070-02Electrical Group, Blower Group

RGVH51-24070-02Blower Group

GF802D51-24070-02Blower Group

GF802U51-24070-02Electrical Group, Blower Group
