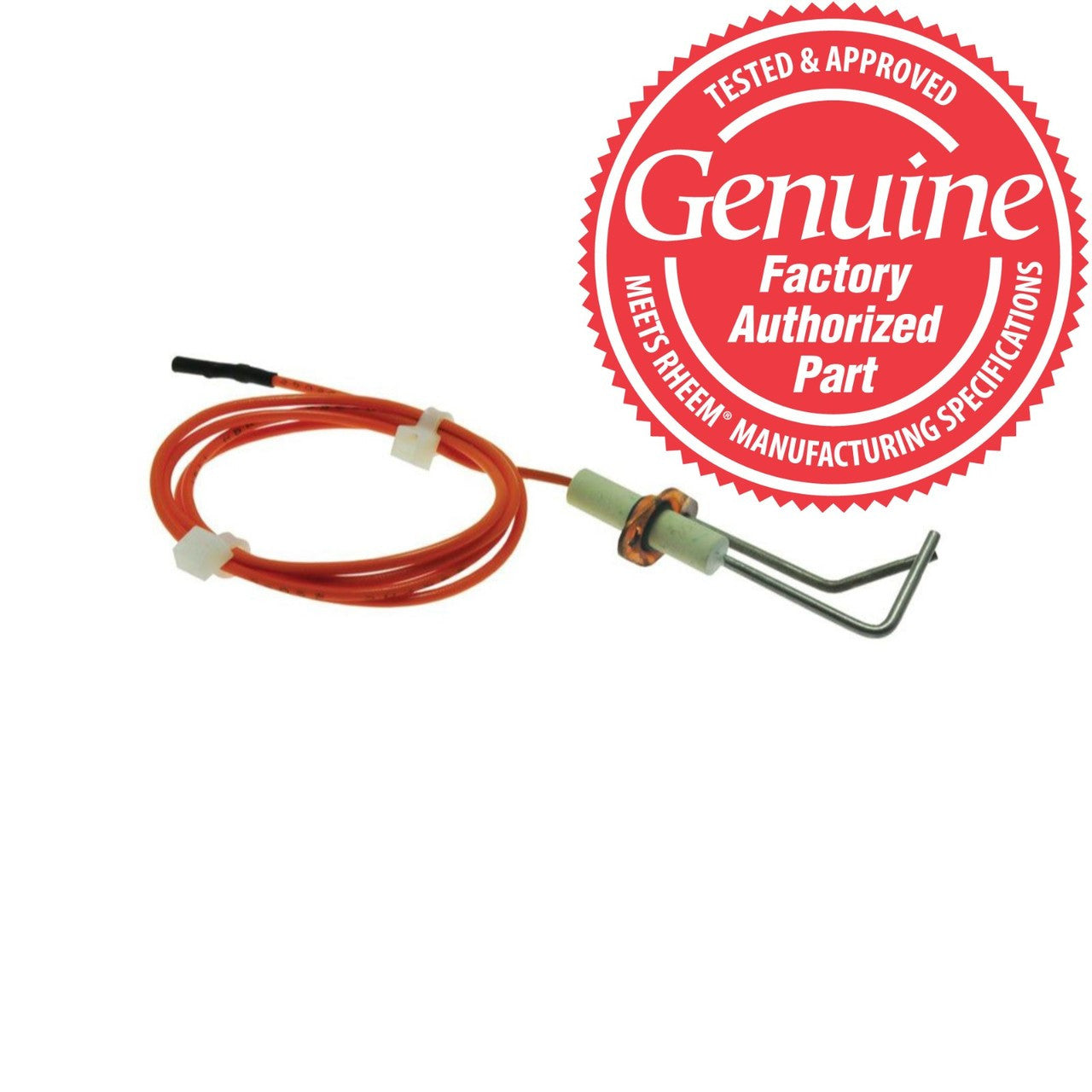

Rheem Protech 62-24164-01 Ignitor Direct Spark Ignition (DSI

Rheem/Ruud/Protech 62-24164-01 Direct Spark Igniter (DSI) With 35" Cables

Technical Data:

Ignitor Type:Direct Spark

Element Material:Kanthal

Length - Mounting Flange to Ignitor Tip (in.):2-1/8

Length - Spark Electrode Offset (in.):1-3/16

Angle - Spark Electrode Offset (degrees):83

Length - Ground Electrode Offset (in.):13/16

Angle - Ground Electrode Offset (degrees):135

Spark Gap (in.):1/8

Wire Length (in.):35

Termination:0.084 in. diameter round pin terminal

Used in the following Rheem / Ruud model numbers:

• SGDG-Models With Gas Code: EY,
• RGLH-Models With Gas Code: FD, FE, FF, FG, FS, FU
• RGLK-Models With Gas Code: EX, FJ, FM, FO
• RGLL-Models With Gas Code: FC, FL, FR
• RGLN-Models With Gas Code: FT, FU
• RGLQ-Models With Gas Code: FJ, FO, GO, GW
• RGLR-Models With Gas Code: FC, FL, FR, GR, GX
• RGPH-Models With Gas Code: FD, FE, FF, FG, FU
• RGPK-Models With Gas Code: EX, FJ, FM, FO
• RGPL-Models With Gas Code: FC, FL, FR
• RGPN-Models With Gas Code: FD, FS, FT, FU, FV
• RGPP-Models With Gas Code: GH, GJ, GK
• RGPQ-Models With Gas Code: FJ, FO, GO, GW
• RGPR-Models With Gas Code: FC, FL, FR, GR, GX
• 80LS-Models With Gas Code: GH
• 80PS-Models With Gas Code: GH, GJ, GK
• RGLE-Models With Gas Code: GZ
• RGLS-Models With Gas Code: GH
• RGLT-Models With Gas Code: HV, HT
• RGPE-Models With Gas Code: GZ
• RGPS-Models With Gas Code: GH, GJ, GK
• RGPT-Models With Gas Code: HV, HT
• SGPG-Models With Gas Code: EY
• SGPN-Models With Gas Code: GS
• UGDG-Models With Gas Code: EY,
• UGLH-Models With Gas Code: FD, FE, FF, FG, FS, FU
• UGLK-Models With Gas Code: EX, FJ, FM, FO
• UGLL-Models With Gas Code: FC, FL, FR
• UGLN-Models With Gas Code: FT, FU
• UGLQ-Models With Gas Code: FJ, FO, GO, GW
• UGLR-Models With Gas Code: FC, FL, FR, GR, GX
• UGPH-Models With Gas Code: FD, FE, FF, FG, FU
• UGPK-Models With Gas Code: EX, FJ, FM, FO
• UGPL-Models With Gas Code: FC, FL, FR
• UGPN-Models With Gas Code: FD, FS, FT, FU, FV
• UGPP-Models With Gas Code: GH, GJ, GK
• UGPQ-Models With Gas Code: FJ, FO, GO, GW
• UGPR-Models With Gas Code: FC, FL, FR, GR, GX
• UGLE-Models With Gas Code: GZ
• UGLS-Models With Gas Code: GH
• UGLT-Models With Gas Code: HV, HT
• UGPE-Models With Gas Code: GZ
• UGPS-Models With Gas Code: GH, GJ, GK
• UGPT-Models With Gas Code: HV, HT
• UGPG-Models With Gas Code: EY
• UGPN-Models With Gas Code: GS

*Gas Code Is The First Two Letters Of The Units Serial Number.

All Controls Should Be Installed By A Licensed Professional.

FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL INJURY AND/OR PROPERTY DAMAGE!
