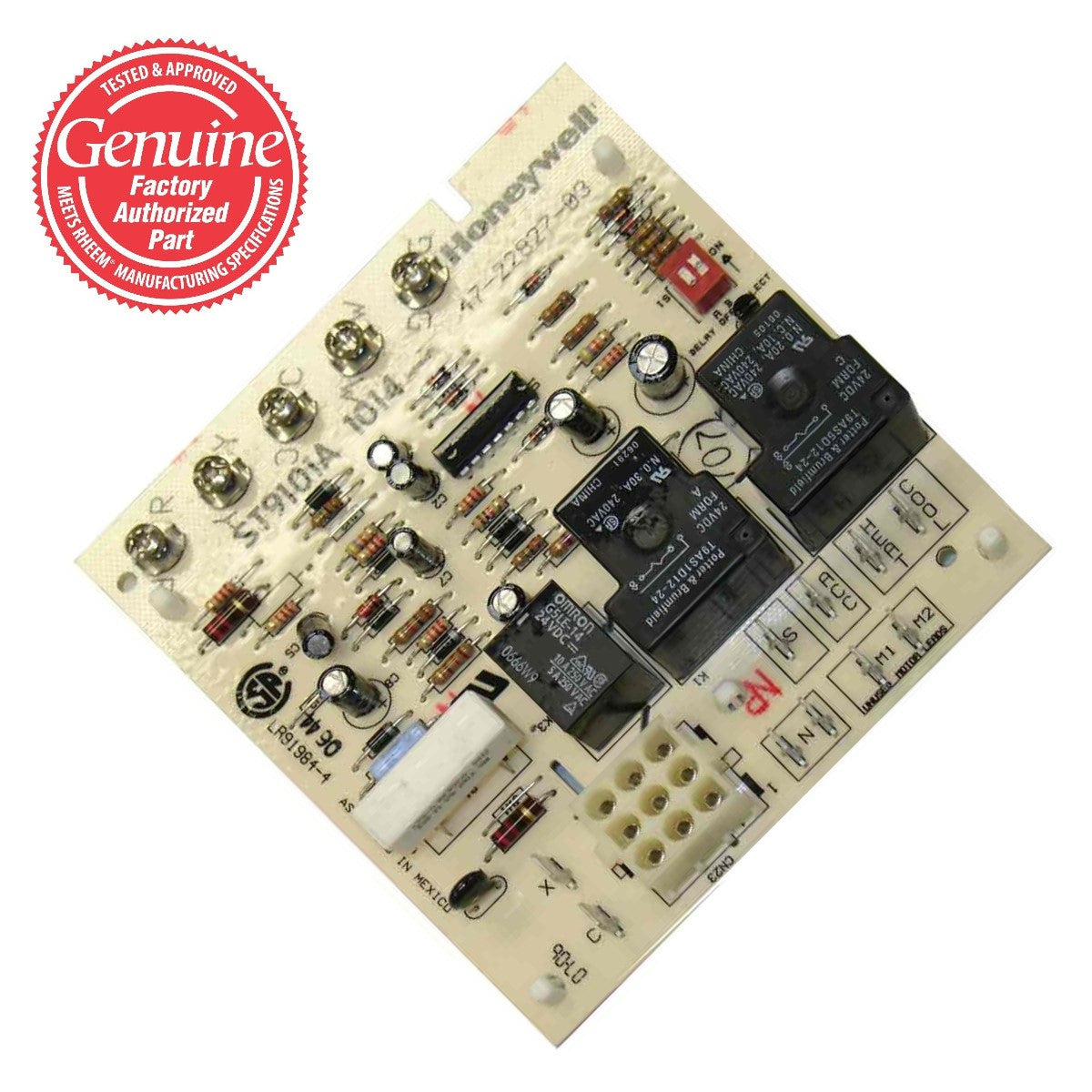

Rheem Ruud 47-22827-83 Fan Control Circuit Board

Rheem Ruud 47-22827-83 Fan Control Circuit Board

Fixed or field-adjustable heat fan on delay; field adjustable heat fan off delay.

Replaces: 47-22827-02, ST9101A1006, ST9101A1022, ST9101A1006, ST9101A1014, 47-22827-03, 47-22827-83, 47-22693-01, 47-22693-02, 47-22828-01, 47-22830-01, 47-22830-02, ST9101A1014

Heat Fan On Delay fixed, 20 sec.

Heat Fan Off Delay adj. 90, 120, 150, 180 sec (set at 120 sec).

Electrical Ratings (Vac) 24 Vac.

Frequency (Hz) 50/60 Hz.

Cool Fan On Delay fixed 0 sec.

Cool Fan Off Delay fixed 0 sec.

Fixed Heat Fan On Delay: 20 sec;

Adjustable Heat Fan Off Delay: 90,120,150,180 (Set At 120 sec);

Fixed Cool Fan On and Off Delay: 0 sec.

Temperature Ratings (F) -40 F to +160 F

Temperature Ratings (C) -40 C to +70 C
