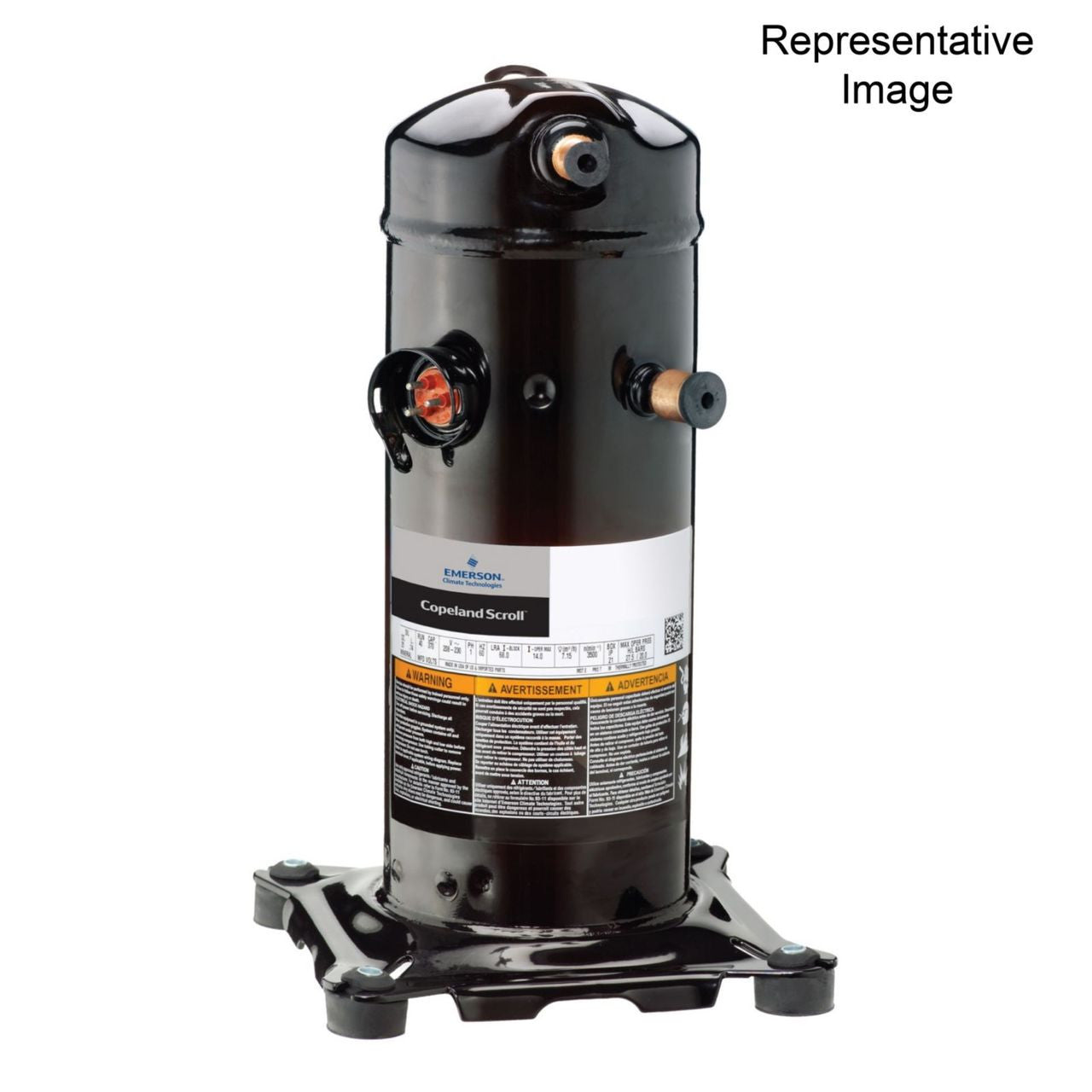

Scroll Compressor 21,000 BTUH R22 208-230V Single Phase

Copeland ZR21K5E-PFV-800:

• Type: Scroll
• Refrigerant: R22
• 1 1/2 Ton
• Precharged with POE Oil
• Molded Plug Service Connection

This compressor includes a molded plug wiring harness in the box. It does not need to be ordered separately. The compressor rating label for model ZR21K5E-PFV-800 may read ZR21K5E-PFV-7M3. The difference in the suffix number is a result of internal handling procedures, and the compressors are identical in all aspects.

Capacity (BTU/HR):21000
Type:Scroll
Refrigerant:R-22
Input Voltage (V):208
Input Voltage (V):230
No. of Phases:1
Freq. (Hz.):60
Run Capacitor (uF/V):35/370
Start Kit:SK-A1
Kick Start:42-TO5
Start Relay P/N:42-25105-01
Start Capacitor (uF/V):88-106/330
Start Capacitor Part Number:43-17075-04
Rated Load Current (A):12.0
Max. Continuous Current (A):16.8
Locked Rotor Current (A):56.0
Crankcase Heater Included?:No
Crankcase Heater Part Number:44-17402-44
Soundwrap (Brinmar):68-25217-10
Refrigerant Oil:POE (85-32CST)
Suction Line Location:2
Suction Line Height (in.):10-1/16
Suction Line Configuration:Stub Out
Suction Line Size (in.):3/4
Discharge Line Location:3
Discharge Line Height (in.):14-1/4
Discharge Line Configuration:Stub Out
Discharge Line Size (in.):1/2
Overall Compressor Height (in.):15-1/4
Mounting Base Dimensions (in. x in.):7-1/2 x 7-1/2

The parts shown below have been approved by parts engineering as acceptable alternates. The conditions of approval noted below must be satisfied before substituting the alternate part. Only the specific part numbers noted are approved. If the specified alternate has been replaced, or itself also has approved alternates, the linked or alternate parts have not been approved.
Alternate:55-102045-60S
Conditions of Approval:These two compressors are identical, except mineral oil is used in ZR21K5E-PFV-800, while POE oil is used in 55-102045-60S.

Replaces:
55-102045-60S
55-102045-60
ZR21K5E-PFV-7M3
ZR21K5-PFV-7M3
