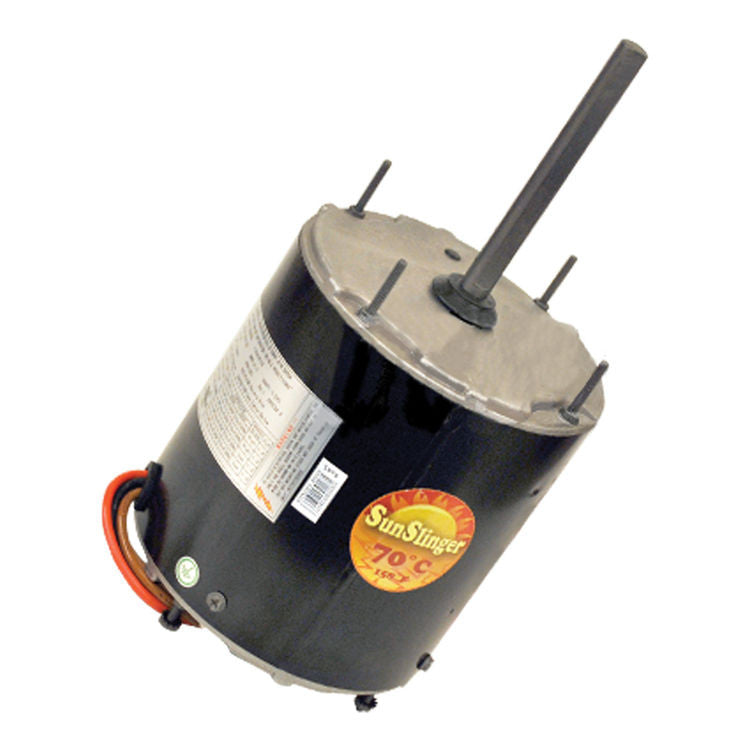

SunSlinger 20465 Condenser Motor 1/6-1/3 MultiHP 208-230V

SunSlinger 20465 Condenser Motor 1/6-1/3 Multi HP 208-230V 2SPD REV 70C CF Replaces Emerson 5462H GE/Genteq 3465HS York Source 1 S1-FHM3465HT

MARS 70°C multi-horsepower SunSlinger condenser fan motors are ideal for truck stock. They are designed to provide reliable operation in a wide range of ambient temperatures. Three 1075 RPM
models cover 208-230 volt applications from 1/6 to 1/2 HP. Two 825 RPM models cover 208-230 volt applications from 1/8 to 1/3 HP

Features
All angle, ball bearing
• Rheem shell mounting holes with screws installed
• Trane 4.33 bolt circle mounting holes with self tapping screws
• Reversible rotation
• Thru bolt or band mounting
• Water slinger on shaft
• Extra set of nuts on mounting studs

Specifications: • Class “B” insulation
• Single phase, 60 Hertz
• 70°C/158°F
• 36 inch leads
• Thermal overload protected
• Fan duty, continuous, air over
• Totally enclosed (20458 & 20459 ONLY)
• Short shell length
• Just ONE capacitor rating per motor
• Quick & Simple 2 wire installation


Motor TypePSC
EnclosureTEAO
H.P. (Max.)1/3
Voltage208-230
Multi-Rated H.P.1/6-1/3
Speeds2
Hz60
RotationREV
RPM Range1075
NEMA Frame
Size48
PhaseSingle
StandardsCUL
FLA2.5
MountAll Angle
BearingBall
Shaft Length Inches7
Shaft Dia Inches1/2
Thermal ProtectionAuto
Ambient Deg C70
Ins. ClassClass B
Capacitor IncludedNo
Capacitor Rating7.5/5/370
