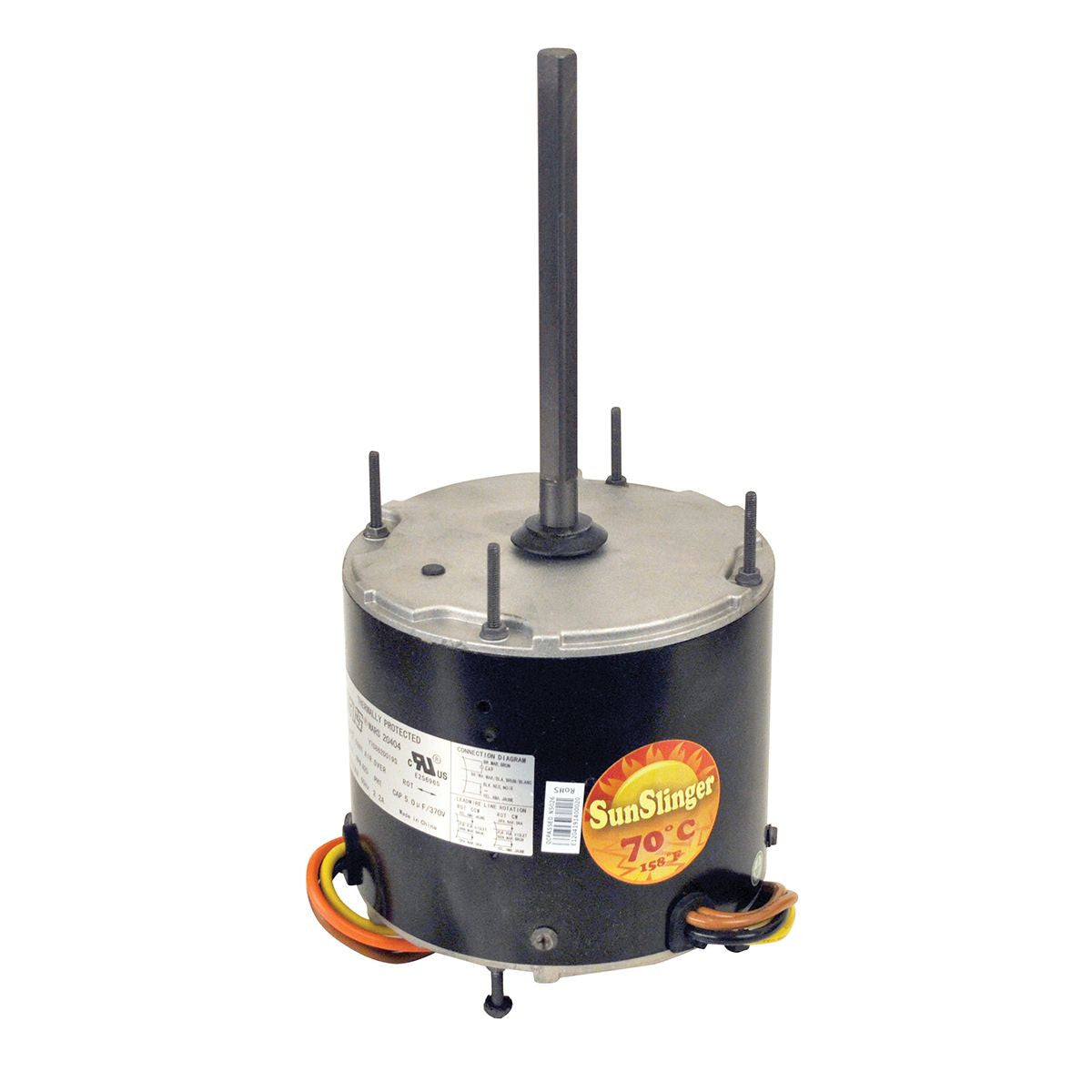

SunSlinger 20729 Condenser Motor 1/3HP 208-230V 1075 RPM

SunSlinger 20729 Condenser Motor 1/3HP 208-230V 1075 RPM 70C

MARS 70°C SunSlinger totally enclosed condenser fan motors are designed for either vertical shaft-up or shaft-down applications in a variety of ambient conditions. Shell and end shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications.

Features:

• All angle, ball bearing
• Rheem mounting holes w/screws installed
• Trane 4.33 bolt circle mounting holes with self tapping screws
• Reversible rotation
• Thru bolt or band mounting
• Water slinger on shaft
• Capacitor requirement noted on motor label
• Extra set of nuts on mounting studs

Specifications:

• Class "B" insulation
• Single phase, 60 Hertz
• 70°C/158°F
• Thermal overload protected
• Fan duty, continuous, air over
• Totally enclosed non-ventilated
• 36 inch leads

WEIGHT	16.75 Pound (lb.)
WIDTH	7.4 Inches (In)
HEIGHT	7.7 Inches (In)
COUNTRY OF ORIGIN	CHN
UPC OR BARCODE	685744207290
HAZARDOUS MATERIAL	No
EPA CERT REQUIRED	No
LENGTH	14.9 Inches (In)
BRAND	MARS
VOLTAGE	208-230 VAC
FULL LOAD AMPS	2.4
AMPS	2.4
PHASE	Single
CYCLE/HERTZ	60
CAPACITOR MFD ?F	7.5/370
RPM	1075
ROTATION	Reversible
INSULATION CLASS	B
MOTOR HP	1/3 HP
MOTOR TYPE	PSC
SHAFT DIAMETER	1/2
SHAFT LENGTH	6.49606299212598
BEARING TYPE	Ball
ENCLOSURE	Drip Proof
LEAD LENGTH	36"
MAXIMUM AMBIENT TEMPERATURE	70°F (21.1°C)
MOUNTING	All Angle
NEMA FRAME	48
NUMBER OF SPEEDS	1
PROTECTION	Auto
WARRANTY OFFERED	Warranties will be handled in accordance with the manufacturer's specific warranty policies and procedures.
AGENCY COMPLIANCE	CUL
UL LISTED	Yes
UL RECOGNIZED	Yes
