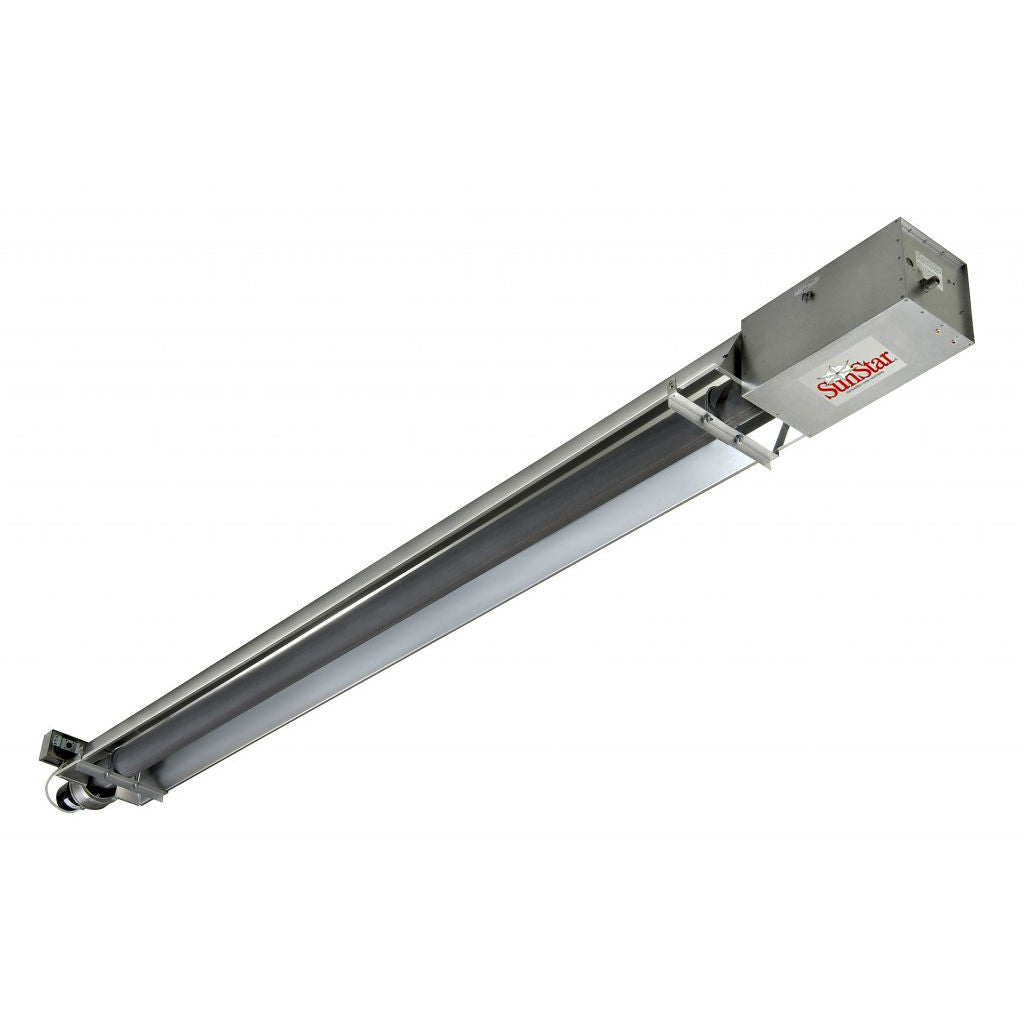

SunStar SIS 30' 50K BTU Infrared Tube Garage Heater NG

The Economical Alternative for Hard-to-Heat Spaces
Whether you need to heat your warehouse, garage, or other hard-to-heat spaces, the Sunstar SIS/U Series infrared heaters provide both the fuel efficiency of radiant heat and the installation flexibility you need…and all at a comfortable price.

• 6 different Btu sizes and more than 60 different configurations to custom design your infrared heating system
• CSA design certified
• Available in natural and propane gas
• Optional elbows and corner reflectors
• Optional decorative grille
• Sidewall or through the roof venting
• Vented or indirect vented operation
• Includes 36″ stainless steel gas connector.

Vacuum System

Radiant Emitter Tube System

• 4” O. D. heat treated aluminized steel combustion chamber (10’ length)
• Standard highly emissive radiant tubes (10’ lengths)
• Optional aluminized steel radiant tubes (Tough Guy Option)
• 5 year limited warranty on all tubes
• Suitable for horizontal or angle mounting up to 45°
• Up to 75 feet sidewall vent capability

Burner System

• Heavy duty cast iron burner
• Reliable direct spark ignition system and 100%
• Gas Shut-Off Safety Control
• Burner inspection sight glass
• Step-opening redundant combination gas valve for quite ignition and added safety
• Inside or outside air for combustion
• Up to 50 ft. outside combustion air capability
• Diagnostic Monitoring Light System

Reflector System

• Highly efficient aluminum reflectors
• Individual reflectors can be rotated up to 45° to direct heat where needed
• Optional end, corner, U-bend and side extension reflectors

Applications

• Manufacturing Plants
• Warehouses
• Auto Dealerships
• Aircraft Hangars
• Loading Docks
• Weld Shops
• Fire Stations
• Gymnasiums
• Garages
• Machine Shops
• Tennis Courts
• Maintenance Shops
• Farm Buildings
• Truck Service Areas
• Auto Body Shops
