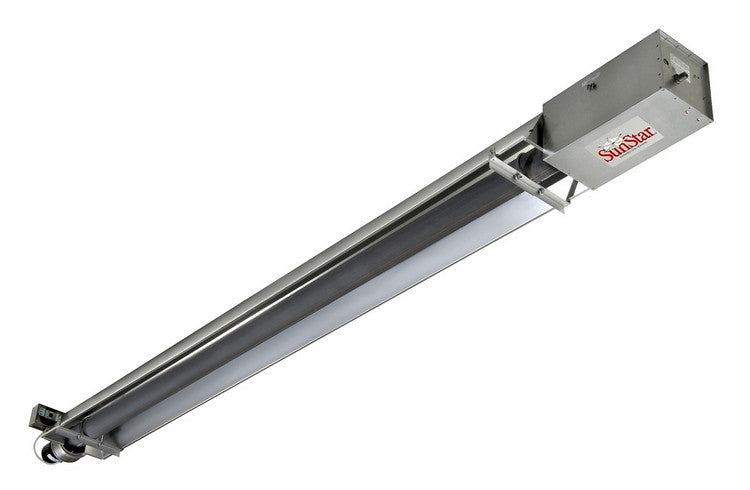

SunStar SIS 30' 75K BTU Infrared Tube Garage Heater NG

SIS Series Features

• 6 different Btu sizes and more than 60 different
configurations to custom design your infrared
heating system
• CSA design certified
• Available in natural and propane gas
• Optional elbows and corner reflectors
• Optional decorative grille
• Sidewall or through the roof venting
• Vented or indirect vented operation

Vacuum System
• Products of combustion are pulled through the
combustion chamber for increased radiant efficiency
and greater safety
• No draft hoods, totally enclosed combustion
chamber
• Heavy duty draft inducer assembly with permanently
lubricated, totally enclosed and heavy
duty ball bearing motor for maintenance-free
operation
• 30 second per-purge period before ignition
• Diaphragm air switch for proof of venting
before gas flow and ignition

Burner System
• Heavy duty cast iron burner
• Reliable direct spark ignition system and 100%

Gas Shut-Off Safety Control
• Burner inspection sight glass
• Step-opening redundant combination gas valve
for quite ignition and added safety
• Inside or outside air for combustion
• Up to 50 ft. outside combustion air capability
• Diagnostic Monitoring Light System

Radiant Emitter Tube System
• 4” O. D. heat treated aluminized steel combustion
chamber (10’ length)
• Standard highly emissive radiant tubes (10’ lengths)
• Optional aluminized steel radiant tubes (Though
Guy Option)
• 5 year limited warranty on all tubes
• Suitable for horizontal or angle mounting up to 45 degrees
• Up to 75 feet sidewall vent capability

Reflector System
• Highly efficient aluminum reflectors
• Individual reflectors can be rotated up to 45 degrees to
direct heat where needed
• Optional end, corner, U-bend and side extension
reflectors

**This unit is Natural Gas**

Specification Sheet
