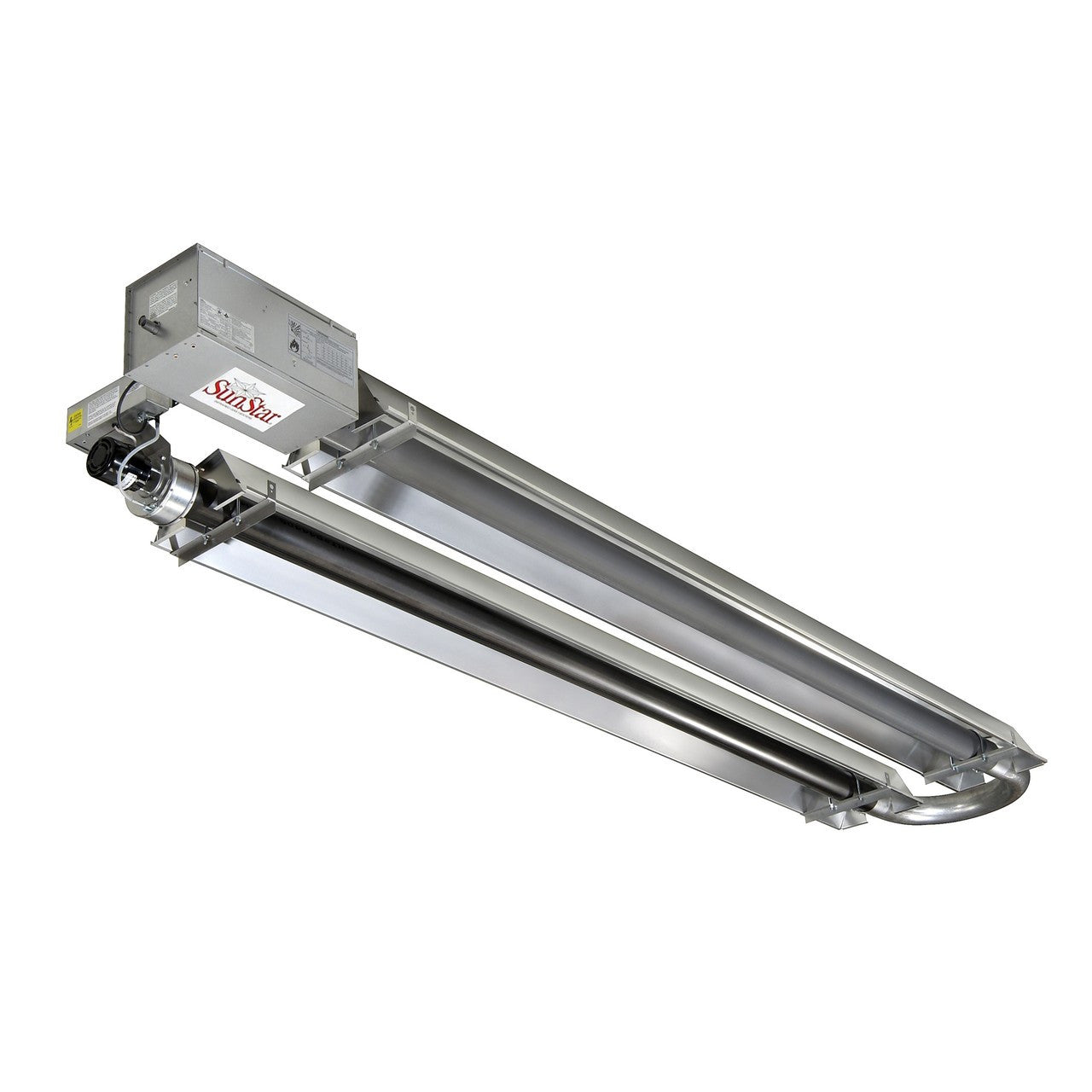

SunStar SIU 20' 75K BTU Radiant Tube Garage Heater NG

SunStar SIU 20' 75K BTU Radiant Tube Garage Heater NG

$1,025.00 USD
$1,025.00 USD
Sale Sold out

    • Offers fuel savings up to 70%
    • U-Tube heater configurations are great for high heat loss areas including loading docks
    • Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety
    • Reliable direct spark ignition and 100% gas shut-off safety control
    • Up to 50Â’ of ducting in fresh air and 75Â’ sidewall venting capability
    • Vacuum system features a totally enclosed combustion chamber
    • Heavy duty draft inducer assembly features permanently lubricated totally enclosed ball bearing motor for maintenance-free operation
    • Highly efficient aluminum reflectors
    • Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass
    • Diagnostic monitoring light system
    • 120V supply required
    • CSA certified
    • 5 Year Warranty on tubes
    • 1 year warranty on unit

MANUFACTURER SPECS


    • Btu/Hr: 75000

    • Tube Length –Feet: 20'

    • Type: U Tube - Vacuum (Negative Pressure)

    • Minimum Mounting Height At Horizontal: 13 FT

    • Minimum Mounting Height At 45 Degree Angle: 12 FT

    • Gas Type: Natural

    • Burner Pressure WC": 3.5 " WC

    • Supply Pressure- Max WC": 14 " WC

    • Supply Pressure- Min WC": 5 " WC

    • Voltage: 12O V

    • Amps: 2.4 A

    • Ignition: Direct Spark Ignition

    • Assembly: Field Assembled

    • Construction: Cast Iron Burner/ Aluminum Reflectors / Aluminized Steel - Hot Rolled Steel Tubes

    • Overall Length: 12' 9"

    • Width - Inches: 31 "

    • Height - Inches: 6- 1/4"

    • Min Clearances To Combustibles At Horizontal: Side 27", Ceiling 6" (vented), Below 60", End 30"

    • Min Clearances To Combustibles At 45 Degree Angle: Front 48", Rear 12" , Ceiling 6" (vented), Below 60", End 30"

    • Shipping Method: 10 Ft. Long Tube and Reflectors & control/exhauster burner box

    • Thermostat: Line voltage or programmable line voltage thermostat

    • Flue Pipe Diameter: 4" round

    • Optional Outside Combustion Air: 4" round

    • Hanging Weight- Lbscorrosive / High Humidity Installation: 116.8

    • Corrosive / High Humidity Installation: No

    • Residential Certification: No

    • Length: 122 inch

    • Width: 18 inch

    • Height: 16 inch

  • Weight: 146 lbs.
