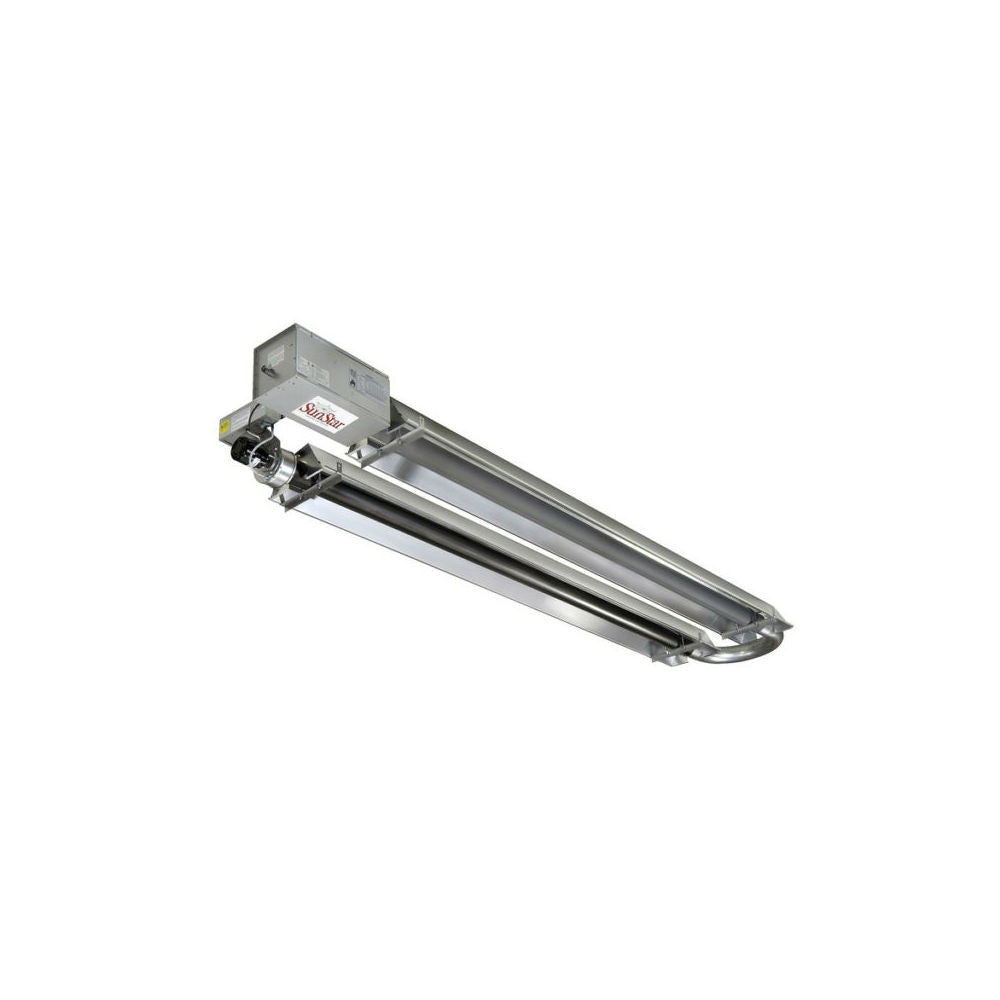

Sunstar SIU 40' 175K BTU Infrared U Tube Heater NG
Sunstar SIU 40' 175K BTU Infrared U Tube Heater NG
No reviews
Regular price
$1,325.00 USD
Regular price
Sale price
$1,325.00 USD
Unit price
/
per
Sunstar SIU 40' 175K BTU Infrared U Tube Heater Natural Gas
Applications
- Manufacturing Plants
- Warehouses
- Auto Dealerships
- Aircraft Hangars
- Loading Docks
- Weld Shops
- Fire Stations
- Gymnasiums
- Garages
- Machine Shops
- Tennis Courts
- Maintenance Shops
- Farm Buildings
- Truck Service Areas
- Auto Body Shops
Vacuum System
- Products of combustion are pulled through the combustion chamber for increased radiant efficiency and greater safety
- No draft hoods, totally enclosed combustion chamber
- Heavy duty draft inducer assembly with permanently lubricated, totally enclosed and heavy duty ball bearing motor for maintenance-free operation
- 30 second per-purge period before ignition
- Diaphragm air switch for proof of venting before gas flow and ignition
Radiant Emitter Tube System
- 4” O. D. heat treated aluminized steel combusttion chamber (10’ length)
- Standard highly emissive radiant tubes (10’ lengths) Optional aluminized steel radiant tubes (Though Guy Option)
- 5 year limited warranty on all tubes
- Suitable for horizontal or angle mounting up to 45°
- Up to 75 feet sidewall vent capability
Burner System
- Heavy duty cast iron burner
- Reliable direct spark ignition system and 100%
- Gas Shut-Off Safety Control
- Burner inspection sight glass
- Step-opening redundant combination gas valve for quiet ignition and added safety
- Inside or outside air for combustion
- Up to 50 ft. outside combustion air capability
- Diagnostic Monitoring Light System
Reflector System
- Highly efficient aluminum reflectors
- Individual reflectors can be rotated up to 45° to direct heat where needed
- Optional end, corner, U-bend and side extension reflectors
