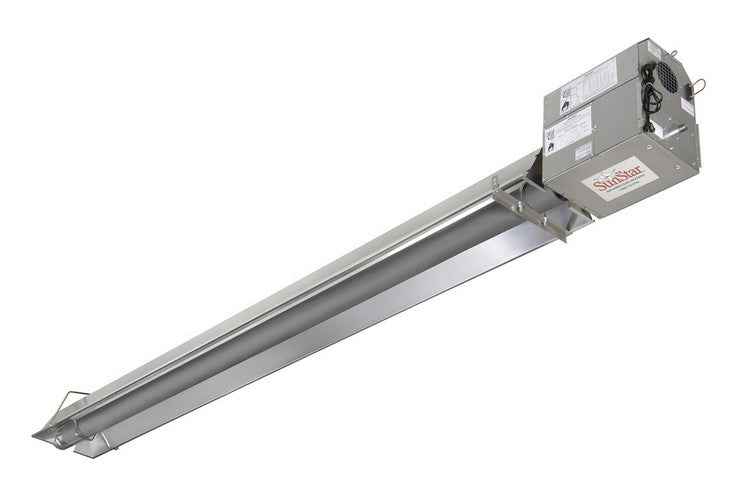

Sunstar SPS 50' 200K BTU LP Radiant Tube Heater
Sunstar SPS 50' 200K BTU LP Radiant Tube Heater
Sunstar SPS 50' 200K BTU LP Radiant Tube Heater
The Economical Alternative for Hard-to-Heat Spaces
Whether you need to heat your warehouse, garage, or other hard-to-heat spaces, the SunStar SPS/U Series infrared heaters provide both the field efficiency of radiant heat and the installation flexibility you need…and all at a comfortable price.
- 8 different Btu sizes and more than 60 different configurations to custom design your infrared heating system
- CSA design certified
- Available in natural and propane gas
- Optional elbows and corner reflectors
- Optional decorative grille
- Sidewall or through the roof venting
- Vented or indirect vented operation
- Includes 36″ stainless steel gas connector
Push Through System
- Products of combustion are pushed through the combustion chamber
- No draft hoods, totally enclosed combustion chamber
- Blower motor totally enclosed in the burner box. Ideal for applications where minimal noise (less than 60 dB) is desired.
- Heavy duty permanently lubricated ball bearing, totally enclosed motor for maintenance-free operation
- 30 second pre-purge before ignition and 30 second post-purge after thermostat is satisfied
- Diaphragm air switch for proof of venting before gas flow and ignition
Gas Shut-Off Safety Control
- Burner inspection sight glass
- Step-opening redundant combination gas valve for quite ignition and added safety
- Inside or outside air for combustion
- Up to 25 ft. outside combustion air capability
- Standard outside combustion air intake
- Diagnostic Monitoring Light System
Radiant Emitter Tube System
- 4” O.D. heat treated aluminized steel combustion chamber (10’ length)
- Standard highly emissive radiant tubes (10’ lengths)
- Optional aluminized steel radiant tubes (Tough Guy Option)
- 5 year limited warranty on all tubes
- Suitable for horizontal or angle mounting up to 45°
- Up to 25 feet sidewall vent capability
Burner System
- Heavy duty cast iron burner
- Reliable direct spark ignition systems and 100% gas shut-off safety control
- Burner inspection sight glass
- Step-opening redundant combination gas valve for quiet ignition and added safety
- Inside or outside air for combustion
- Up to 25 ft. outside combustion air capability
- Standard outside combustion air intake
- Diagnostic Monitoring Light System
Reflector System
- Highly efficient aluminum reflectors
- Individual reflectors can be rotated up to 45° to direct heat where needed
- Optional end, corner, U-bend and side extension reflectors
Applications
- Manufacturing Plants
- Warehouses
- Auto Dealerships
- Aircraft Hangars
- Loading Docks
- Weld Shops
- Car Washes
- Fire Stations
- Greenhouses
- Gymnasiums
- Garages
- Machine Shops
- Tennis Courts
- Swimming Pools
- Maintenance Shops
- Farm Buildings
- Truck Service Areas
- Auto Body Shops
Introducing TISS™ Tube Integrity Safety Shut-Off System
SunStar’s patent pending innovative safety feature for positive pressure radiant tube heaters is called the “Tube Integrity Safety System” (TISS™).
In the unlikely event of a tube failure, TISS™ has been designed to automatically shut off the heater. The revolutionary TISS™ uses a simple principle to place an electrically insulated aluminum wire in tension above the reflector. Low voltage is then continuously passed along the wire in line with the gas control circuit. If heat levels increase due to heat exchanger failure, the wire melts and the safety circuit is broken, breaking the 24 volt circuit and shutting down the heater.
You may never know it is there, but it provides peace of mind.
SPS Dimensions
| Model | Total Tube Length | Overall Dimensions "L" (FT) |
|---|---|---|
| SPS (40) | 10' | 17' |
| SPS (40, 50, 75) | 20' | 22' |
| SPS (50, 75, 100, 125) | 30' | 32' |
| SPS (100,125, 150, 175) | 40' | 42' |
| SPS (125, 150, 175, 200) | 50' | 52' |
| SPS (150, 175, 200) | 60' | 62' |
| SPS (175, 200) | 70' | 72' |
*Model number is based on Btu/hr input (e.g., 100,000 Btu/hr), total emitter length (e.g., 40 feet) and control suffix for gas type (eg. natural gas-single stage-N5 or two stage-N7). For example, the model number for a straight tube single stage heater would be SPS100-40-N5 and for a U-tube heater would be SPU100-40-N5.
| Model | BTU/HR Input | Total Emitter Tube Length | ||||||
|---|---|---|---|---|---|---|---|---|
| 10 FT. | 20 FT. | 30 FT. | 40 FT. | 50 FT. | 60 FT. | 70 FT. | ||
| SPS 40 | 40,000 | ✓ | ✓ | |||||
| SPS 50 | 50,000 | ✓ | ✓ | ✓ | ||||
| SPS 75 | 75,000 | ✓ | ✓ | ✓ | ||||
| SPS 100 | 100,000 | ✓ | ✓ | |||||
| SPS 125 | 125,000 | ✓ | ✓ | ✓ | ✓ | |||
| SPS 150 | 150,000 | ✓ | ✓ | ✓ | ||||
| SPS 175 | 175,000 | ✓ | ✓ | ✓ | ||||
| SPS 200 | 200,000 | ✓ | ✓ | ✓ | ||||
