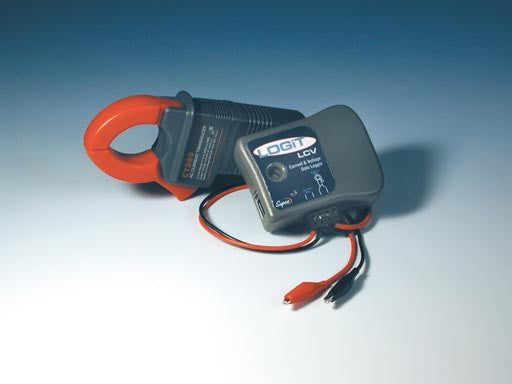

Supco LCV LOGiT Current & Voltage Logger

Supco LCV LOGiT Current & Voltage Logger

For Simultaneous Current and Voltage Monitoring such as Compressor and Fan Run Cycles, Troubleshooting, Intermittent problems, Verification of Power Conditions

Standard Accessories:

• 300 A Current Probe

Features/Benefits:

• Stores over 10,000 measurement points
• 1 second to 18 hour sample rate; 1 second increments
• Custom user identification (30 Characters)
• Real time data monitoring
• Over/Under Alarm threshold settings
• Visual alarm indication
• User selectable Recording Start (specify date & time, immediate after setup or on door close)
• Tamper proof
• 20 month battery life (at 1 minute sample rate)
• Data rollover option
• Unique logger ID
• One PC Software operates with all loggers (LLSU not included)*
• Graphic or text data
• Zoom capability
• USB interface optional (USBS)
• 1 year warranty

Specifications:

Sample Point Capacity

10,750 points for Current & Voltage
21,500 points for Current OR Voltage

Alarms

Over and under alarms for Current & Voltage

Current Range

0-300 Amps AC

Current Accuracy

+/- 5%

Current Resolution

0.1 Amp AC

Voltage Range

0-500 Volts AC

Voltage Accuracy

+/-1 V AC

Time Accuracy

+/-100ppm @75 F

Operating Range Temperature

32 F to 140 F (0 C to 60 C) using Alkaline Battery.
-40 F to 150 F (-40 C to 65 C) using Lithium Battery.

Humidity

0% to 95%, Non-condensing

Storage Temperature

-40 F to 170 F (-40 C to 77 C)

Calibration

Single point offset calibration available through software. Current & Voltage are factory calibrated.

Dimensions

3" x 2.5" x 1.1" (7.6cm x 6.4cm x 2.8cm)

Power Source

9V Alkaline or Lithium battery

BatteryLife (average use)

20 Months using Alkaline Battery
40 Months using Lithium Battery

*NOTE: Logger needs optional LLSU Software Package to program data logger and download data for analysis. It is not included with any LOGiT Data Logger.
