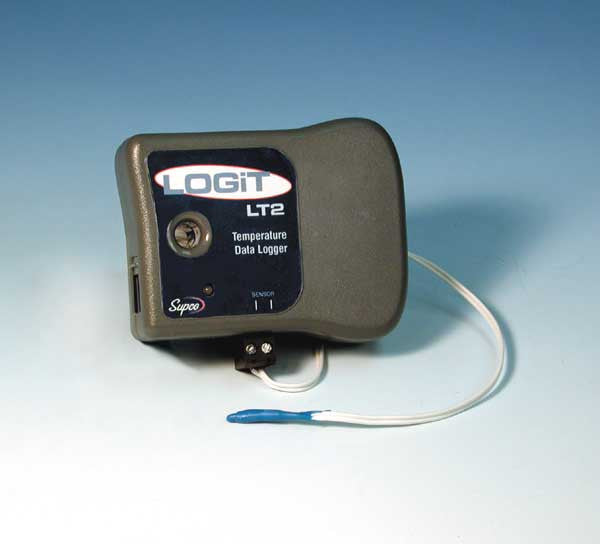

Supco LT2 LOGiT Temperature Logger (Internal & External)

Supco LT2 LOGiT Temperature Logger (Internal & External)

For Temperature and Temperature/Humidity Sensitive Applications such as Refrigerators/Freezers, Greenhouses, Florists, Commercial Refrigeration Systems, Medical Storage Facilities, Museums, and Laboratories.

Standard Accessories:

• 15' Remote Temperature Sensor

Optional Accessories:

• USB to Serial Interface (USBS)
• Lithium Battery (LITH9B)
• 25 Temperature Probe Extension Wire (SW25)
• 50 Temperature Probe Extension Wire (SW50)
• 75 Temperature Probe Extension Wire (SW75)
• 100 Temperature Probe Extension Wire (SW100)



Features/Benefits:

• Stores over 10,000 measurement points
• 1 second to 18 hour sample rate; 1 second increments
• Custom user identification (30 Characters)
• Real time data monitoring
• Over/Under Alarm threshold settings
• Visual alarm indication
• User selectable Recording Start (specify date & time, immediate after setup or on door close)
• Tamper proof
• 20 month battery life (at 1 minute sample rate)
• Data rollover option
• Unique logger ID
• One PC Software operates with all loggers (LLSU not included)*
• Graphic or text data
• Zoom capability
• USB interface optional (USBS)
• 1 year warranty

Specifications:

Sample Point Capacity

21,500 points (Single channel)
10,750 points and differential (Dual channel)

Temperature Range

32 to 140°F (0°C to 60°C) w/ Alkaline Battery
-40°F to 150°F (-40°C to 65°C) w/ Lithium Battery

Range (External Sensor)

-40°F to 150°F (-40°C to 65°C)

Accuracy

+/- 1.0°F (0.5°C)

Resolution

0.1 F (0.05 C)

Time Accuracy

+/-100ppm @75 F

Operating Range Temperrature

32°F to °F (0°C to 60°C) using Alkaline Battery
-40°F to 150°F (-40°C to 65°C) using Lithium Battery

Operating Range Humidity

0% to 95%, Non-condensing

Storage Temperature

-40°F to 170°F (-40°C to 77°C)

Calibration

Single point offset calibration available through software.

Dimensions

3" x 2.5" x 1.1" (7.6cm x 6.4cm x 2.8cm)

Power Source

9V Alkaline or Lithium battery

BatteryLife (average use)

18 Months using Alkaline Battery
36 Months using Lithium Battery

*NOTE: Logger needs optional LLSU Software Package to program data logger and download data for analysis. It is not included with any LOGiT Data Logger.
