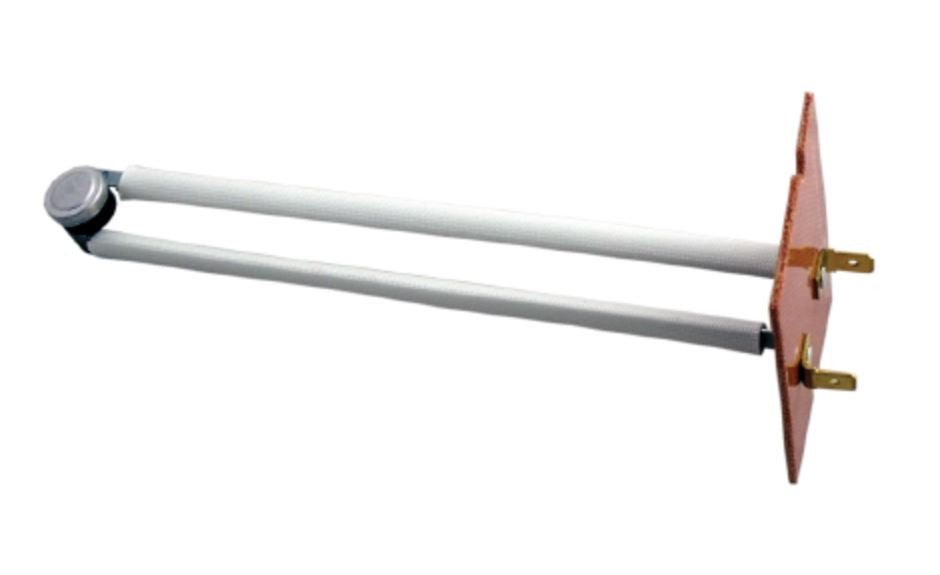

Supco SHL524 Open L170-20 Limit Switch

SHL524--PLENUM THERMOSTAT

The SHL series of 1/2" bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design. Thermostat opens when temperature in the furnace plenum area is too high
Shuts down furnace until the temperature cools to an acceptable level
Close Temp. °F: 150; Open Temp. °F: 170;Width: 1.88";Height: 2.8";Length: 7.12";

Features/Benefits

• Economical

• Direct OEM replacements

• UL® recognized

• CSA approved

Specifications

Applications

Plenum thermostats

Cross Reference

Replacement Part: 47-21711-10

Manufacturer :Lennox
