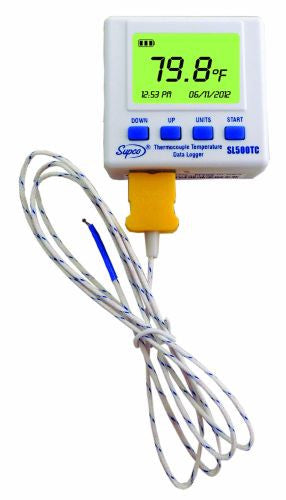

Supco SL500TC Thermocouple Temperature Data Logger w/LCD

The SL500 series of temperature and temperature/humidity data loggers are simple to use, versatile test instruments which can be used in a multitude of applications. Each data logger includes Windows based software (XP/VISTA/7), operators manual on CD and USB interface cable and battery. Flexible sample rates range from one second to 9 hours.

Windows based software is easy to set up and use. All functions include sample rate, logging duration, start mode, logging mode and visual high/low temperature alarms. Once logging is complete the data can be downloaded from the logger, plotted & exported to an Excel or text file format for analysis.

Features:

• LCD real time display of temperature (°F or °C), time, date, alarm status, logging status and battery life
• User selectable stop on memory full or memory rollover for continuous logging
• Delayed start or push button logging control
• Read data on Logger Display
• Displays alarm icon for high/low alarm status
• Non-volatile EEPROM memory retains data even if battery fails
• USB interface for fast data transfer
• Compact, light-weight, simple to use
• 1-year warranty

Includes:

• SL500TC Data Logger
• Type K insulated beaded wire thermocouple 40 (1m).
• Manual
• Software

Applications:

• Coolers
• Freezers
• Greenhouses
• Museums
• Shipping Containers
• Computer Rooms
• Warehouses
• Environmental Monitoring
• Food Storage
• Kennels
• Laboratory

Specifications:

Sample Point Capacity:

32,638 temperature points.Other Supported Thermocouples: J, E, N, T, S, R, B, C

Display:

Current reading and time, logging status, alarm status,

recorded sample history, battery level, thermocouple type.

Displays temperature up to 1999°F or 1999°C.

Alarms:

Visual over and under temperature alarms.

Display Temperature Resolution:

0.2°F (0.1°C) up to 199.9°F or °C. 1°F or 1°C above 200°F or 200°C

Logged Temperature Resolution:

0.2°F (0.1°C)

Thermocouple Impedance:

50 Ohms maximum for specified accuracy

Cold Junction Temperature Accuracy:

+/- 0.5°F (0.3°C)

Calibration:

User single point offset calibration is available through software.

Calibration is password protected.

Operating Temperature:

0°F to 131°F (-18°C to 55°C)

Storage Temperature:

-20°F to 175°F (-30°C to 80°C)

Time Accuracy:

+/- 100 ppm @ 75°F (24°C)

Dimensions:

2.15 x 2.25 x 1.2 (5.5cm x 5.7cm x 3.0cm)

Power Source:

3-AAA batteries (Alkaline or Lithium recommended), included.

Battery Life:

2-years average use
