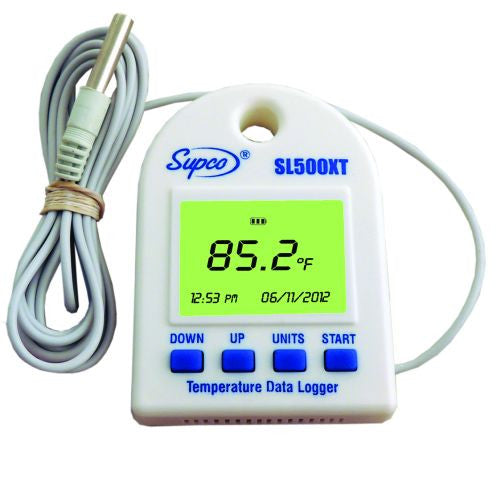

Supco SL500XT External Temperature Data Logger w/LCD

The SL500 series of temperature and temperature/humidity data loggers are simple to use, versatile test instruments which can be used in a multitude of applications. Each data logger includes Windows® based software (XP/VISTA/7), operator’s manual on CD and 3’ USB interface cable and battery. Flexible sample rates range from one second to 9 hours.

Windows® based software is easy to set up and use. All functions include sample rate, logging duration, start mode, logging mode and visual high/low temperature alarms. Once logging is complete the data can be downloaded from the logger, plotted & exported to an Excel or text file format for analysis.

Features:

• LCD real time display of temperature (°F or °C), time, date, alarm status, logging status and battery life
• User selectable stop on memory full or memory rollover for continuous logging
• Delayed start or push button logging control
• Read data on Logger Display
• Displays alarm icon for high/low alarm status
• Non-volatile EEPROM memory retains data even if battery fails
• USB interface for fast data transfer
• Compact, light-weight, simple to use
• 1-year warranty

Includes:

• SL500XT Data Logger
• Manual
• Software

Applications:

• Coolers
• Freezers
• Greenhouses
• Museums
• Shipping Containers
• Computer Rooms
• Warehouses
• Environmental Monitoring
• Food Storage
• Kennels
• Laboratory

Specifications:

Sample Point Capacity:43,344 temperature points

Display: Current reading and time, logging status, alarm status, recorded sample history, battery level.
Alarms: Visual over and under alarm indicator for temperature and /or humidity.
Calibration: User single point offset calibration is available through software. Calibration is password protected.
Operating Temperature: -5°F to 160°F (-20°C to 70°C)
Storage Temperature Range: -20°F to 175°F (-30°C to 80°C)
Time Accuracy: +/- 100 ppm @ 75°F (24°C)
Temperature Accuracy: +/- 0.9°F (0.5°C) for the range 0°F to 120°F (-17°C to 50°C)
Temperature Resolution (PC Software): 0.05°F (0.03°C)
Dimensions: 2.15" x 2.25" x 0.55" (5.5cm x 5.57cm x 1.4cm)
Power Source: 3V CR2032 Lithium (Included)
Battery Life: 3-years average use
