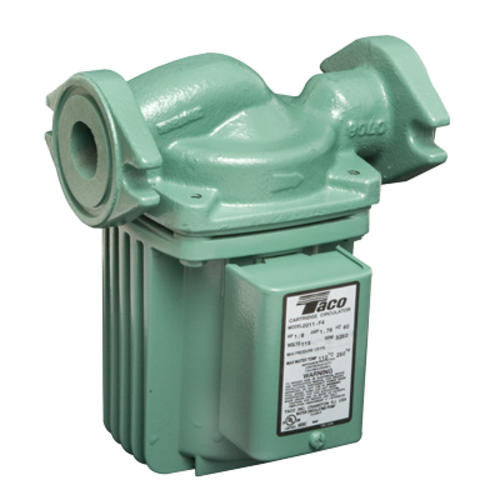

Taco 0011-F4 Outdoor Wood Furnace Circulator Pump

Taco 0011-F4 Outdoor Wood Furnace Circulator Pump

Performance Data
Flow Range: 0-28 GPM
Head Range: 0-30 Feet
Minimum Fluid Temperature: 40 F (4 C)
Maximum Fluid Temperature: 230 F (110 C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged

The Taco High Velocity Series 0011 Cartridge Circulator is specifically designed for high-head/medium-flow applications in large residential/light commercial closed-loop hydronic heating and chilled water cooling systems.

• Exclusive, anti condensate baffle (ACB) protects motor windings on chilled water jobs.
• Available in cast iron
• Unique, "00" family replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit.
• Universal flange-to-flange dimensions and orientation allow the 0011 to easily replace other models.

• Exclusive ACB (Anti-Condensate Baffle) with Ambient Air Flow€”Protects motor windings against condensate buildup.
• High Velocity Performance
• Compact Design
• Quiet, Efficient Operation
• Unique Replaceable Cartridge Design €“ Field Serviceable
• Direct Drive-Low Power Consumption
• Self-Lubricating
• No Mechanical Seal
• Unmatched Reliability --Maintenance Free
• Universal Flange-to-Flange Dimensions
• Cast Iron Construction


• High Pressure Drop Boilers
• Fan Coil Units
• Heat Exchangers
• Large Radiant Heating Systems
• Large Heat Recovery/Geothermal Systems
