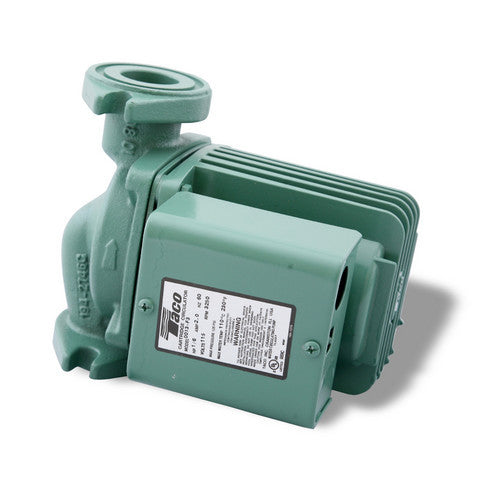

Taco 0013 Cast iron Circulator Pump 1/6 hp

Taco 0013-F3 Outdoor Wood Furnace Circulator Pump

Performance Data
Flow Range: 0-33 GPM
Head Range: 0-33 Feet
Minimum Fluid Temperature: 40 F (4 C)
Maximum Fluid Temperature: 230 F (110 C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged

The Taco Model 0013 Cartridge Circulator is specifically designed for high-head/high-flow applications in large residential/light commercial systems.
Exclusive, Anti Condensate Baffle (ACB) protects motor windings on chilled water jobs.
Unique, "00" family replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit. Universal flange-to-flange dimensions and orientation allow the 0013 to easily replace other models.

Features

• Exclusive Anti-Condensate Baffle (ACB) with Ambient Air Flow-Protects motor windings against condensate buildup.
• High Velocity Performance
• Compact Design
• Quiet, Efficient Operation
• Unique Replaceable Cartridge Design - Field Serviceable
• Direct Drive-Low Power Consumption
• Self-Lubricating
• No Mechanical Seal
• Unmatched Reliability -Maintenance Free
• Universal Flange-to-Flange Dimensions
• Cast Iron Construction


• High Pressure Drop Boilers
• Fan Coil Units
• Heat Exchangers
• Larger Radiant Systems
• Heat Recovery Systems
• Geothermal Systems
