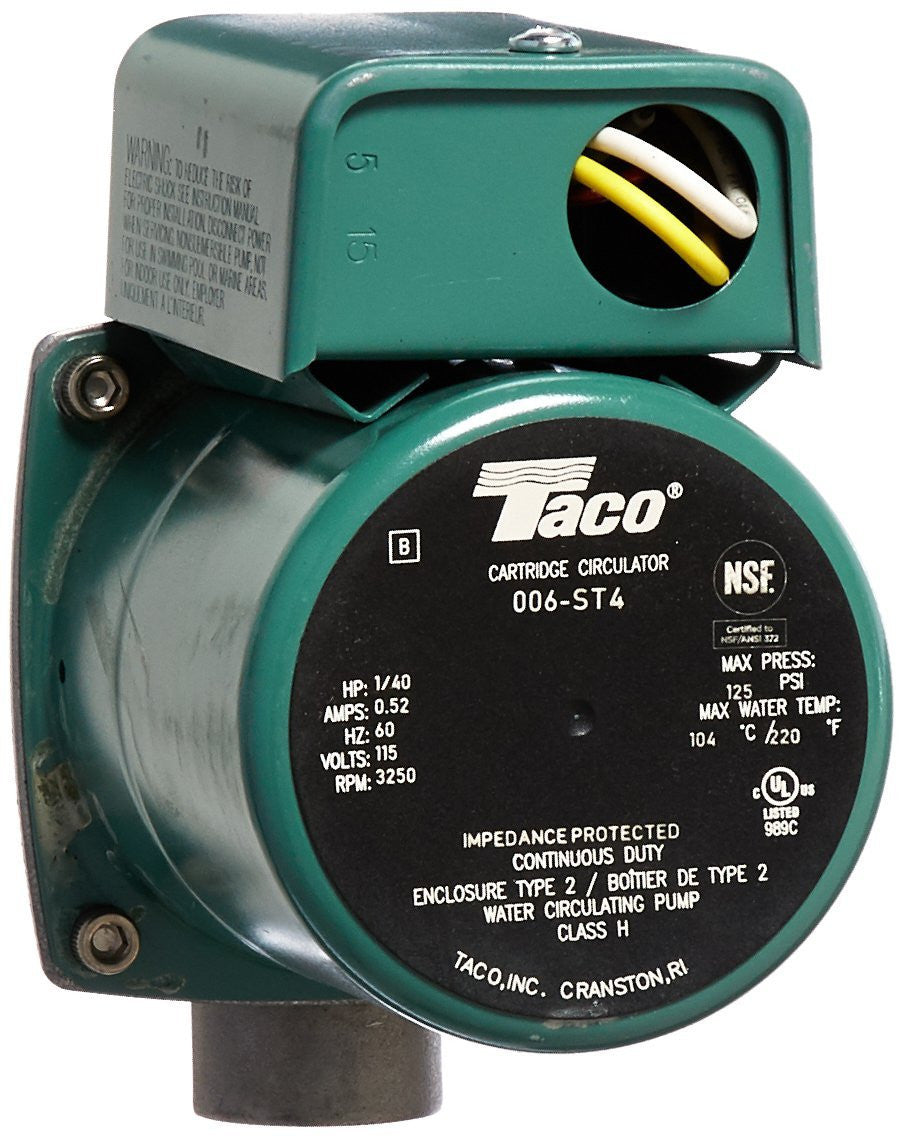

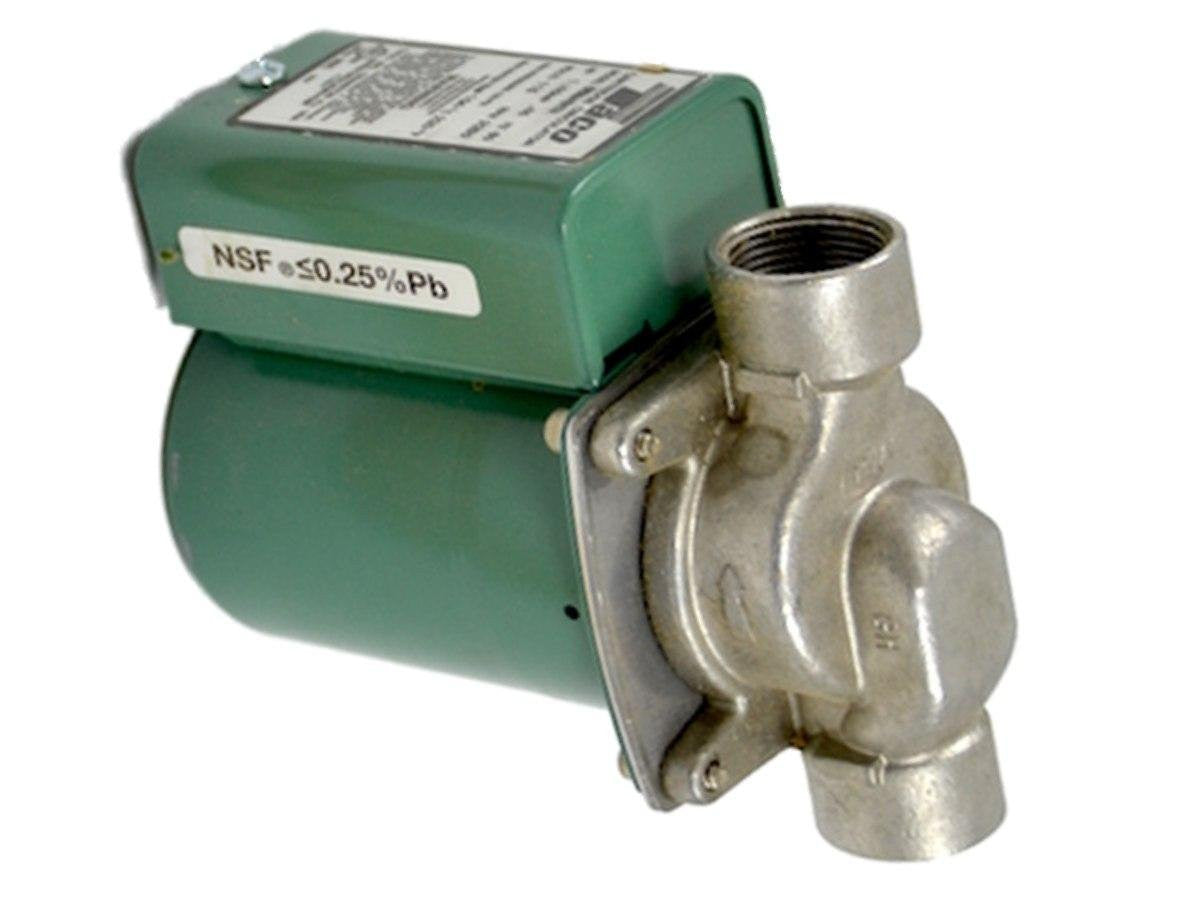

Taco 006-ST4 Stainless Threaded Cartridge Circulator Pump

Taco 006-ST4 Stainless Steel Threaded Cartridge Circulator Pump

The Taco 006 cartridge circulator is designed for circulating hot and chilled fresh water in a wide range of open and closed loop applications. Its unique, field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, The self-lubricating, maintenance free design provides quiet, efficient operation and unmatched reliability.

Features

• Standard High Capacity Output
• Quiet, Efficient Operation
• Direct Drive-Low Power Consumption
• Unique Replaceable Cartridge Design-Field Serviceable
• Self-Lubricating
• No Mechanical Seal
• Unmatched Reliability -Maintenance Free
• 3/4" Threaded NPT
• Stainless Steel Construction

Performance Data

• Flow Range: 0-10 GPM
• Head Range: 0-9 Feet
• Minimum Fluid Temperature: 40 F (4 C)
• Maximum Fluid Temperature: 220 F (104 C)
• Maximum Working Pressure: 125 PSI

Typical Applications

• Hydronic heating
• Domestic hot water recirculation
• Hydro-air heating/cooling
• Heat recovery units
• Water source heat pumps
• Drain down open loop solar systems
• Potable water applications
