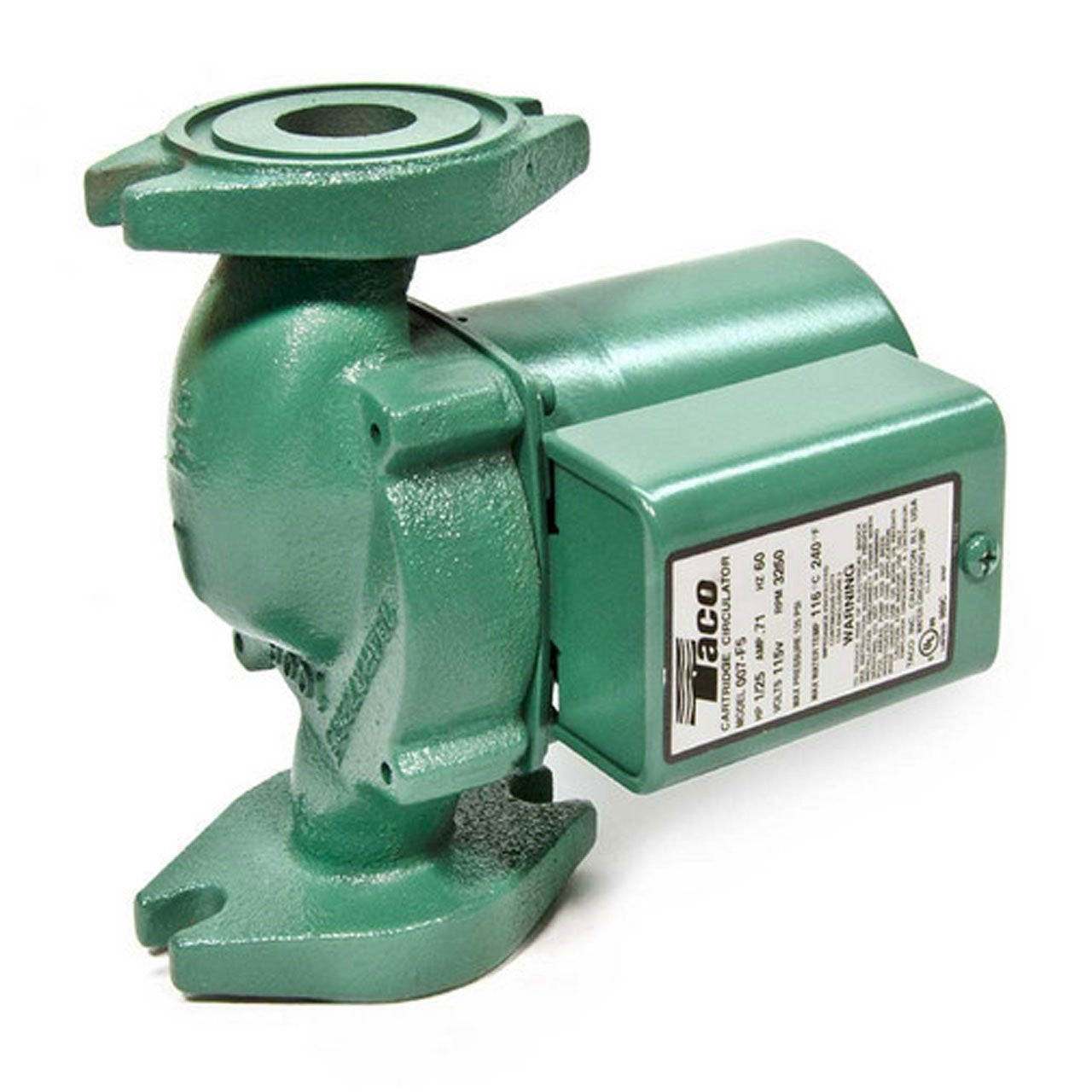

Taco 007-F5-7IFC Cartridge Circulator Pump w/IFC

007-F5-7IFC

The 007-IFC is designed to simplify piping, reduce installation costs and improve system perfor-mance when zoning with 00 circulators. By locating the IFC inside the pump, a separate in-line flow check is eliminated. The low pressure drop of the IFC increases flow performance vs. in-line flow checks. Both the IFC and the cartridge are easily accessed for removal and service.

Features:

• Integral Flow Check (IFC)
• Simplifies piping Prevents reverse flow and gravity flow
• Eliminates separate in-line flow check
• Reduces installed cost
• Improves system performance
• Easy to service
• Unique replaceable cartridge-field serviceable
• Unmatched reliability-maintenance free
• Quiet, efficient operation
• Self lubricating, No mechanical seal
• Wide range of applications
• Cast Iron construction
• Flanged connections

Performance Data:

• Flow Range: 0 - 17 GPM
• Head Range: 0 - 8.5 Feet
• Minimum Fluid Temperature: 40?F (4?C)
• Maximum Fluid Temperature: 230°F (110?C)
• Maximum Working Pressure: 125 psi
• Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged
