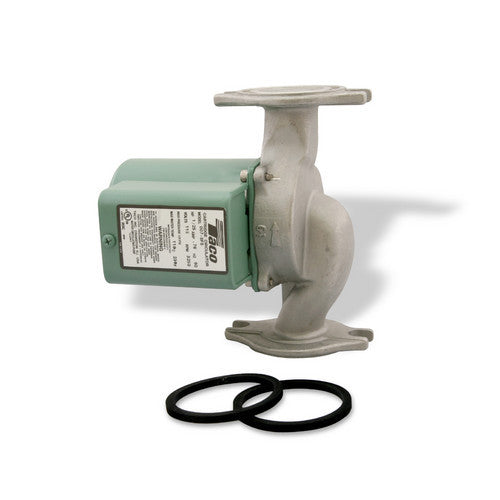

Taco 007-SF5 Stainless Steel Cartridge Circulator Pump

The Taco 007 Cartridge Circulator is the most popular Hydronic circulator sold today. With its field serviceable cartridge design, the compact 007 provides quiet, efficient operation and unmatched reliability. The self-lubricating, maintenance free design and flow characteristics make it the ideal Hydronic circulator for a wide range of applications.

The Taco 007 is a cartridge style, maintenance free, wet-rotor, in-line, single stage circulator

pump. It is designed for quiet operation in Hydronic heating, Radiant heating, Hydro-Air fan coils, Indirect water heaters, Chilled fresh water, and Domestic Water Recirculation systems. Available in Cast Iron or Stainless Steel construction with universal flanged connections, the unique replaceable cartridge contains all of the moving parts and allows the circulator to be easily serviced instead of replacing the entire unit.

Performance Data

Flow Range: 0-23 GPM
Head Range: 0-11 Feet
Minimum Fluid Temperature: 40 F (4 C)
Maximum Fluid Temperature: 230 F (110 C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged

Features & Benefits:

• Standard High Capacity Output
• Compact Design
• Quiet, Efficient Operation
• Unique Replaceable Cartridge Design €“ Field Serviceable
• Direct Drive-Low Power Consumption
• Self-Lubricating
• No Mechanical Seal
• Unmatched Reliability --Maintenance Free
• Universal Flange-to-Flange Dimensions
• Stainless Steel Construction

Typical Applications

• Hydronic Heating
• Radiant Heating
• Hydro-Air Fan Coils
• Indirect Water Heating
• Chilled Water Cooling
• Domestic Water Systems
