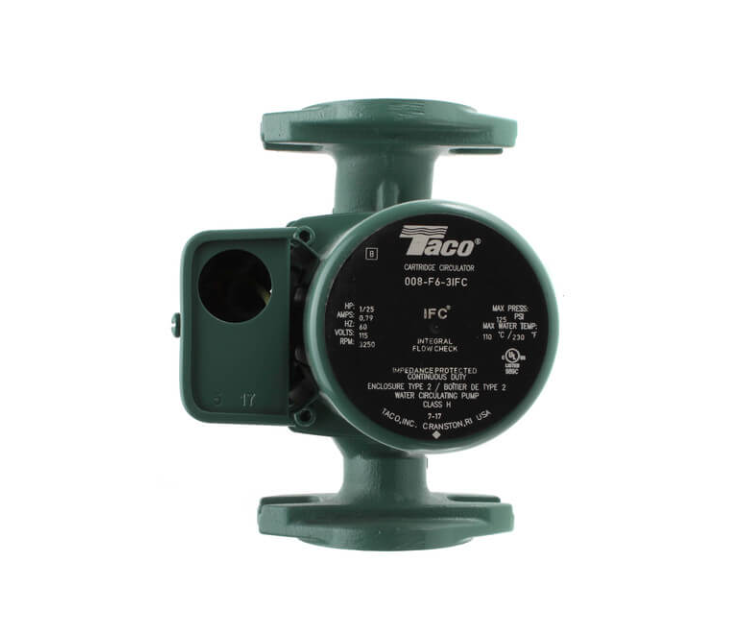

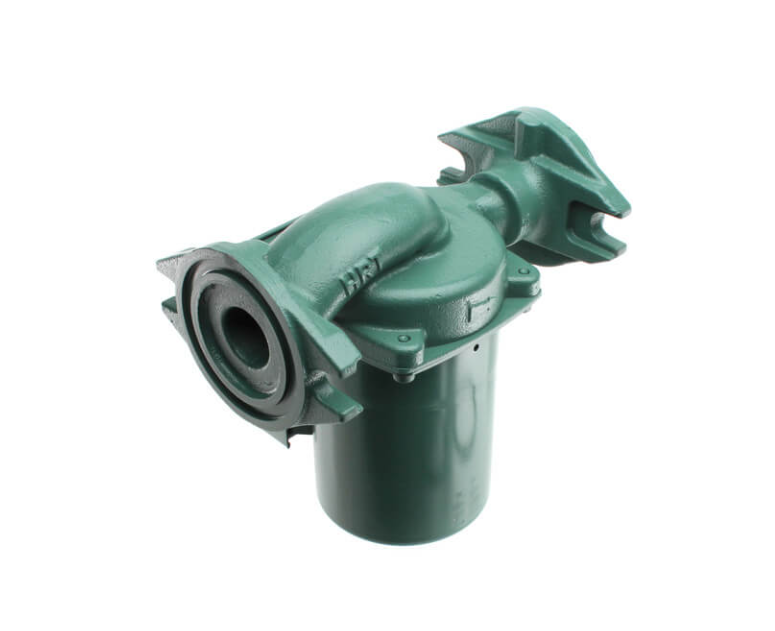

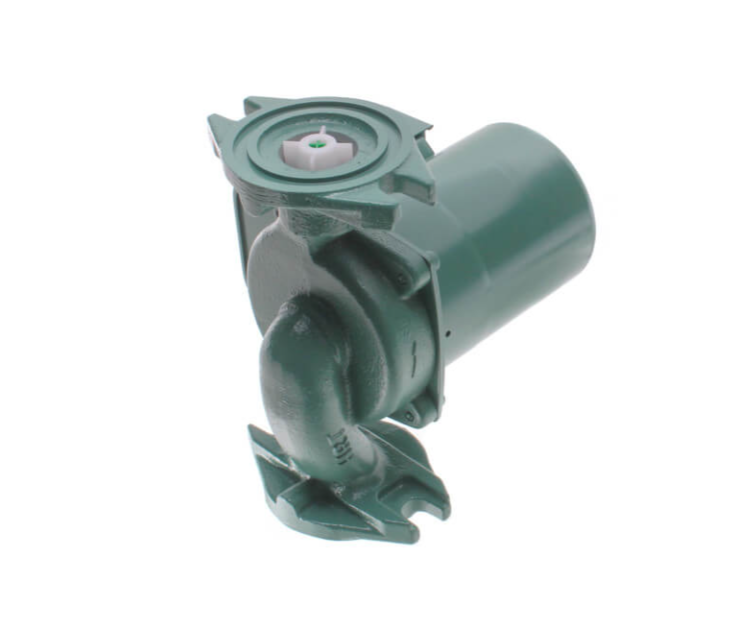

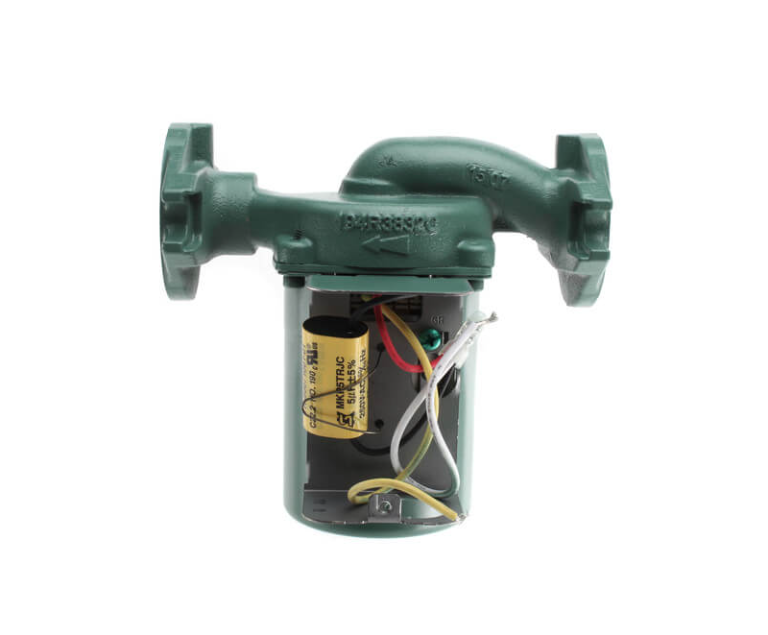

Taco 008-F6-3IFC Cast Iron Circulator Pump with IFC

Taco 008-F6-3IFC Cast Iron Circulator Pump with IFC

$223.03 USD
$223.03 USD
Sale Sold out

The 008-IFC features a removable Integral Flow Check designed to simplify piping, reduce installation costs and improve system performance. The spring-loaded IFC replaces a separate in-line flow check to ensure protection against reverse flow and gravity flow.

Features

  • Integral Flow Check (IFC)
  • Simplifies piping
  • Prevents gravity flow and reverse flow
  • Eliminates separate in-line flow check
  • Reduces installed cost
  • Improves system performance
  • Easy to service
  • Unique replaceable cartridge - Field serviceable
  • Unmatched reliability - Maintenance free
  • Quiet, efficient operation
  • Self lubricating, No mechanical seal
  • Wide range of applications
  • Rotated Flange

Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 008-044RP
Valve Assembly Trans/Relay: 006-047RP

Material:

Cast Iron
Amperage:

0.79
Application:

Heating
Voltage:

115V
Max Pressure (PSI):

125
Type:

Pump
Horse Power:

1/25
Connection Type:

Flanged x Flanged
Connection Size:

3/4"

1"

1-1/4"

1-1/2"
Flow Range (GPM):

0-12.5
Max Flow (GPM):

12
Max Head (Ft):

15
Head Range (ft.):

0-15
Hertz:

60
Phase:

1
RPM:

3250
Temperature Range (F):

40°F to 230°F
