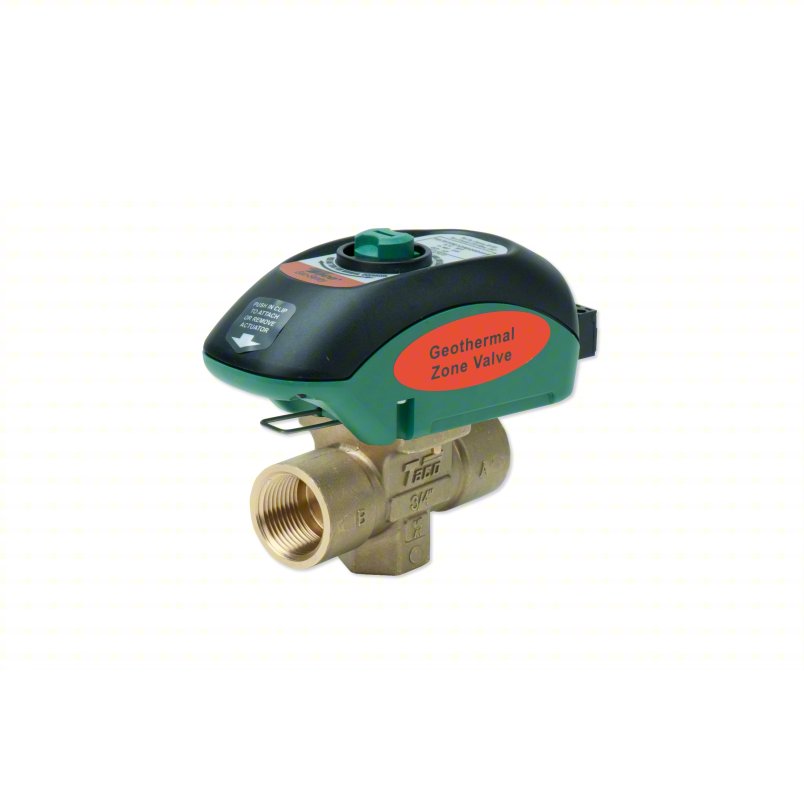

Taco V075T2G2ZA024Q4A2 Zone Valve, 2 Way, NC, 3/4 In NPT
Taco V075T2G2ZA024Q4A2 Zone Valve, 2 Way, NC, 3/4 In NPT
No reviews
Regular price
$294.50 USD
Regular price
$235.60 USD
Sale price
$294.50 USD
Unit price
/
per
Dimensions
| Depth (In.) | 2 3/8 in |
| Connection Type/Size (In.) | NPT 3/4 |
| Width (In.) | 5 5/16 in |
| Height (In.) | 4 1/4 in |
| Overall Length | 4 1/4 in |
| Overall Depth | 2 3/8 in |
| Port Connection Size | 3/4 in |
| Overall Width | 5 5/16 in |
Details
| Item | Motorized Zone Valve |
| Body Material | Brass |
| Voltage | 24 |
| For Use With | Geothermal Systems |
| Electrical Connections | 2-Pin Screw Connectors for Power and End Switch |
| Safe Working Water PSI | 300 psi |
| Coefficient of Volume | 10.3 |
| Type | Two Way, Normally Closed, Geothermal System |
| Includes | End Switch |
| Max. Water Temp. (Deg. F) | 220 Degrees F |
| Actuator Return Action | Double Acting |
| Port Connection Type | NPT |
| Port Connection Gender | Female |
| Fluid Temperature - Minimum | 20 Degrees F |
| For Media | Steam, Water, Water-Ethanol Solution to 25%, Water-Glycol Solution to 50%, Water-Methanol Solution to 25% |
| Application | Geothermal |
| Operating Temperature - Maximum | 220 Degrees F |
| Fluid Temperature - Maximum | 220 Degrees F |
| Installation Orientation | Versatile |
| Spring Action | Non-Spring Return |
| Body Pattern | Two-Way |
| Valve Type | Ball |
| Actuator Voltage | 24V AC |
| Coefficient of Volume (Cv) | 10.3 |
| Actuator Type | Electric |
| Stem Material | Brass |
| Gasket/Plug Material | EPDM |
| Close-Off Pressure | 125 psi |
| Valve Action | Normally Closed |
| Actuator Control Signal | On/Off |
| Allowable Pressure - Maximum | 300 psi |
| Includes Actuator | Actuator Included |
