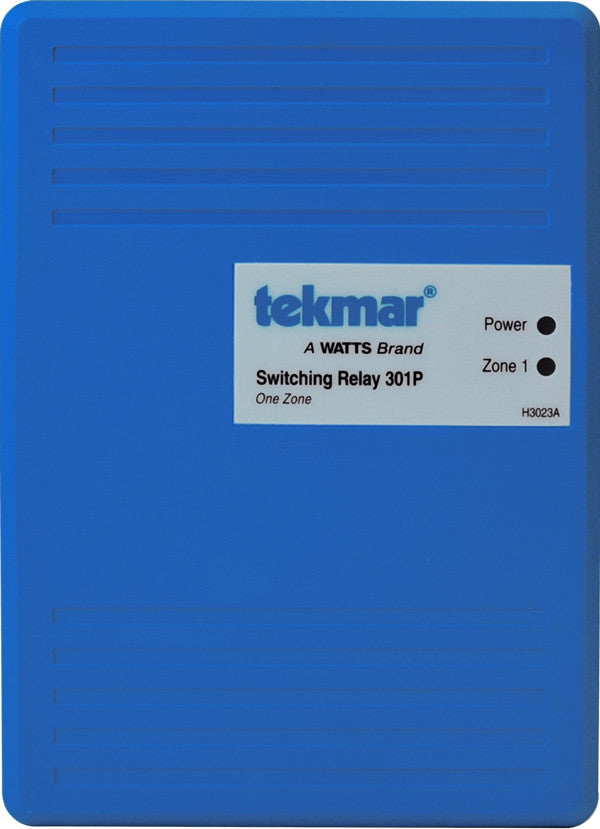

Tekmar 301P Switching Relay

Tekmar 301P Switching Relay

$77.70 USD
$77.70 USD
Sale Sold out

Tekmar 301P Switching Relay

  • 20 VA transformer

  • 3-year warranty

  • CSA approved

  • Compatible with all low voltage thermostats

  • Fuse protects pump

  • Hinged cover

  • LED for power and zone

  • Post purge

  • Pump exercising

  • Spare fuse included

  • Thermal circuit breaker protects transformer

  • Top, bottom and back conduit knockouts

Control Microprocessor control. This is not a safety (limit) control.
Packaged weight 2.5 lb. (1125 g)
Dimensions 6-11/16" H x 4-15/16" W x 2-7/16" D (169 x 123 x 62 mm)
Enclosure Cover: ABS plastic, Base: galvanized steel, NEMA type 1
Approvals CSA C US
Ambient conditions Indoor use only, 32 to 122°F (0 to 50°C), RH ≤90% non-condensing
Power supply 115 V (ac) ±10%, 60 Hz, 5 A
Transformer 20 VA at 24 V (ac), 16 VA available for thermostat
Control load 7.5 VA at 115 V (ac)
Fuse T5A 250 V slow blow, spare fuse included
Pump relay 230 V (ac), 5 A, 1/3 hp
Boiler XX end switch 24 V (ac), 5 A
Warranty Limited 3 Year Warranty
