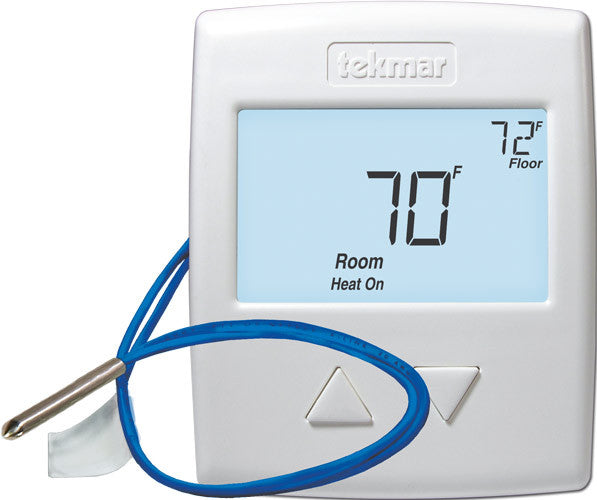

Tekmar 519 Radiant Thermostat - 1 Stage Heat w Slab Sensor 079

Tekmar 519 Radiant Thermostat - 1 Stage Heat w Slab Sensor 079

$114.45 USD
$114.45 USD
Sale Sold out

Tekmar 519 Radiant Thermostat - 1 Stage Heat, Includes Slab Sensor 079

  • Auto Heating Cycle

  • Backlight

  • Floor & Air Temperature Control

  • Freeze Protection

  • Includes Slab Sensor 079

  • Outdoor & Floor Temperature Display

  • Pulse Width Modulation

  • Radiant Floor Heating

Control Microprocessor control. This is not a safety (limit) control
Packaged weight 0.6 lb. (290 g)
Dimensions 3-11/16" H x 3" W x 15/16" D (94 x 76 x 24 mm)
Enclosure White PVC plastic, NEMA type 1
Approvals Meets Class B: ICES & FCC Part 15
Ambient conditions Indoor use only, 32 to 122°F (0 to 50°C), RH ≤90% Non-condensing
Power supply 10 to 30 V (ac/dc), 50/60 Hz, 1.8 VA standby, 56 VA max fully loaded, Class 2
Relay 30 V (ac/dc) 2 A, Class 2 circuits
Sensor NTC thermistor, 10 k¦ @ 77°F (25°C ±0.2°C) ß=3892
-Included Slab Sensor 079
-Optional tekmar type #: 070, 072, 073, 076, 077, 079, 084
Warranty Limited 3 Year Warranty
