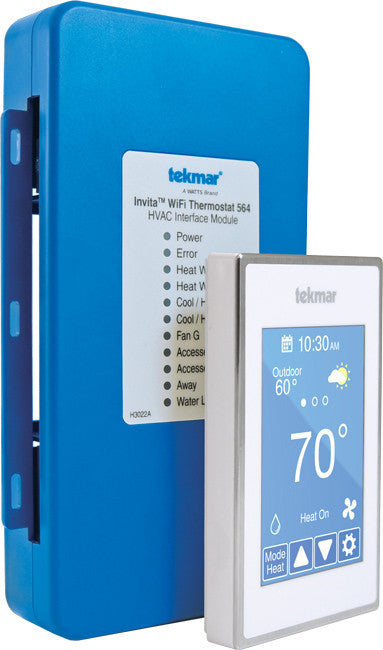

Tekmar 564 Invita Wifi Thermostat, White

Tekmar 564 Invita Wifi Thermostat, 2 Stage Heat/2 Stage Cool, White

• Away savings mode

• Energy monitoring

• Mobile and web app

• Multiple display colors

• Notifies of water leak with connection to Watts FloodSafe^® Water Detector Shutoff

• Outdoor temperature

• Programmable schedule with early start

• Relative humidity control

• Slim profile

• Ventilation

• Warning email notifications

• Weather

Specifications

Dimensions—Display: 4-1/2" H x 2-3/4" W x 9/16" D (114 x 70 x 14 mm), HVAC Interface Module: 7-7/16" H x 4-7/16" W x 1-1/4" D (112 x 56 x 31 mm)
Display—3.5" color touchscreen
Enclosure—Display: White PVC plastic, NEMA type 1, HVAC Interface Module: Blue PVC plastic, NEMA type 1
Approvals—Meets Class B: ICES-003 & FCC Part 15B
Ambient conditions—Display: Indoor use only, -4 to 122°F (-20 to 50°C), RH ≤90% non-condensing, HVAC Interface Module: -40 to 122°F (-40 to 50°C), RH ≤90% non-condensing, outdoor use requires
Environmental—Do not use in presence of ammonia such as animal barns.
Power supply—21 to 30 V (ac), 6 VA, Class 2
Relays—30 V (ac), 2 A, Class 2 circuits
Humidity sensor—0 to 90% +/-4% RH
RH output—3.3 V (dc) humidity sensor power, 3.0 mA maximum
Temperature sensor—NTC thermistor, 10 k¦ @ 77°F (25°C ±0.2°C) ß=3892
Optional sensors—tekmar type # 070, 072, 073, 076, 077, 079, 084, 086, 087
Communications—WiFi 802.11n, 2.4 GHz, WPA2 encryption
Mobile app—Apple iOS 11 or higher, Android 5 or higher
Languages—English/Frances/Espanol
Warranty—Limited 3 Year Warranty
