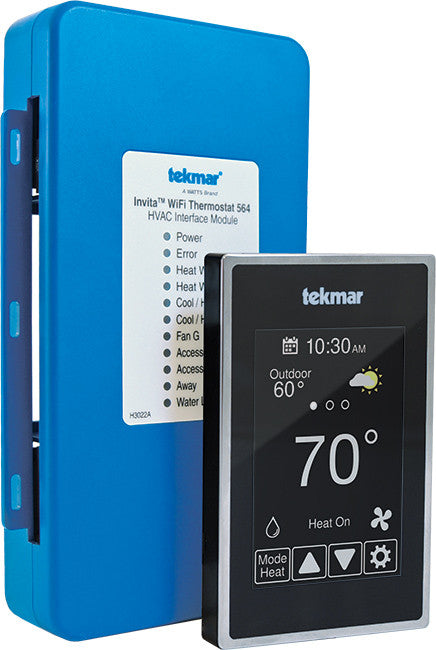

Tekmar 564B Invita Wifi Thermostat Black
Tekmar 564B Invita Wifi Thermostat Black
No reviews
Regular price
$226.40 USD
Regular price
Sale price
$226.40 USD
Unit price
/
per
Tekmar 564B Invita Wifi Thermostat 2 Stage Heat/2 Stage Cool, Black
Away savings mode
Energy monitoring
Mobile and web app
Multiple display colors
- Notifies of water leak with connection to Watts FloodSafe® Water Detector Shutoff
Outdoor temperature
Programmable schedule with early start
Relative humidity control
Slim profile
Ventilation
Warning email notifications
Weather
Specifications
| Packaged weight | 1.3 lb. (600 g) |
| Dimensions | Display: 4-1/2" H x 2-3/4" W x 9/16" D (114 x 70 x 14 mm), HVAC Interface Module: 7-7/16" H x 4-7/16" W x 1-1/4" D (112 x 56 x 31 mm) |
| Display | 3.5" color touchscreen |
| Enclosure | Display: Black PVC plastic, NEMA type 1, HVAC Interface Module: Blue PVC plastic, NEMA type 1 |
| Approvals | Meets Class B: ICES-003 & FCC Part 15B |
| Ambient conditions | Display: Indoor use only, -4 to 122°F (-20 to 50°C), RH ≤90% non-condensing, HVAC Interface Module: -40 to 122°F (-40 to 50°C), RH ≤90% non-condensing, outdoor use requires |
| Environmental | Do not use in presence of ammonia such as animal barns. |
| Power supply | 21 to 30 V (ac), 6 VA, Class 2 |
| Relays | 30 V (ac), 2 A, Class 2 circuits |
| Humidity sensor | 0 to 90% +/-4% RH |
| RH output | 3.3 V (dc) humidity sensor power, 3.0 mA maximum |
| Temperature sensor | NTC thermistor, 10¦ @ 77°F (25°C ±0.2°C) ß=3892 |
| Optional sensors | tekmar type # 070, 072, 073, 076, 077, 079, 084, 086, 087 |
| Communications | WiFi 802.11n, 2.4 GHz, WPA2 encryption |
| Mobile app | Apple iOS 11 or higher, Android 5 or higher |
| Languages | English/Franais/Espanol |
| Warranty | Limited 3 Year Warranty |
