Testo 310 Flue Gas Combustion Analyzer O2 CO CO2 0563 3100

Testo 310 Flue Gas Combustion Analyzer O2 CO CO2 0563 3100

$781.69 USD
$781.69 USD
Sale Sold out

The testo 310 residential combustion analyzer represents a new class of instruments for Testo and provides exceptional value and expanded capabilities in combustion testing.

The 310 sets a new standard in reliable combustion tuning with its rugged housing, simple design and advanced sensor technology.

The easy-to-read backlit display shows more measurements which provides a more complete picture of the combustion process. Simple top-of-display icons show you the current measurement functions. After only 30 seconds the 310 is ready to test.

Fully featured - for better testing and tuning
  • O2, CO (w/ NOx filters standard), CO2
  • Draft & Pressure
  • Temperature (flue & ambient)
  • Combustion efficiency & excess air
  • Undiluted CO (CO air free)
  • Ambient CO
Simple to use with reliable results
The testo 310 eliminates the need for look up charts and the purchase and disposal of expensive chemicals. The kink-resistant hose is integrated into the housing to eliminate leaks. The stainless steel probe and cone-stop is perfect for residential furnace, boiler and water heater applications. With six different fuels to select from, it provides the flexibility you need for your tuning opportunities.

Faster, productive - tune ups, maintenance, and more...

Whether you need to perform basic or more complex combustion tuning, perform maintenance or safety checks, or install new combustion units, the fully featured testo 310 delivers more combustion parameters. Use the 310 for accurate heating adjustment so you can get it right the first time - every time.

  • Rugged by design - The testo 310 can stand up to the toughest job site
  • Bright backlit display - Five-line backlit display with two-line readout and easy-to-navigate menu structure
  • 30 seconds to start - Start testing faster - in only 30 seconds
  • 10 hour battery life - Work all day with lithium rechargeable battery technology
  • Quick exchange probe filter - Protect the instrument’s measurement accuracy with replacement filters
  • Powerful magnets - Powerful magnets on the 310’s housing allows for hands-free operation
  • Condensate trap - Quick and easy emptying of the integrated condensate trap
  • Wireless printer with integrated magnets - For professional job site documentation

    testo 310 Specifications
    Parameter
    		 Measuring range
    		 Accuracy
    O2
    		 0 to 21.0 vol.%
    		 ±0.2 vol.%
    CO (w/ NOx filter)
    		 0 to 4000 ppm
    		 ±20 ppm (0 to 400 ppm)
    ±1.5% of reading (401 to 2000 ppm)
    ±10% of reading (2001 to 4000 ppm)
    Ambient CO
    		 0 to 4000 ppm
    		 ±20 ppm (0 to 400 ppm)
    ±1.5% of reading (401 to 2000 ppm)
    ±20% of reading (2001 to 4000 ppm)
    Temperature
    - Combustion

    - Ambient
    		 32° to 752 °F
    (0° to 400 °C)

    -4° to 212 °F
    (20° to 100 °C)
    		 ±2 °F (32° - 212 °F)
    ±1.5% of reading (>100 °F)

    ±2 °F
    Draft
    		 -8 to +8 "H2O
    		 ±0.01 "H2O
    ±1.5% of rdg. (remaining range)
    Pressure
    		 -16 to +16 "H2O
    		 ±0.2 "H2O
    CO2
    		 0 - CO2 max
    		 calculated
    Efficiency
    		 0 - 100%
    		 calculated
    Excess Air (EXA)
    		 0 - 100%
    		 calculated
    CO Undiluted
    (U CO) or
    (CO Airfree)
    		 0 - 4000 ppm

    		 calculated
    Selectable fuels
    		 natural gas; propane; fuel oil 2; bio heat 5;
    wood (w/ 20% moisture)
    Warranty
    		 24 mos. - instrument, sensors, probe
    12 mos. - thermocouple, rechargeable battery
    Power 10 hour - Lithium Ion - rechargeable
    Size/Weight 7.9 x 3.2 x 1.7 in./approx. 1.5 lbs.
    Storage Temp. -4° to 122 °F
    Operating Temp. 23° to 113 °F

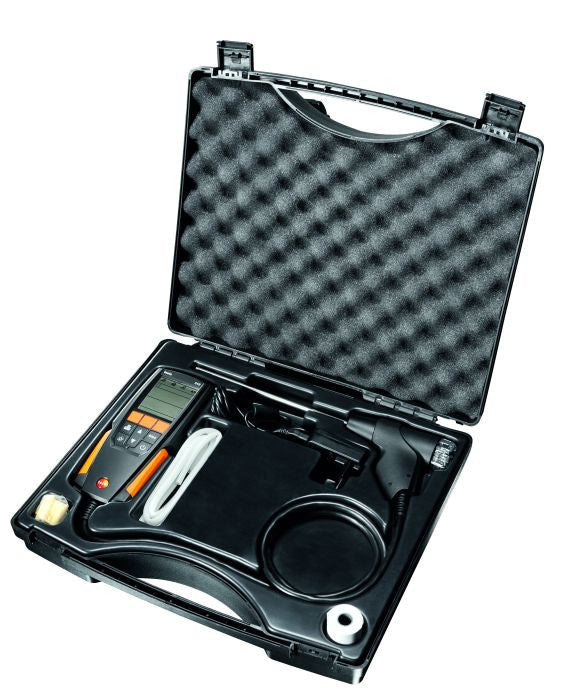

    • Includes:

    • 310 Analyzer
    • Battery
    • Sensors
    • Probe w/ cone
    • Hose
    • Case
    • Silicon tubing (for pressure)
    • Extra particulate filters (5)
    • AC power supply (USB)
    • Pressure plugs (5)
    • Calibration certificate
