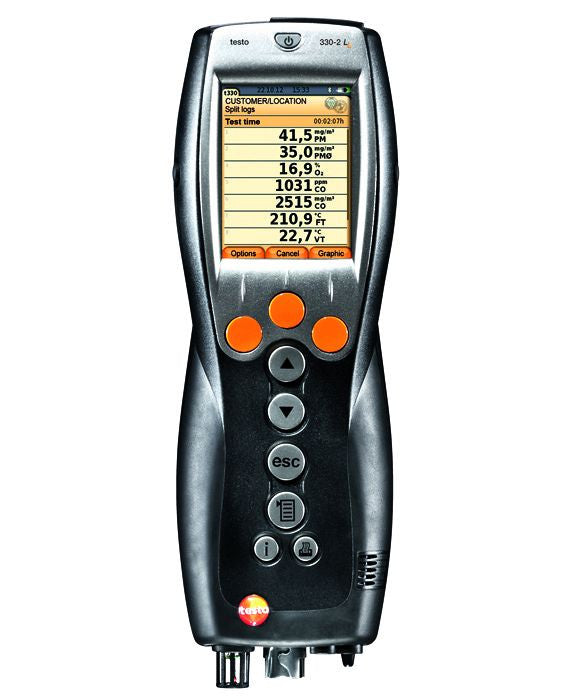

Testo 330-2 LL Combustion Analyzer Kit 400563 3372

Testo 330-2 LL Combustion Analyzer Kit 400563 3372

$3,577.00 USD
$3,577.00 USD
Sale Sold out

testo 330-2G LL Kit 2 - Industrial combustion analyzer with NOX


  • NO sensor included

  • Intuitive graphic display

  • Flue gas analyzer with on-board self-diagnostics

  • Long life sensors (up to six years) with over-range protection

The testo 330-2G LL Kit 2 combustion analyzer includes sensors to measure O2, CO, and NO, for maximum combustion efficiency. In addition this flue gas analyzer measures boiler combustion analysis of temperature, pressure and other required combustion efficiency parameters.

Product Description

For commercial and industrial boiler combustion analysis, the testo 330-2G LL Kit 2 combustion analyzer is properly outfitted NO sensor to calculate NOX, high range CO, sensor protection, large memory for maintaining service records, and on-site printing capability. The testo 330-2G LL combustion analyzer has the longest sensor warranty on the market – 4 years!. Rugged construction and high quality sensors provide years of combustion efficiency reliability and very low cost-of-ownership.
  • Calculates NOX
  • Over-range sensor protection
  • Built-on dilution systems allows for CO readings to 30,000ppm
  • On board self-diagnostics and service tracking
  • Efficient "in the green" or "in the red" display results allow for fine tuning the combustion process
  • Optional probes for hi-temp, gas leak, ambient CO and more
  • Memory up to 500,000 readings
  • Calculates CO2, efficiency, excess air, CO air free
For testing solid fuel combustion during start up and shut down, use solid fuel adapter set 0600 9765.

Delivery Scope

330-2G LL Kit 2 combustion analyzer with O2, CO, and NO, 12” flue gas probe, spare filters, AC power supply, case, Li-Ion battery, charger, and case

Differential Pressure

Measuring range

0 to 120 InHâ‚‚O / 0 to 300 hPa

Accuracy

±0.2 InH₂O (0.0 to 20.0 InH₂O) / ±0.5 hPa (0.0 to 50.0 hPa)

±1 % of mv (20.0 to 40.0 InH₂O) / ±1 % of mv (50.1 to 100.0 hPa)

±1.5 % of mv (Remaining Range)

Resolution

0.1 InHâ‚‚O / 0.1 hPa
Flue gas Oâ‚‚

Measuring range

0 to 21 Vol.%

Accuracy

±0.2 Vol.%

Resolution

0.1 Vol.%

Reaction time t₉₀

< 20 sec
Flue gas CO

Measuring range

0 to 8000 ppm

Accuracy
