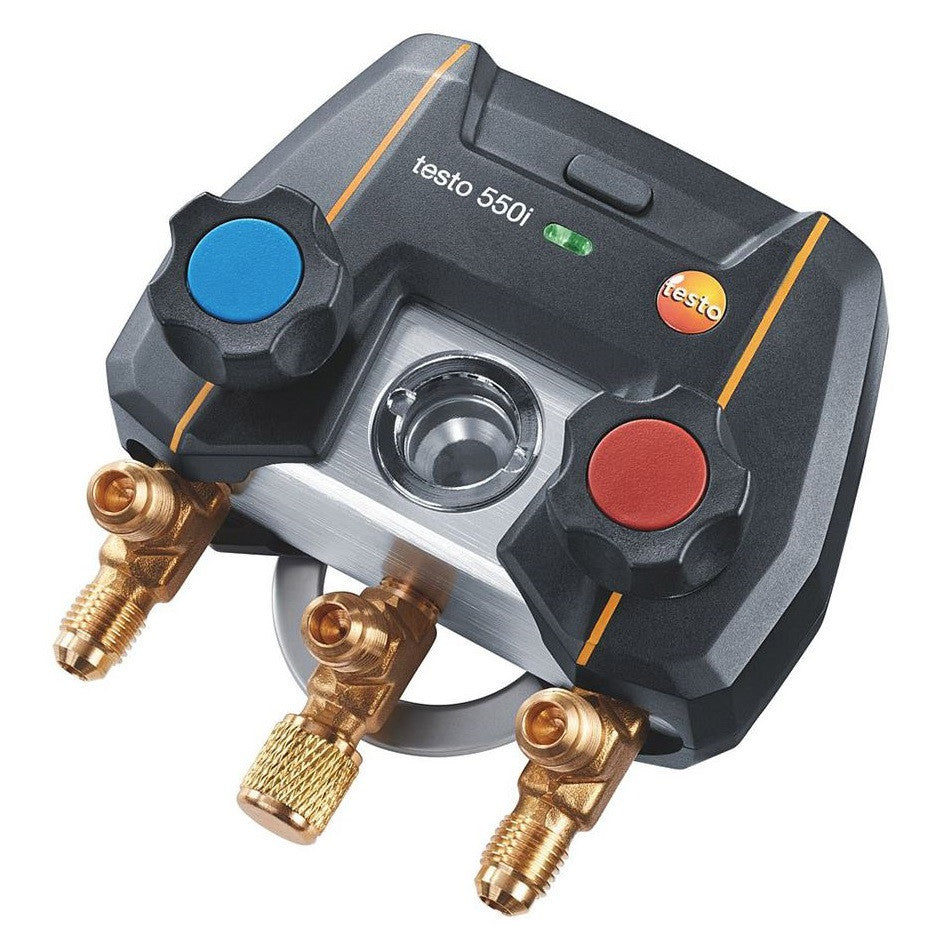

Testo 550i App Operated Manifold
Testo 550i App Operated Manifold
No reviews
Regular price
$304.85 USD
Regular price
Sale price
$304.85 USD
Unit price
/
per
Testo 550i App Operated Manifold
From the measurement itself through to the documentation – thanks to the app, you can have your everyday servicing and maintenance work on your smartphone or tablet. The testo 550i digital manifold is equipped with Bluetooth, 2-way valve block and a sturdy hook, and can be fully controlled via app and smartphone or tablet – for flexible, fast measurements and digital documentation.
- All activities, from measurement through to documentation, using the testo Smart App on your Smartphone
- The smallest digital manifold on the market
- Maximum reliability thanks to the extremely rugged housing with IP54 protection class
- Optional expandibility with testo Smart Probes for temperature, humidity and vacuum
The testo 550i app-controlled digital manifold with Bluetooth ®, 2-way valve block and sturdy hook offers extensive measurement technology in an exceptionally compact format. Use this extremely robust manifold to carry out your everyday work on refrigeration and air conditioning systems and heat pumps wirelessly, with ease and reliability. All using the testo Smart App on your smartphone or tablet.
Measuring range
Genertal Technical Data
Weight
20.99 oz. / 595 g
Dimensions
3.03 x 4.29 x 2.48 in. / 77 x 109 x 63 mm
Operating temperature
14° to 122 °F / -10 to +50 °C
Protection class
IP54
System requirements
requires iOS 12.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product color
Black
Auto-off
10 min (when not connected via Bluetooth)
Battery type
3 x AAA
Battery life
130 h
Data transfer
Bluetooth®
Radio range
492.12 ft. / 150 m
Refrigerants in instrument
R407H; R23; R290; R1234yf; R442A; R134a; R123; R452B; R438A; R421A; R453a; R401B; R1233zd; R410A; R407A; R407C; R452A; R401A; R422C; R427A; R422B; R424A; R125; R414B; R404A; R408A; R448A; R422D; R12; R114; R421B; R449A; R409A; R420A; R444B; R32; R454A; R124; R402A; R450A; R407F; R416A; R13; R437A; R1234ze; R454B; R402B; R22; R434A; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (Hâ‚‚O); R744 (COâ‚‚)
Refrigerants update via App
R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; Ra11A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Storage temperature
-4° to 140 °F / -20 to +60 °C
Pressure measurement
Measuring range
-15 to 870 psi / -1 to 60 bar
Accuracy
±0.5 % Fs
Resolution
0.14 psi / 0.01 bar
Probe connection
3 x 7/16" – UNF
Overload rel. (high pressure)
943 psi / 65 bar
