Testo 550i App Operated Manifold, Wireless Temp Probes and Case
Testo 550i App Operated Manifold, Wireless Temp Probes and Case
Testo 550i App Operated Manifold, Wireless Temp Probes and Case

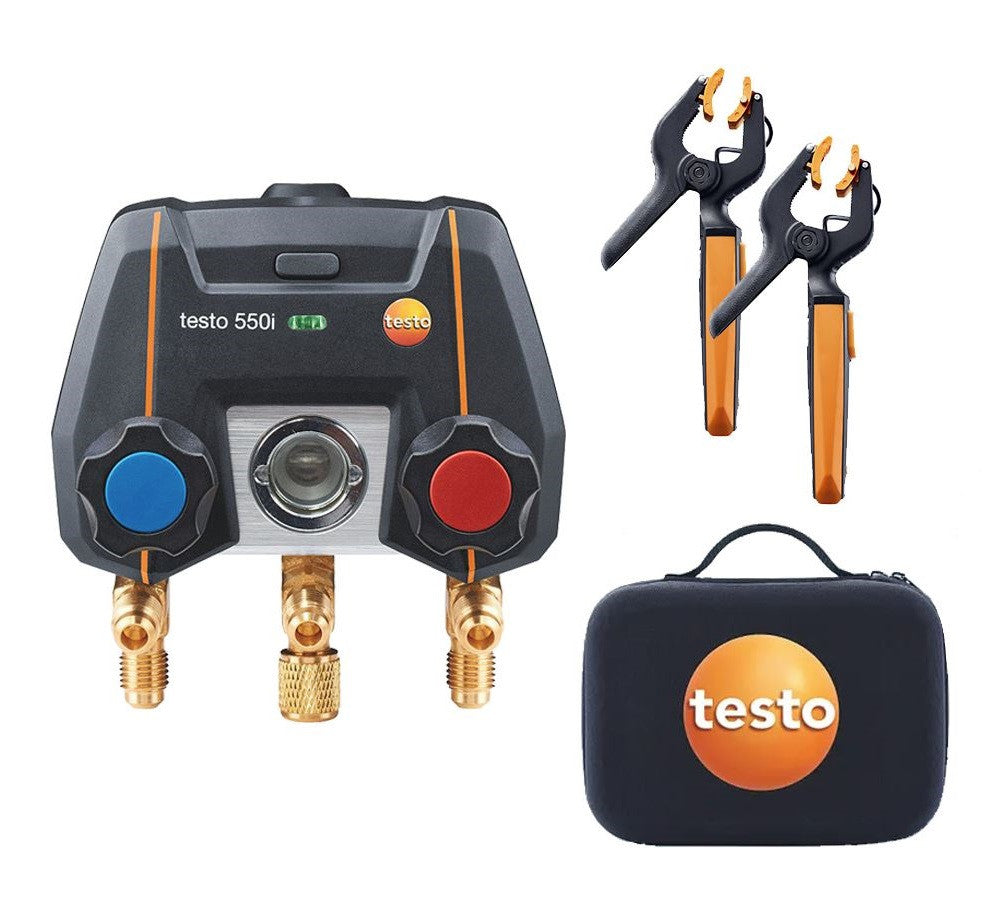

The kit for app-controlled, wireless measurements and digital documentation on your smartphone. You will get the testo 550i app-controlled digital manifold with Bluetooth, 2-way valve block and sturdy hook, two testo 115i wireless clamp thermometers (Bluetooth, NTC) and a rugged transport case. For other wireless measurements, the optional Testo Smart Probes for temperature, humidity and vacuum are the perfect addition. You’ll be ideally equipped to carry out your measuring tasks on refrigeration and air conditioning systems and also heat pumps.
- All activities, from measurement through to documentation, using the App on your Smartphone
- The smallest digital manifold on the market
- Maximum reliability and excellent flexibility: extremely rugged housing with protection class IP54, optionally expandable with the wireless testo Smart Probes for temperature, humidity and vacuum
- In the kit: App-controlled testo 550i digital manifold with Bluetooth® and 2-way valve block, 2 x testo 115i wireless clamp temperature probes (Bluetooth, NTC), case
Weight
20.99 oz. / 595 g
Dimensions
3.03 x 4.29 x 2.48 in. / 77 x 109 x 63 mm
Operating temperature
14° to 122 °F / -10 to +50 °C
Protection class
IP54
System requirements
requires iOS 12.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product color
Black
Auto-off
10 min (when not connected via Bluetooth)
Battery type
3 x AAA
Battery life
130 h
Data transfer
Bluetooth®
Radio range
492.12 ft. / 150 m
Refrigerants in instrument
R407H; R23; R290; R1234yf; R442A; R134a; R123; R452B; R438A; R421A; R453a; R401B; R1233zd; R410A; R407A; R407C; R452A; R401A; R422C; R427A; R422B; R424A; R125; R414B; R404A; R408A; R448A; R422D; R12; R114; R421B; R449A; R409A; R420A; R444B; R32; R454A; R124; R402A; R450A; R407F; R416A; R13; R437A; R1234ze; R454B; R402B; R22; R434A; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (Hâ‚‚O); R744 (COâ‚‚)
Refrigerants update via App
R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; Ra11A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Storage temperature
-4° to 140 °F / -20 to +60 °C
Pressure measurement
Measuring range
-15 to 870 psi / -1 to 60 bar
Accuracy
±0.5 % Fs
Resolution
0.14 psi / 0.01 bar
Probe connection
3 x 7/16" – UNF
Overload rel. (high pressure)
943 psi / 65 bar
