Testo 550s Smart Digital Manifold, Wireless Vacuum and Temp Probes, Hoses, Case
Testo 550s Smart Digital Manifold, Wireless Vacuum and Temp Probes, Hoses, Case
No reviews
Regular price
$754.39 USD
Regular price
Sale price
$754.39 USD
Unit price
/
per

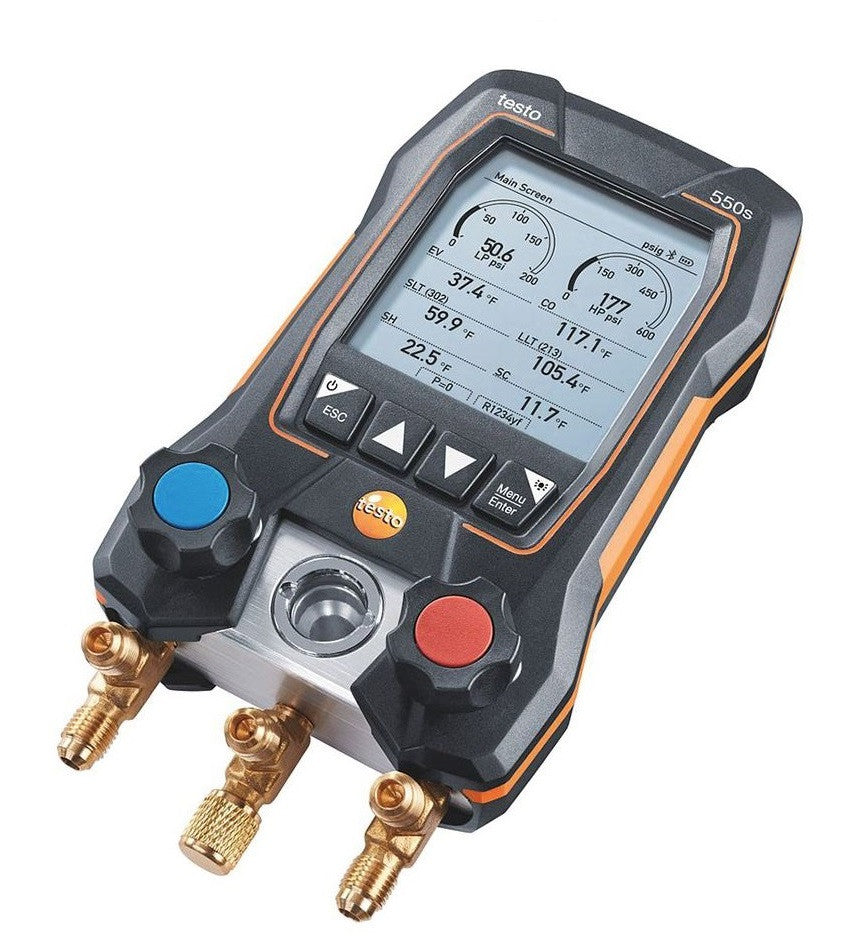

Testo 550s Smart Digital Manifold, Wireless Vacuum and Temp Probes, Hoses, Case
The kit for wireless measurements in the field of commissioning, servicing and maintenance of refrigeration and air conditioning systems and heat pumps: You will get the testo 550s smart digital manifold with Bluetooth and 2-way valve block, two testo 115i wireless clamp thermometers (Bluetooth, NTC) and a rugged transport case. Additional Bluetooth probes, e.g. for wireless, hose-free vacuum measurements with the testo 552i, are available separately.
- All results at a glance thanks to the large graphic display
- Exceptionally compact and reliable thanks to the easy-to-handle, rugged housing with IP 54 protection class
- Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth® connection, testo Smart App for documentation and lots more

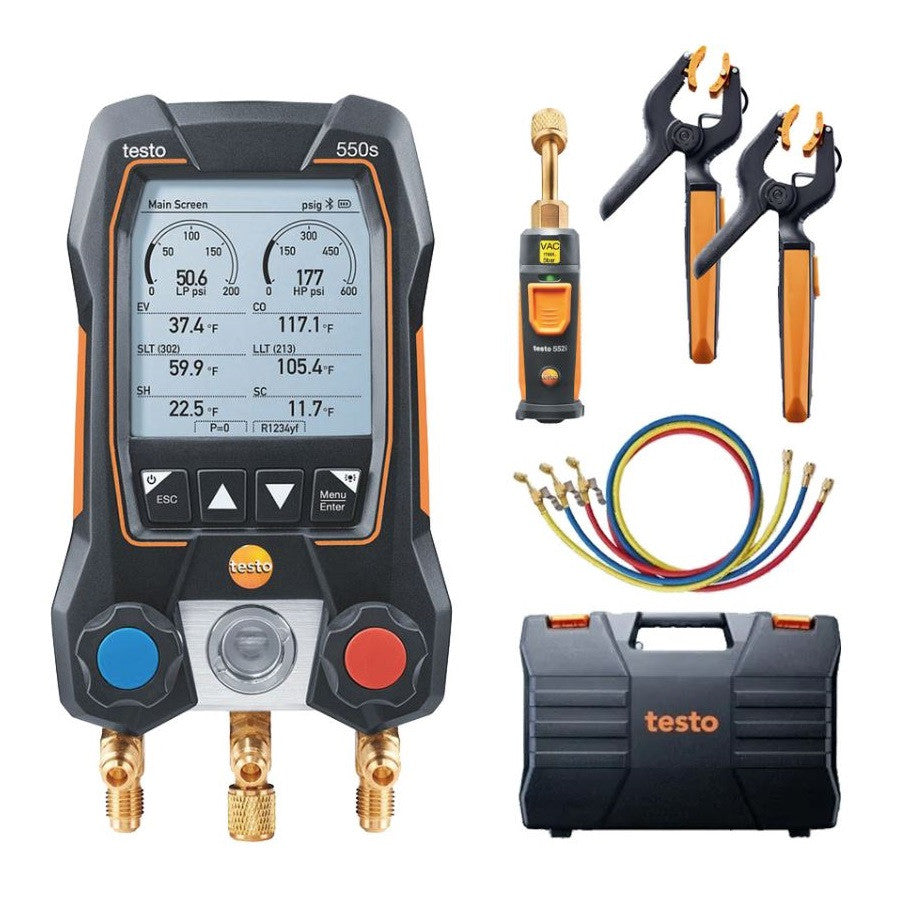

- In the kit: testo 550s smart digital manifold with Bluetooth and 2-way valve block, 2 x testo 115i wireless clamp temperature probes (Bluetooth, NTC), case
Manifold-Technical Data
Temperature
Measuring range
-58° to 302 °F / -50 to +150 °C
Accuracy
±0.9 °F / ±0.5 °C
Resolution
0.1 °F / 0.1 °C
Probe connection
2 x plug-in (NTC)
Pressure measurement
Measuring range
-15 to 870 psi / -1 to 60 bar
Accuracy
±0.5 % Fs
Resolution
0.14 psi / 0.01 bar
Probe connection
3 x 7/16" – UNF
Overload rel. (high pressure)
943 psi / 65 bar
General technical data
Weight
29.14 oz. / 826 g
Dimensions
8.27 x 4.76 x 2.36 in. / 210 x 121 x 60 mm (LxWxH)
Operating temperature
-4° to 122 °F / -20 to +50 °C
Protection class
IP54
System requirements
requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product color
Black
Auto-off
10 min (when not connected via Bluetooth)
Battery type
4 x AA batteries
Battery life
250 h with no illumination, no Bluetooth®; 100 h with illumination and Bluetooth®
Data transfer
Bluetooth®
Radio range
492.12 ft. / 150 m
Refrigerants in instrument
R407H; R23; R290; R1234yf; R442A; R134a; R123; R452B; R438A; R421A; R453a; R401B; R1233zd; R410A; R407A; R407C; R452A; R401A; R422C; R427A; R422B; R424A; R125; R414B; R404A; R408A; R448A; R422D; R12; R114; R421B; R449A; R409A; R420A; R444B; R32; R454A; R124; R402A; R450A; R407F; R416A; R13; R437A; R1234ze; R454B; R402B; R22; R434A; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (Hâ‚‚O); R744 (COâ‚‚)
Refrigerants update via App
R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; Ra11A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Storage temperature
-4° to 140 °F / -20 to +60 °C
