Testo 557s Smart Digital Manifold, Wireless Temp and Vacuum Probes and Case
Testo 557s Smart Digital Manifold, Wireless Temp and Vacuum Probes and Case
No reviews
Regular price
$723.45 USD
Regular price
Sale price
$723.45 USD
Unit price
/
per

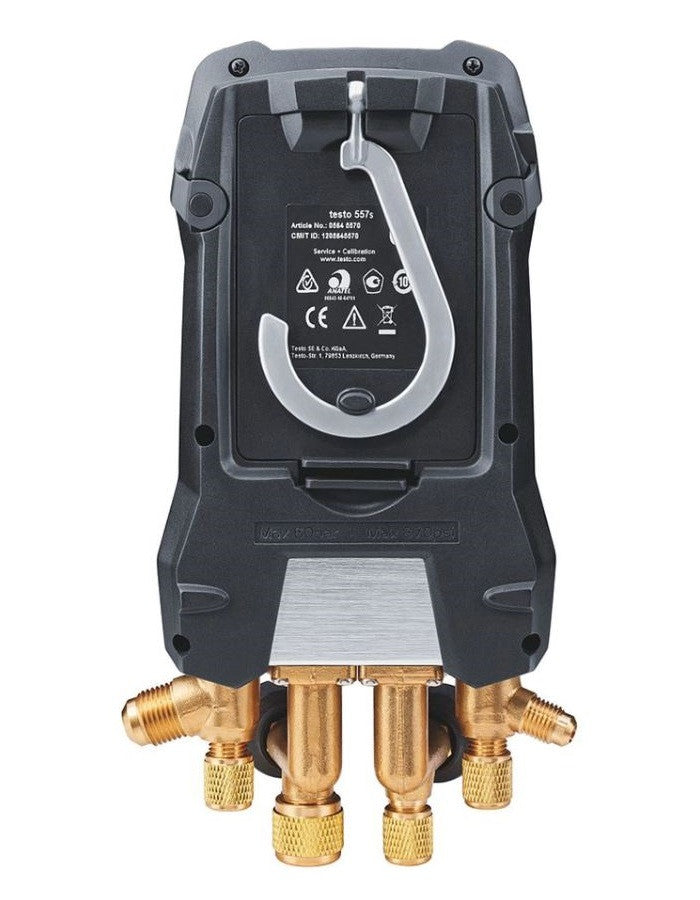

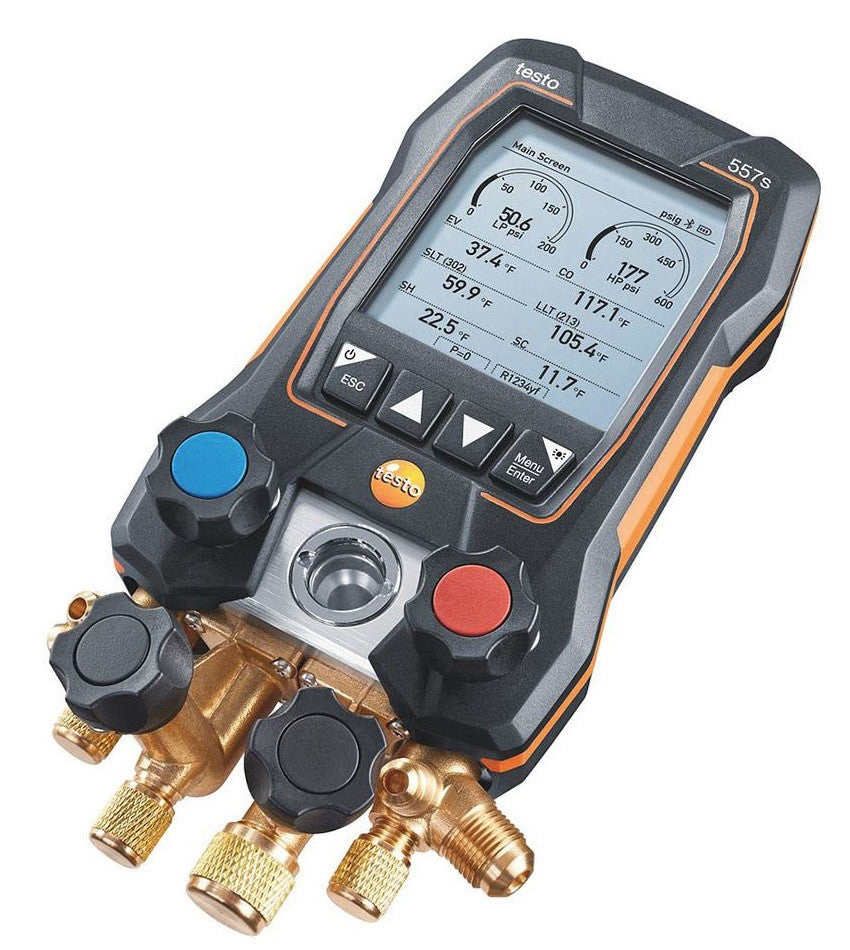

Testo 557s Smart Digital Manifold, Wireless Temp and Vacuum Probes and Case
Start your wireless measurements on refrigeration and air conditioning systems and heat pumps straight away. Thanks to the Bluetooth vacuum probe supplied, you can even measure vacuum without any cables or hoses. You will get the testo 557s smart digital manifold with Bluetooth and 4-way valve block, one testo 552i wireless vacuum probe (Bluetooth), two testo 115i wireless clamp thermometers (Bluetooth, NTC) and a robust transport case. For other wireless measurements, other optionally available testo Smart Probes are also ideal.
- Completely wireless measurements and all results at a glance: thanks to Bluetooth probes and large graphic display
- Exceptionally compact and reliable thanks to the easy-to-handle, rugged housing with IP 54 protection class
- Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth® connection, testo Smart App for documentation and lots more

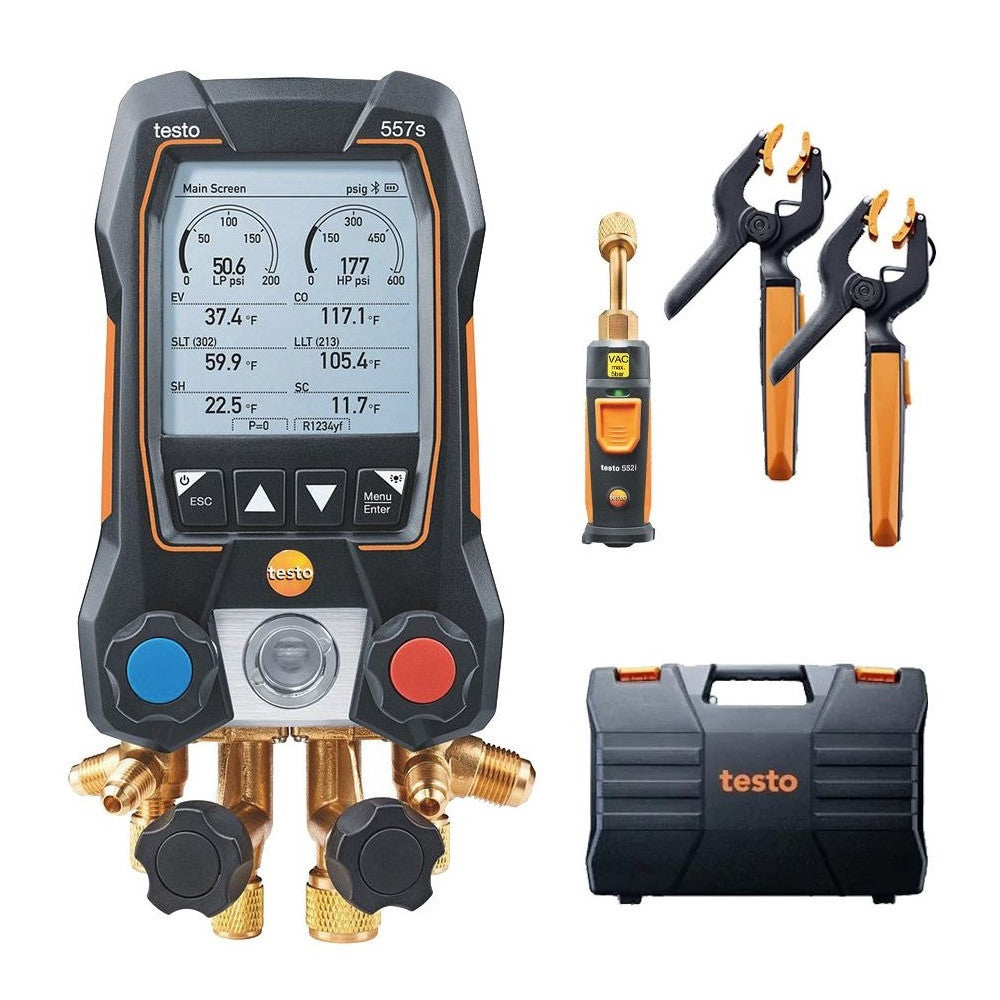

- In the kit: testo 557s smart digital manifold with Bluetooth and 4-way valve block, 1 x testo 552i wireless vacuum probe (Bluetooth), 2 x testo 115i wireless clamp temperature probes (Bluetooth, NTC), case
Manifold-Technical Data
Temperature
Measuring range
-58° to 302 °F / -50 to +150 °C
Accuracy
±0.9 °F / ±0.5 °C
Resolution
0.1 °F / 0.1 °C
Probe connection
2 x Plug-in (NTC)
Pressure measurement
Measuring range
-15 to 870 psi / -1 to 60 bar
Accuracy
±0.5 % Fs
Resolution
0.14 psi / 0.01 bar
Probe connection
3 x 7/16" – UNF + 1 x 5/8'' – UNF
Overload rel. (high pressure)
943 psi / 65 bar
General technical data
Weight
44 oz. / 1243 g
Dimensions
9 x 4.4 x 3 in. (LxWxH) / 229 x 112.5 x 71 mm (LxWxH)
Operating temperature
-4° to 122 °F / -20 to +50 °C
Protection class
IP54
Product color
Black
Auto-off
10 min (when not connected via Bluetooth)
Battery type
4 x AA batteries
Battery life
250 h with no illumination, no Bluetooth®h (without illumination, without Bluetooth®, without vacuum probe); 100 h with illumination and Bluetooth®
Radio range
492.12 ft. / 150 m
Pressure media
CFC
Refrigerants in instrument
R1234yf; R744 (COâ‚‚); R437A; R503; R452A; R500; R114; R444B; R407H; R422B; R434A; R410A; R290; R449A; R401B; R407F; R13; R123; R718 (Hâ‚‚O); R404A; R125; R416A; R421B; R422C; R448A; R22; R407A; R409A; R12; R454B; R414B; R442A; R1233zd; R420A; R424A; R458A; R427A; R450A; R124; R502; R1234ze; R600a; R23; R402B; R455A; R454A; R407C; R453a; R513A; R401A; R422D; R402A; R507; R454C; R408A; R421A; R134a; R32; R452B; R438A
System requirements
requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Refrigerants update via App
R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; Ra11A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Storage temperature
-4° to 140 °F / -20 to +60 °C
