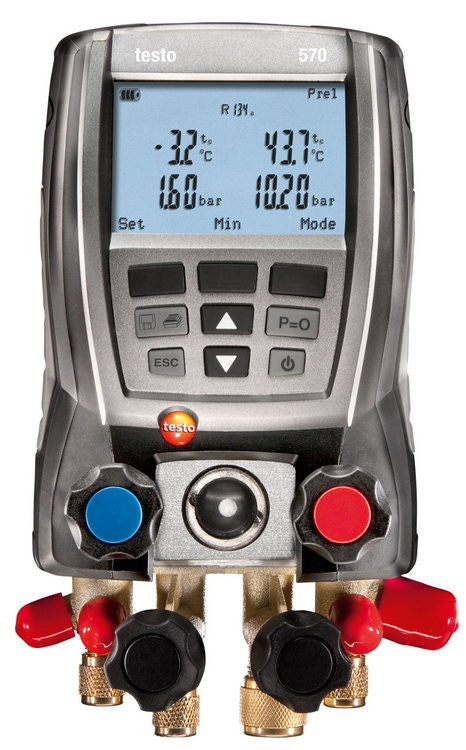

Testo 570 Refrigeration System Analyzer Kit 0563 5703

Testo 570 Refrigeration System Analyzer Kit 0563 5703

$905.45 USD
$905.45 USD
Sale Sold out

A robust, digital refrigeration system analyzer, with a 4-way valve block, that€™s ideal for installing and troubleshooting all types of refrigeration, heat pumps and AC systems. Use it daily for calculating superheat and sub cooling simultaneously, in real time, with two external temperature probes. During heat pump mode the 570 saves you time by automatically switching over the high and low side pressure and temperature without having to change the hoses.

For long term or multiple measuring cycles the 570 can be programmed and left to automatically collect and store data for up to 72 hours. This internal memory gives the technician the ability to accurately diagnosis system errors that could easily have been missed in a manual process. Use testo€™s easyKool software, exclusive to testo RSA€™s, for complete data management, provie dingonsite reports to customers, and printing and displaying measuring results.

Features:

  • Four-way valve block with four connections, four hose parkers and sight glass
  • Simultaneous superheating and subcooling calculations in real-time using two external temperature probes
  • Integrated vacuum measurement to support system evacuation
  • Temperature-compensated leak testing
  • Heat pump mode
  • Three temperature probe connections
  • Newly updated EasyKool software
  • 40 refrigerant profiles stored in instrument
  • Record up to 72 hours of measurement values

Specifications:

Pressure psi /kPa / MPa/ bar
Temperature °F / °C / K
Vacuum psi / hPa / mbar / Torr / in H2O / Micron / in Hg / Pa / bar
SENSORS:
Pressure 2 x pressure sensors
Temperature 3 x NTC
Interfaces 3 x Mini-DIN, 1x Mini USB, 1x IR
MEASURING RANGES:
Pressure HP/LP (rel) 0 to 725 psi; -100 to 5000 kPa;
-0.1 to 5 MPa; -1 to 50 bar
Temperature -58° to 302°F
Vacuum (rel) -14.5 to 0 psi
Overload pressure 754 psi; 52 bar
RESOLUTION:
Pressure 0.1 psi; 1 kPa; 0.001 MPa; 0.01 bar
Temperature 0.1 °F; 0.1 °C
Vacuum 1 hPa / 0.5 Torr/ 0.5 inH2O/ 100 Pa / 500 Micron / 1 mbar
ACCURACY (at 72°F):
Pressure

± 0.5 %fs
Temperature

± 1.0 °F
Vacuum

500 Micron / 1 hPa/ 0.5 Torr / 0.5 inH2O/ 100 Pa / 1 mbar
No. of refrigerants

40
Selectable refrigerants

R12, R22, R123, R134a, R227, R290, R401A, R401B, R402A, R402B, R404A, R406A, R407A, R407C, R408A, R409A, R410A, R411A, R413A, R414B, R416A, R417A, R420A, R421A, R421B, R422A, R422B, R422D, R424A, R427A, R434A, R437A, R438A, R502, R503, R507, R600, R600a, R744, R1234yf
Measurable media

CFC, HFC, N, H2O, CO2
Operating temperature

-4° to 122°F
Storage temperature

-4° to 140°F
Humidity application range

10 to 90% RH
HOUSING:

Material

IP Protection class: 42
Dimensions

11 x 5.25 x 3 inches
Weight

approx. 2.6 lb (without batteries)
IP-class

42
POWER SUPPLY:

Current source

4 x AA
Battery life

>40 hrs. (without backlight), 72°F
DISPLAY:

Type

Illuminated LCD display
Warranty Duration:

2 years

Â

Includes:

  • Testo 570 Digital Manifold (0560 5570)
  • Calibration Certificate
  • 2 Clamp Probes ntc (0613 55050
  • Hard Carrying Case (0516 5700)
  • USB Data Cable (0449Â 0047)
