TIF3340 4 Channel Differential Infrared Thermometer

TIF3340 4 Channel Differential Infrared Thermometer

$40.00 USD
$40.00 USD
Sale Sold out

Features:

  • 4 Channel Differential Thermometer.
  • Large, easy to read, backlit display shows T1, T2, T3, T4, and IR.
  • Use differential readings to display HVAC Superheat measurements.
  • MIN / MAX / AVG readings with DATA HOLD functionality to help pinpoint problems.
  • IR Temperature probe included to measure non-contact surface temperatures.
  • Includes four Type-k bead wire temperature probes for external temperature measurements.

Specifications:

Battery 9V
Operating Temperature 32°F to 122°F
(0°C to 50°C)
Noncondensing
Storage Temperature 14°F to 122°F
-10°C to 50°C
Temperature range K-type Thermocouples -328°F to 2501°F
-200°C to 1372°C
IR Temperature -22°F to 1022°F
-30°C to 550°C
Display resolution 0.1(°C€¢°F€¢K)<1000
1(°C€¢°F€¢K)>1000
Temperature accuracy
T1, T2, T3, T4 Above -148°F (-100°C) ± [0.15% rdg + 1.8°F (1°C)]
Below -148°F (-100°C) ± [0.5% rdg + 3.6°F (2°C)]
T1-T2, T3-T4 ± [0.5% rdg + 1.8°F (1°C)]
IR Above 14°F (-10°C) ± [2.0% rdg + 3.6°F (2°C)]
Bellow 14°F (-10°C) ± 9°F (5°C)
T1-IR & T2-IR Above 14°F (-10°C) ± [2.0% rdg + 5.4°F (3°C)]
Bellow 14°F (-10°C) ± 11°F (6°C)
T3-IR & T4-IR Above 14°F (-10°C) ± [2.0% rdg + 5.4°F (3°C)]
Bellow 14°F (-10°C) ± 11°F (6°C)

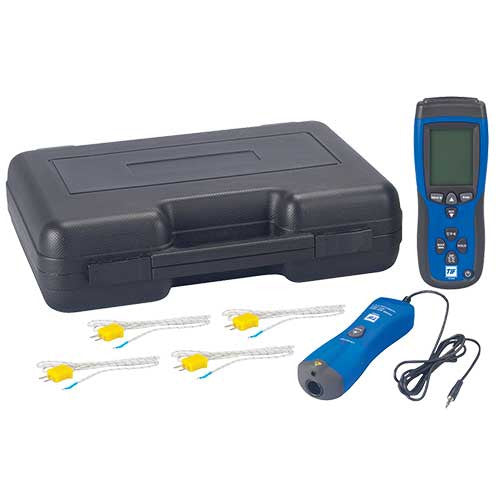

Includes:

  • TIF3340 Differential Thermometer and Infrared Thermometer
  • IR Temperature Probe
  • (4) K-Type Bead Wire Temperature Probes
  • Instruction Manual
