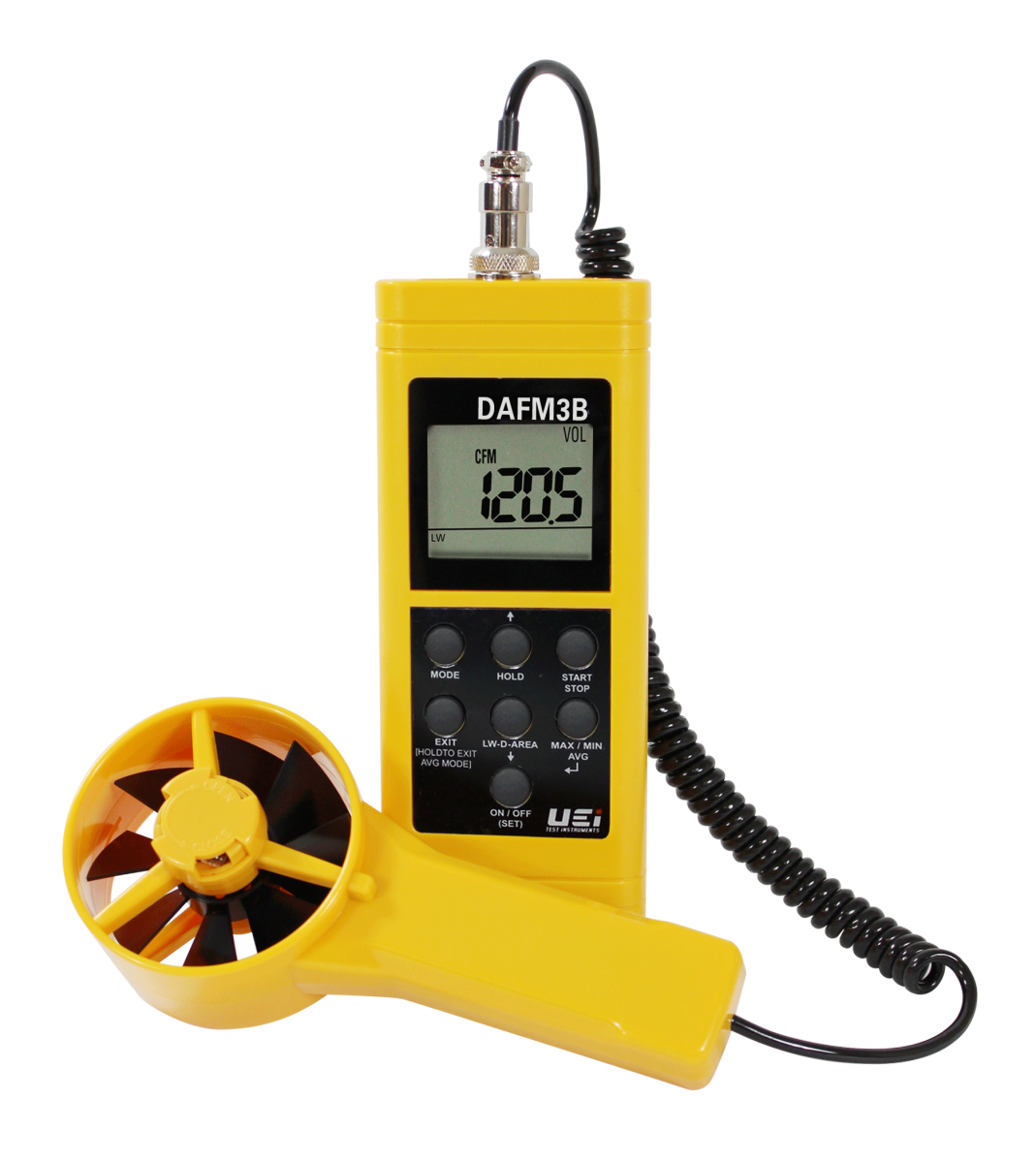

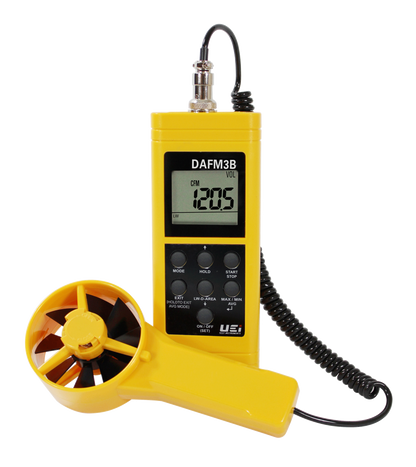

UEI DAFM3B Digital Air Flow Meter

The DAFM3B anemometer/psychrometer is designed with six HVAC/R essential parameters in one instrument. Conveniently combined into a portable, battery-operated instrument for measuring relative humidity, air temperature, dew point, wet bulb, air velocity and air volume

Features

• Measures air velocity, temperature and humidity
• Calculate wet bulb, dew point, and air volume (CFM, CMM)
• Up to 1 hour accumulative average
• Handheld size, easy to carry
• English / Metric scales
• Auto power off selectable
• Low battery indication
• Professional remote vane
• Protective twist cap for temperature/humidity sensor
• 1 year limited warranty

Specifications
Air Velocity Range: 99 ~ 3937 ft/min (0.5 ~ 20 m/s)
Air Velocity Resolution: 0.1 ft/min (0.1 m/s)
Air Velocity Accuracy: ±3% or reading + 39 ft/min (±3% or reading + 0.2 m/s)
Temperature Range: -4 ~ 140ºF (-20 ~ 60ºC)
Temperature Resolution: 0.1ºF (0.1ºC)
Temperature Accuracy: ±1.1ºF(-4 ~ 122ºF); ±2.2ºF at others (±0.6ºC(-20 ~ 50ºC); ±1.2ºC at others)
RH% Range: 0.1 ~ 99.9% RH
RH% Resolution: 0.1% RH
RH% Accuracy: ±3% RH at 77ºF(25ºC) and 10~90% RH; ±5% at others
Wet bulb range: -4~158ºF (-20~70ºC)
Wet bulb resolution: 0.1ºF (ºC)
Air volume display: 0~99999 CFM (m³/s)
Air volume resolution: 0.1 (0~9999.9), 1 (10000~99999)
LCD Size(H x W): 1.38 x 2.13 inches (35.2 x 54 mm)
Operating temperature range: 32~122ºF (0~50ºC)
Operating RH%: Less than 80% (handset)
Storage temperature range: -4~122ºF (-20~50ºC)
Storage RH%: Less than 90%
Dimension: 7.1 x 2.9 x 5 inches (180 x 73 x 13mm)
Weight: .37 lbs (170g)
Battery: 9V battery

Includes

• Hard carrying case (AC504)
• 9V battery
• Manual
